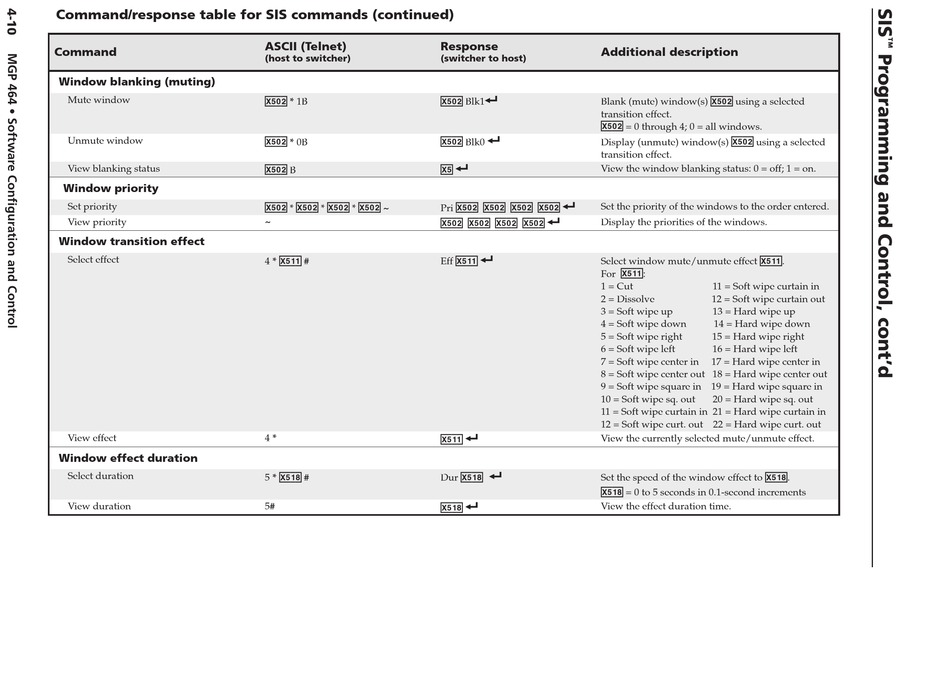

Command/response table for SIS commands (continued)
Command
Window blanking (muting)
Mute window
Unmute window
View blanking status
Window priority
Set priority
View priority
Window transition effect
Select effect
View effect
Window effect duration
Select duration
View duration
PRELIMINARY
ASCII (Telnet) Response
(host to switcher) (switcher to host)
X50@ X50@
* 1B
X50@ X50@
* 0B
X50@ X% ]
B
X50@ X50@ X50@ X50@
* * * ~ Pri
X50@ X50@ X50@ X50@ ]
~
X51!
4 * # Eff
X51! ]
4 *
X51*
5 * # Dur
X51* ]
5#
Additional description
]
Blk1 Blank (mute) window(s)
transition effect.
X50@
= 0 through 4; 0 = all windows.
]
Blk0 Display (unmute) window(s)
transition effect.
View the window blanking status: 0 = off; 1 = on.
X50@ X50@ X50@ X50@ ]
Set the priority of the windows to the order entered.
Display the priorities of the windows.
X51! ]
Select window mute/unmute effect
X51!
For
1 = Cut
2 = Dissolve
3 = Soft wipe up
4 = Soft wipe down
5 = Soft wipe right
6 = Soft wipe left
7 = Soft wipe center in
8 = Soft wipe center out 18 = Hard wipe center out
9 = Soft wipe square in 19 = Hard wipe square in
10 = Soft wipe sq. out
11 = Soft wipe curtain in 21 = Hard wipe curtain in
12 = Soft wipe curt. out 22 = Hard wipe curt. out
View the currently selected mute/unmute effect.
X51* ]
Set the speed of the window effect to
X51*
= 0 to 5 seconds in 0.1-second increments
View the effect duration time.
X50@
using a selected
X50@
using a selected
X51!
.
:
11 = Soft wipe curtain in
12 = Soft wipe curtain out
13 = Hard wipe up
14 = Hard wipe down
15 = Hard wipe right
16 = Hard wipe left
17 = Hard wipe center in
20 = Hard wipe sq. out
X51*
.
