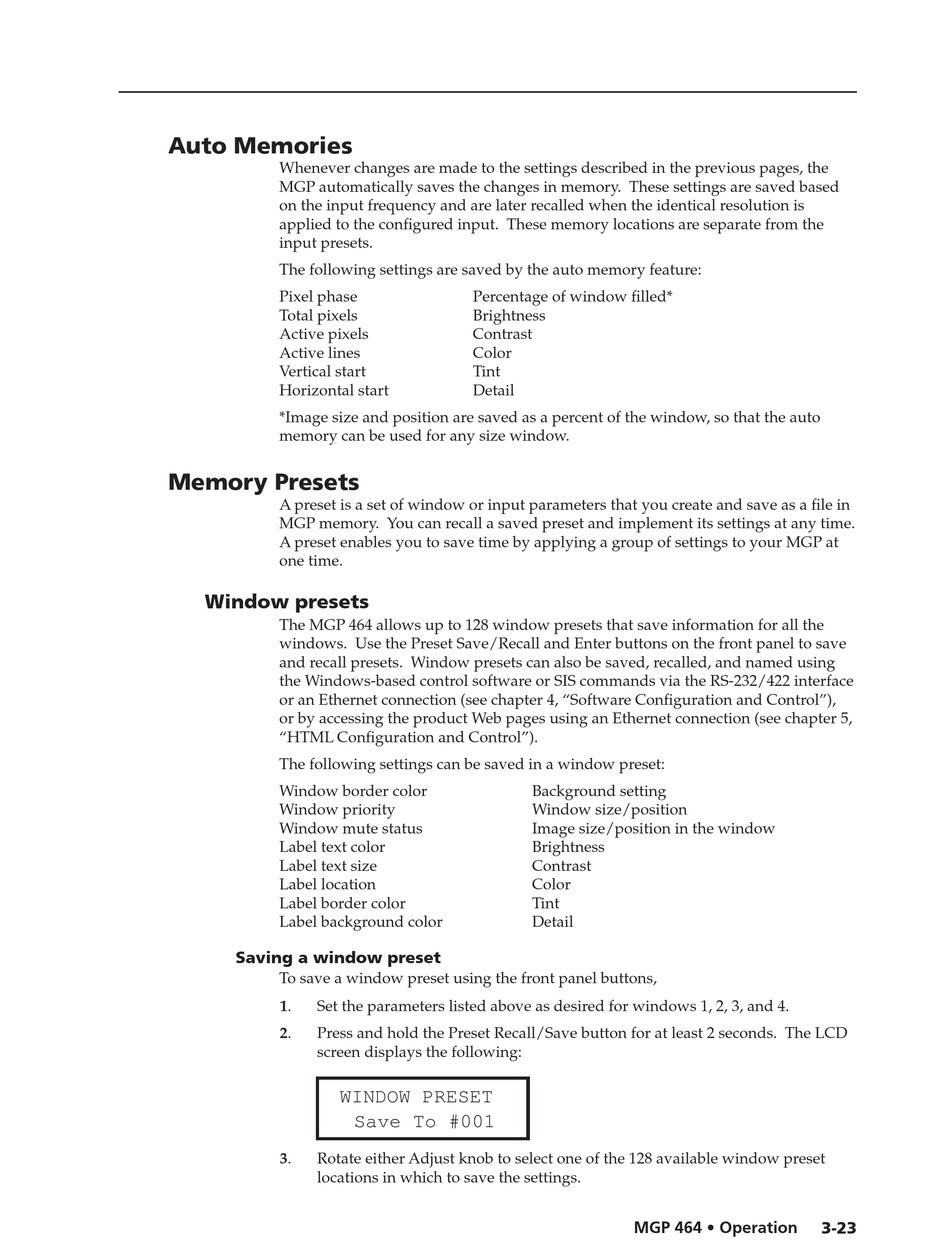

Auto Memories

Whenever changes are made to the settings described in the previous pages, the
MGP automatically saves the changes in memory. These settings are saved based
on the input frequency and are later recalled when the identical resolution is
applied to the configured input. These memory locations are separate from the
input presets.
The following settings are saved by the auto memory feature:
Pixel phase
Total pixels
Active pixels
Active lines
Vertical start
Horizontal start
*Image size and position are saved as a percent of the window, so that the auto
memory can be used for any size window.

Memory Presets

A preset is a set of window or input parameters that you create and save as a file in
MGP memory. You can recall a saved preset and implement its settings at any time.
A preset enables you to save time by applying a group of settings to your MGP at
one time.

Window presets

The MGP 464 allows up to 128 window presets that save information for all the
windows. Use the Preset Save/Recall and Enter buttons on the front panel to save
and recall presets. Window presets can also be saved, recalled, and named using
the Windows-based control software or SIS commands via the RS-232/422 interface
or an Ethernet connection (see chapter 4, "Software Configuration and Control"),
or by accessing the product Web pages using an Ethernet connection (see chapter 5,
"HTML Configuration and Control").
The following settings can be saved in a window preset:
Window border color
Window priority
Window mute status
Label text color
Label text size
Label location
Label border color
Label background color

Saving a window preset

To save a window preset using the front panel buttons,
-----Input1-----
Set the parameters listed above as desired for windows 1, 2, 3, and 4.
1.
2. Press and hold the Preset Recall/Save button for at least 2 seconds. The LCD
screen displays the following:
WINDOW PRESET
3. Rotate either Adjust knob to select one of the 128 available window preset
locations in which to save the settings.
WINDOW PRESET
Saving To #001
Percentage of window filled*
Brightness
Contrast
Color
Tint
Detail
Background setting
Window size/position
Image size/position in the window
Brightness
Contrast
Color
Tint
Detail
Save To #001
