Test pattern — You can select one of the test patterns shown on the next page to
adjust the display for color, convergence, focus, resolution, contrast, grayscale,
and aspect ratio.
Colorbars (8)
Ramp
x
4x3 4x3
Side-By-Side
(4x3 crop)
4 x 3
16x9
4 x 3
4 x 3
PIP Images
(16x9)

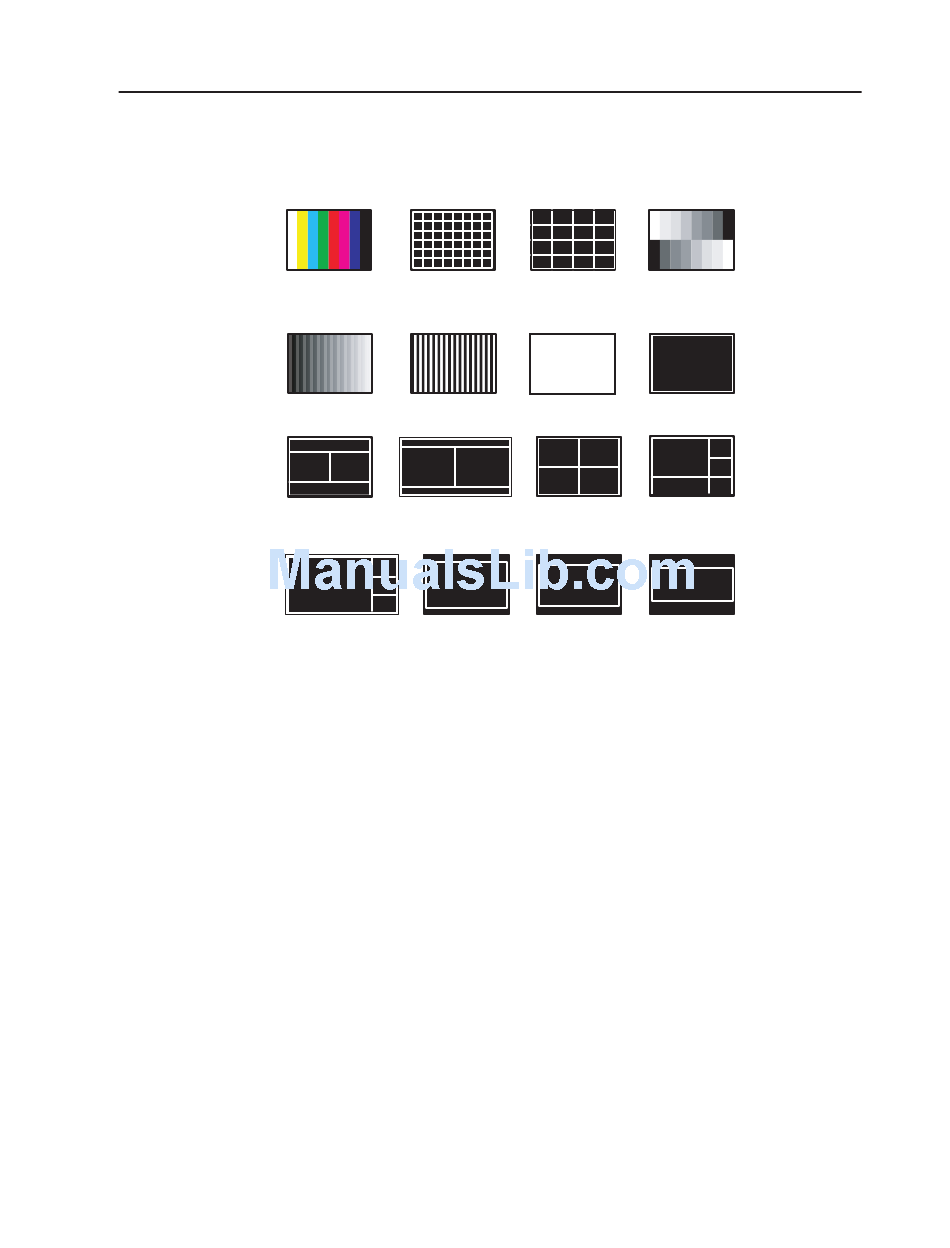

Test patterns available on the MGP 464

Enabling/disabling blue mode

In the Blue Screen Mode section, select the Off or On radio button to disable or
enable blue mode. When you enable blue mode, only the sync and blue video
signals are passed to the display. This helps in setting up the color and tint.
MGP 464 Test Patterns
X-Hatch 4x4 X-Hatch
(16x12)
Alt. Pixels White Field
16 x9
16x9
Side-By-Side Quad Split
(16x9 crop)
1.78 Aspect 1.85 Aspect
MGP 464 • HTML Configuration and Control
Grey Scale
Crop
4 x 3
4x3
4 x 3
4 x 3
PIP Images
(4x3)
2.35 Aspect
5-7
