Setting Up Mgps For Daisy-Chaining - Extron electronics Multi-Graphic Processor MGP 464 User Manual

1. 8 Window Configuration
MGP 464 Unit B
DVI out
Output rate = any
DVI BKG in
factory rate
DVI output from first
MGP output to DVI
background input
1B 2B
3B 4B
4 video windows on output display
2. 12 Window Configuration
MGP 464 Unit C
DVI out
Output rate = any
factory rate
DVI output from first
MGP output to DVI
background input
1C 2C 3C 4C
4 video windows on output display
3. 8 Window Configuration with a DVI Computer Background
Computer or
DVI out
Other DVI Source
DVI output from
computer to DVI
background input
Computer output

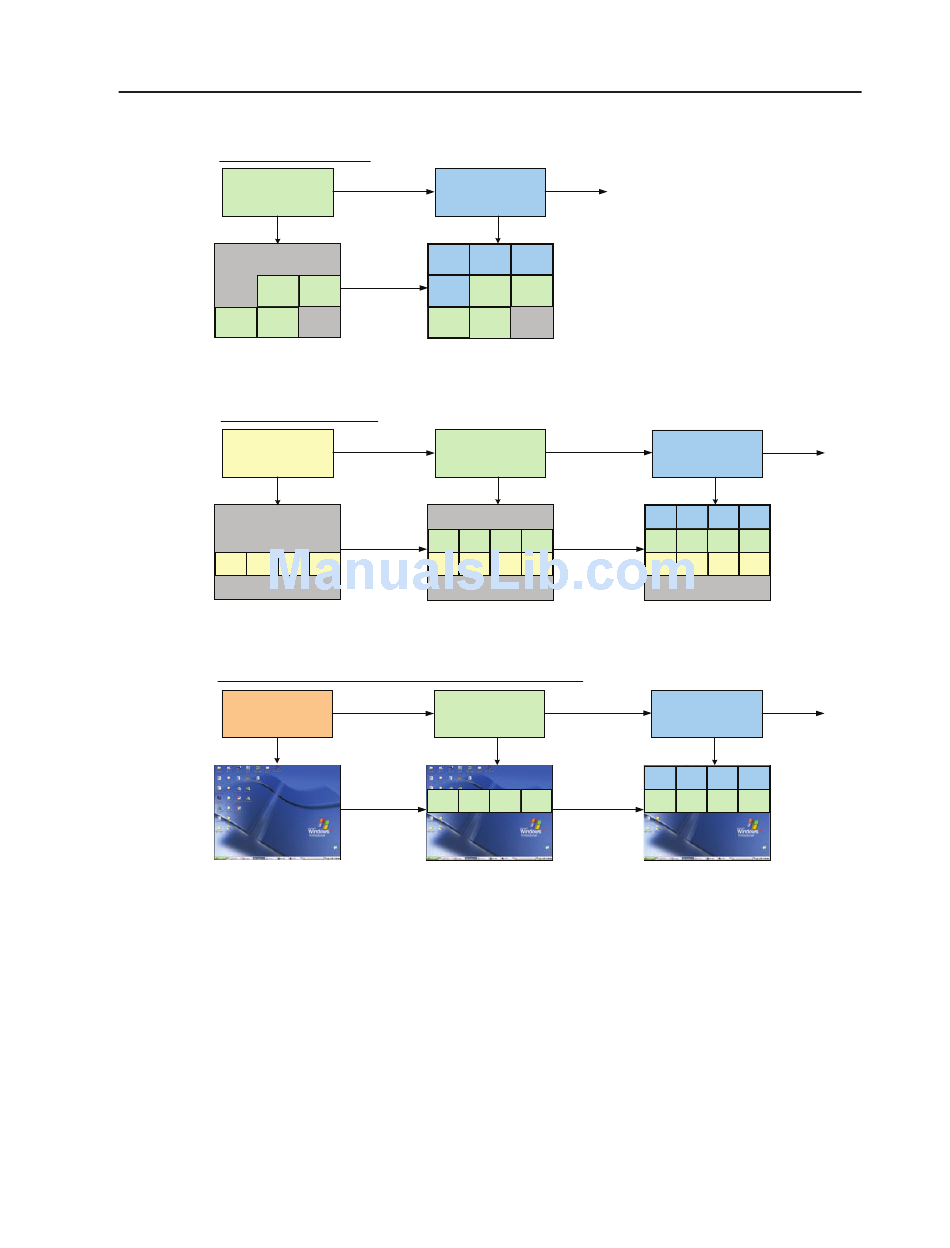

Daisy-chain configuration examples

Setting up MGPs for daisy-chaining

Follow these steps to set up one to three MGPs in a daisy-chain formation:
1. Connect input sources to the MGP to be displayed in the windows.
2. Connect the DVI output of the first MGP to the DVI Background connector
of the second MGP. If you are daisy-chaining three units, connect the DVI
output of the second MGP to the DVI Background connector of the third unit.
MGP 464 Unit A
To display
Output rate = DVI
background rate
1A 2A 3A
4A 1B 2B
3B 4B
Output display with the 4 windows
from unit B, and the 4 windows from
unit A laid on top
MGP 464 Unit B
DVI out
Output rate = DVI
DVI BKG in
background rate
DVI output from
second MGP output to
DVI background input
1B 2B 3B 4B
1C 2C 3C 4C
Output display with the 4 windows
from unit C, and the 4 windows
from unit B laid on top
MGP 464 Unit B
DVI out
Output rate = DVI
DVI BKG in
background rate
DVI output from
first MGP output to
DVI background input
1B 2B 3B 4B
Output display with the 4 windows
from unit B and the computer output
as the background
MGP 464 • Special Applications
MGP 464 Unit A
To display
Output rate = DVI
DVI BKG in
background rate
1A 2A 3A 4A
1B 2B 3B 4B
1C 2C 3C 4C
Output display with the 8 windows
from unit C and unit B, and the 4
windows from unit A laid on top
MGP 464 Unit A
To display
Output rate = DVI
DVI BKG in
background rate
1A 2A 3A 4A
1B 2B 3B 4B
Output display with the 4 windows
from unit B and the computer background,
with the 4 windows from unit A laid on top
6-7
