Inlet and outlet runs (Insertion version)

If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows,
etc. If several flow obstructions are installed, the longest inlet or outlet run must be
considered.
Compliance with the following requirements for the inlet and outlet runs is
recommended to ensure measuring accuracy:
1
2
3

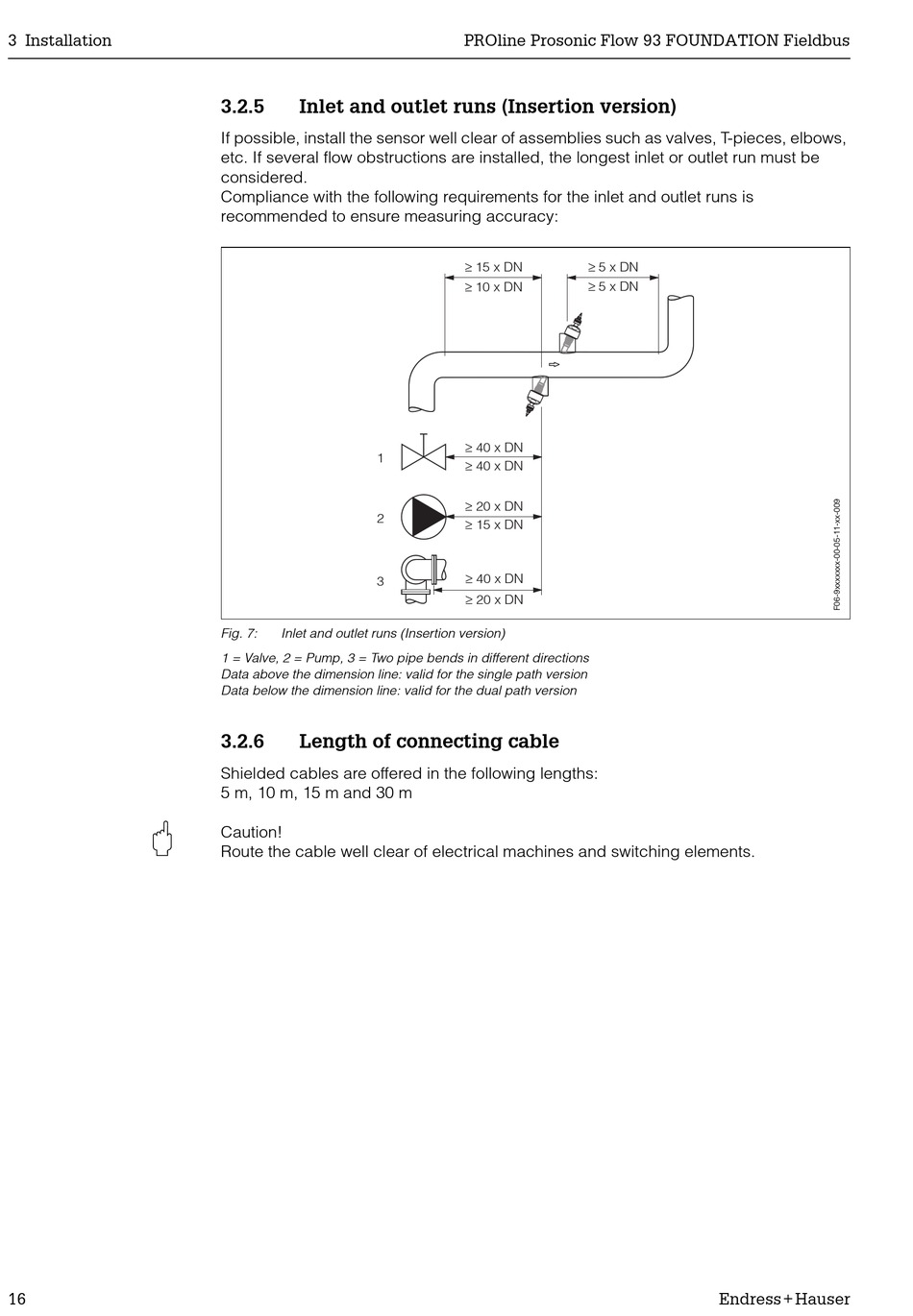

Fig. 7: Inlet and outlet runs (Insertion version)
1 = Valve, 2 = Pump, 3 = Two pipe bends in different directions
Data above the dimension line: valid for the single path version
Data below the dimension line: valid for the dual path version
3.2.6

Length of connecting cable

Shielded cables are offered in the following lengths:
5 m, 10 m, 15 m and 30 m
Caution!
Route the cable well clear of electrical machines and switching elements.
