3 Installation
"
16
3.2.5

Inlet and outlet runs (Insertion version)

If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows,
etc. The longest inlet or outlet run must always be taken into account if several flow
obstructions are built in. Compliance with the following requirements for the inlet and
outlet runs is recommended to ensure measuring accuracy.
1
2
3

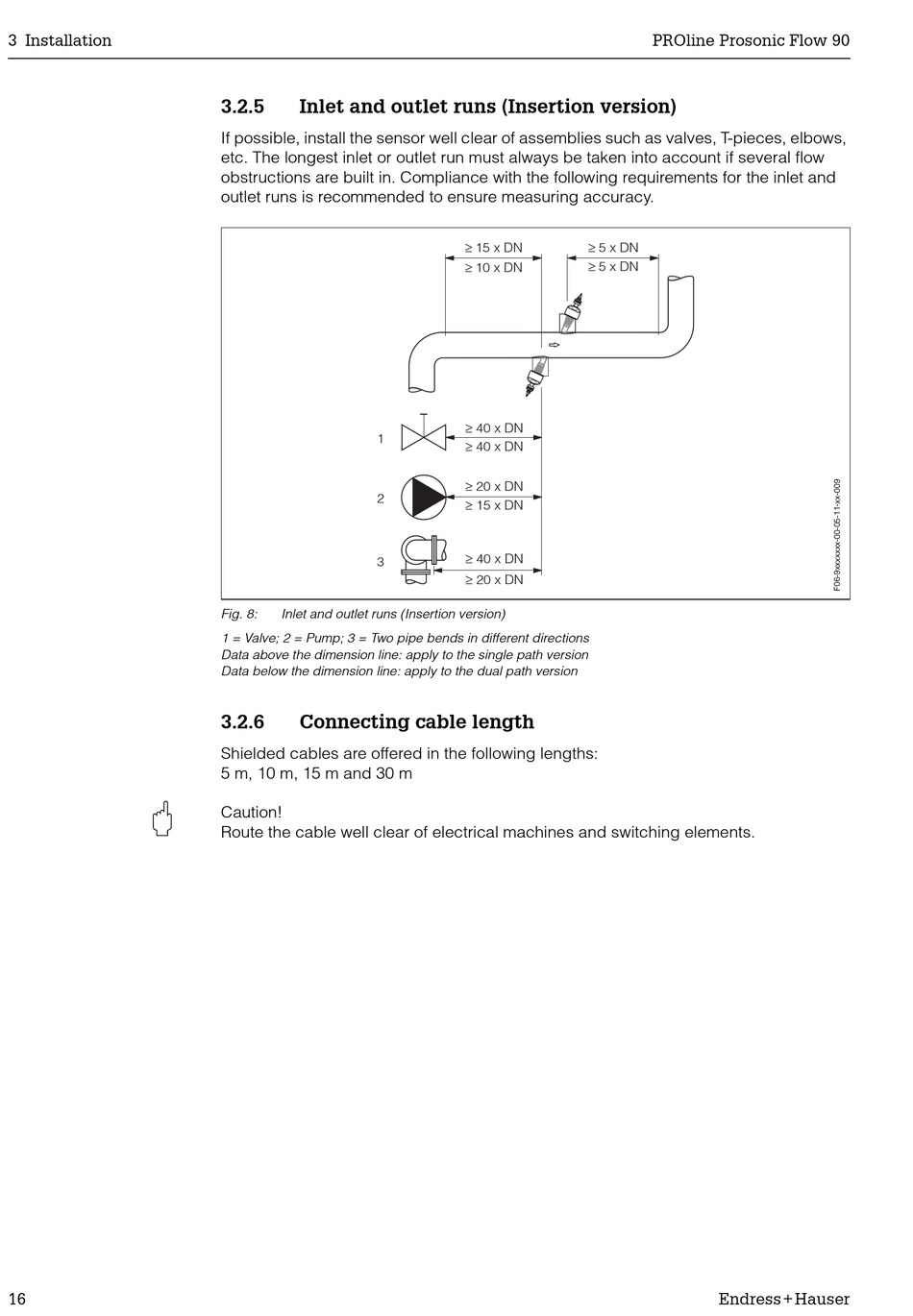

Fig. 8: Inlet and outlet runs (Insertion version)
1 = Valve; 2 = Pump; 3 = Two pipe bends in different directions
Data above the dimension line: apply to the single path version
Data below the dimension line: apply to the dual path version
3.2.6

Connecting cable length

Shielded cables are offered in the following lengths:
5 m, 10 m, 15 m and 30 m
Caution!
Route the cable well clear of electrical machines and switching elements.
≥ 15 x DN ≥ 5 x DN
≥ 5 x DN
≥ 10 x DN
≥ 40 x DN
≥ 40 x DN
≥ 20 x DN
≥ 15 x DN
≥ 40 x DN
≥ 20 x DN
