PROline Prosonic Flow 93 FOUNDATION Fieldbus
#
Endress+Hauser
4.2
Connecting the sensor connecting cable
4.2.1
Connecting Prosonic Flow W
Warning!
• Risk of electric shock. Switch off the power supply before opening the device. Do not
install or wire the device while it is connected to the power supply. Failure to comply
with this precaution can result in irreparable damage to the electronics.
• Risk of electric shock. Connect the protective earth to the ground connection on the
housing before the power supply is applied.

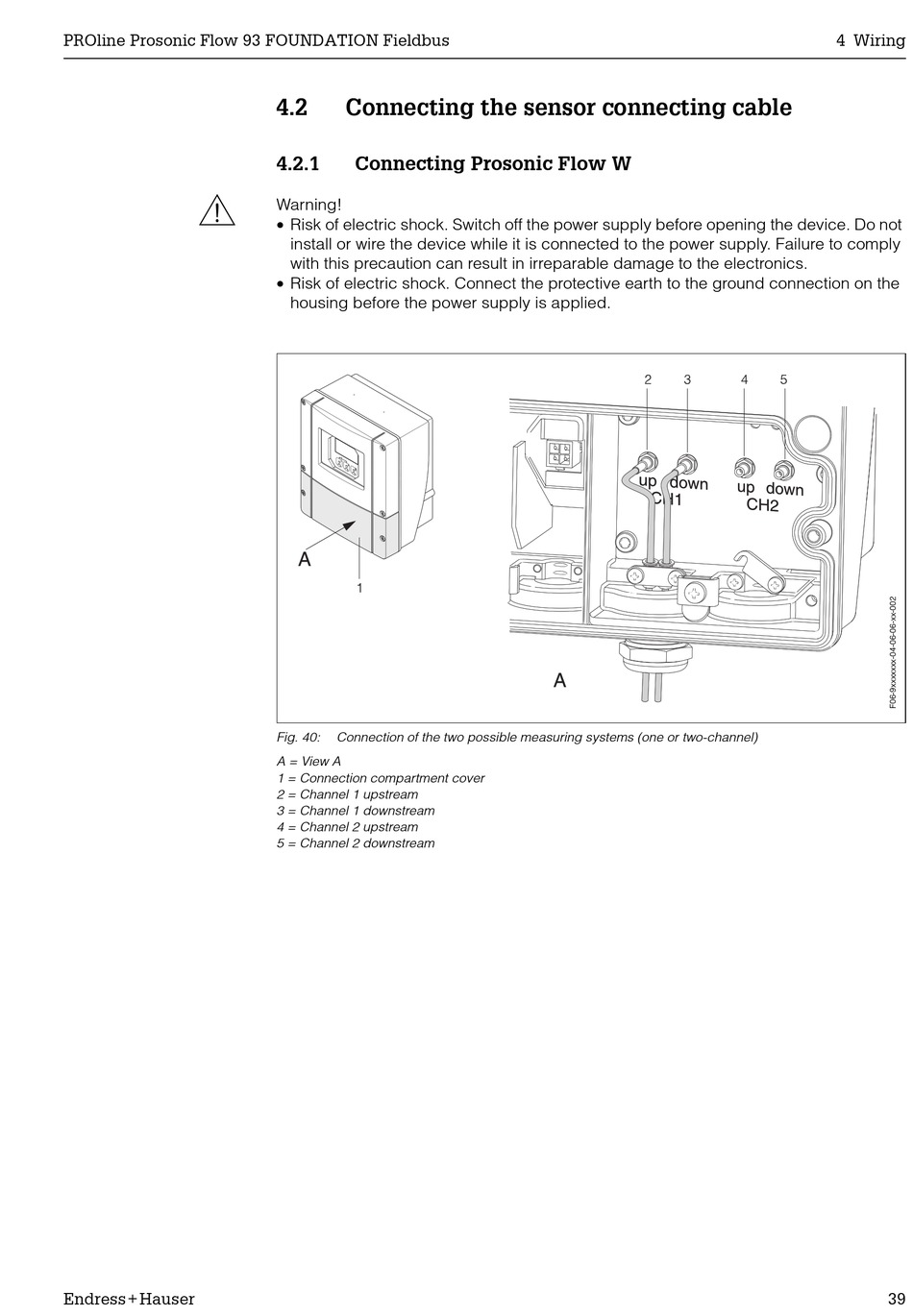

Fig. 40:
Connection of the two possible measuring systems (one or two-channel)
A = View A
1 = Connection compartment cover
2 = Channel 1 upstream
3 = Channel 1 downstream
4 = Channel 2 upstream
5 = Channel 2 downstream
4 Wiring
39
