5 Operation
54
5.5

Operation via the local display

5.5.1

Display and operating elements

The local display enables you to read all important parameters directly at the measuring
point and configure the device using the function matrix.
1
2

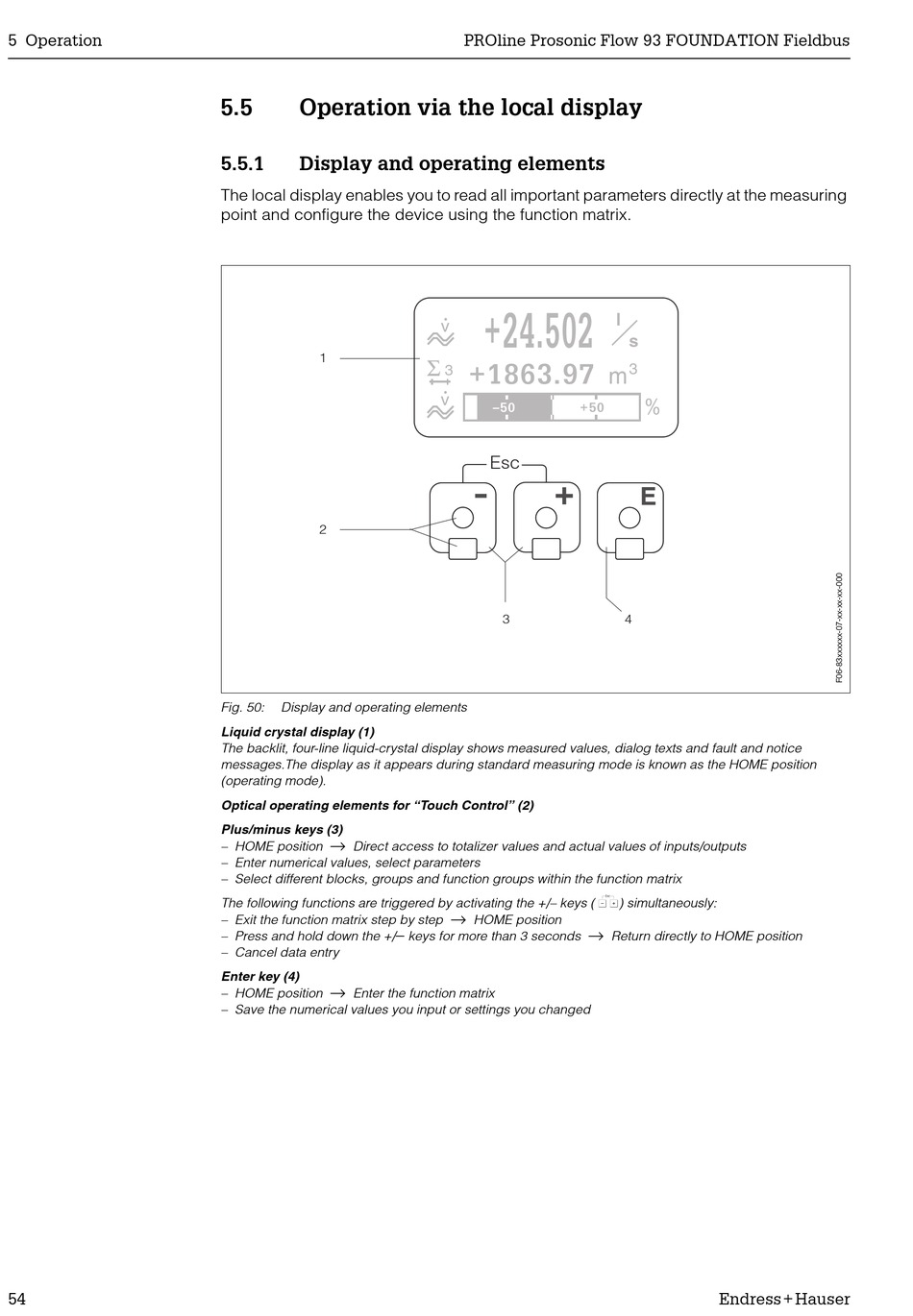

Fig. 50: Display and operating elements
Liquid crystal display (1)
The backlit, four-line liquid-crystal display shows measured values, dialog texts and fault and notice
messages.The display as it appears during standard measuring mode is known as the HOME position
(operating mode).
Optical operating elements for "Touch Control" (2)
Plus/minus keys (3)
→
– HOME position Direct access to totalizer values and actual values of inputs/outputs
– Enter numerical values, select parameters
– Select different blocks, groups and function groups within the function matrix
The following functions are triggered by activating the +/– keys (
– Exit the function matrix step by step
– Press and hold down the +/
– Cancel data entry
Enter key (4)
→
– HOME position Enter the function matrix
– Save the numerical values you input or settings you changed
PROline Prosonic Flow 93 FOUNDATION Fieldbus
+24.502 +24.502
v v
Σ Σ
3 3 +1863.97 +1863.97
v v
–50 –50
Esc
+
-
3
→
HOME position
−
keys for more than 3 seconds
l l
s s
3 3
m m
% %
+50 +50
E
4
X
) simultaneously:
→
Return directly to HOME position
