PROline Prosonic Flow 93 FOUNDATION Fieldbus
!
Endress+Hauser
6.2.5

"Commissioning" Quick Setup (local display)

The Quick Setup guides you systematically, via the local display, through all the major
device functions that have to be configured for standard measuring operation.
ENDRESS+HAUSER
+ +
E
-
+ E
ESC
HOME-POSITION
➀
Selection
Volume flow
System units
Unit
Volume Flow
Unit
Totalizer
➁
Configure another unit?
Autom. Configuration of the display?
Inquiry: another
Quick Setup?

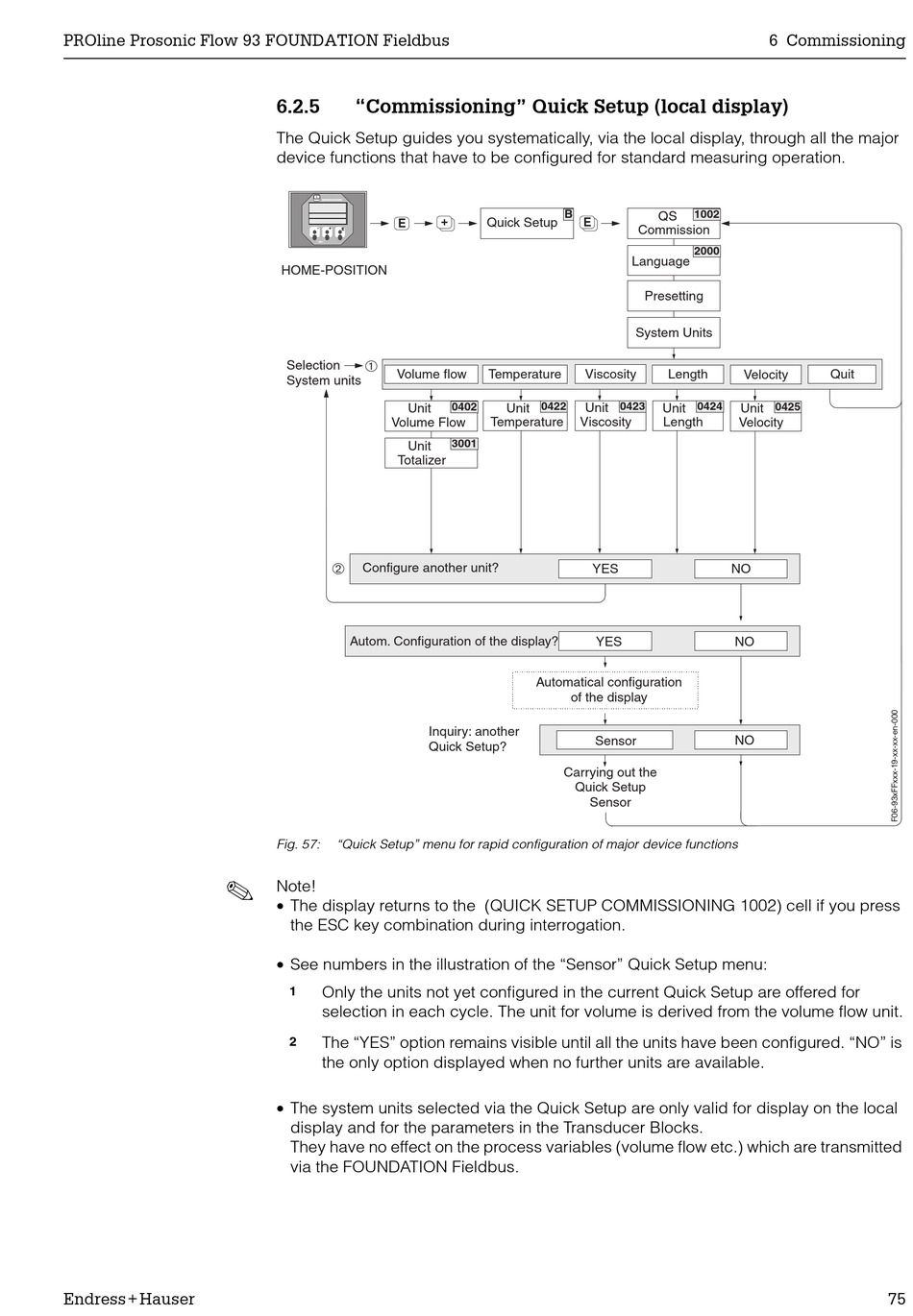

Fig. 57: "Quick Setup" menu for rapid configuration of major device functions
Note!
• The display returns to the (QUICK SETUP COMMISSIONING 1002) cell if you press
the ESC key combination during interrogation.
• See numbers in the illustration of the "Sensor" Quick Setup menu:
Only the units not yet configured in the current Quick Setup are offered for
1
selection in each cycle. The unit for volume is derived from the volume flow unit.
2 The "YES" option remains visible until all the units have been configured. "NO" is
the only option displayed when no further units are available.
• The system units selected via the Quick Setup are only valid for display on the local
display and for the parameters in the Transducer Blocks.
They have no effect on the process variables (volume flow etc.) which are transmitted
via the FOUNDATION Fieldbus.
B
Quick Setup E
+
Temperature Viscosity
0402 0422 0423
Unit Unit
Temperature Viscosity
3001
YES
YES
Automatical configuration
of the display
Sensor
Carrying out the
Quick Setup
Sensor
6 Commissioning
1002
QS
Commission
2000
Language
Presetting
System Units
Length Velocity
0424 0425
Unit
Unit
Length Velocity
NO
NO
NO
Quit
75
