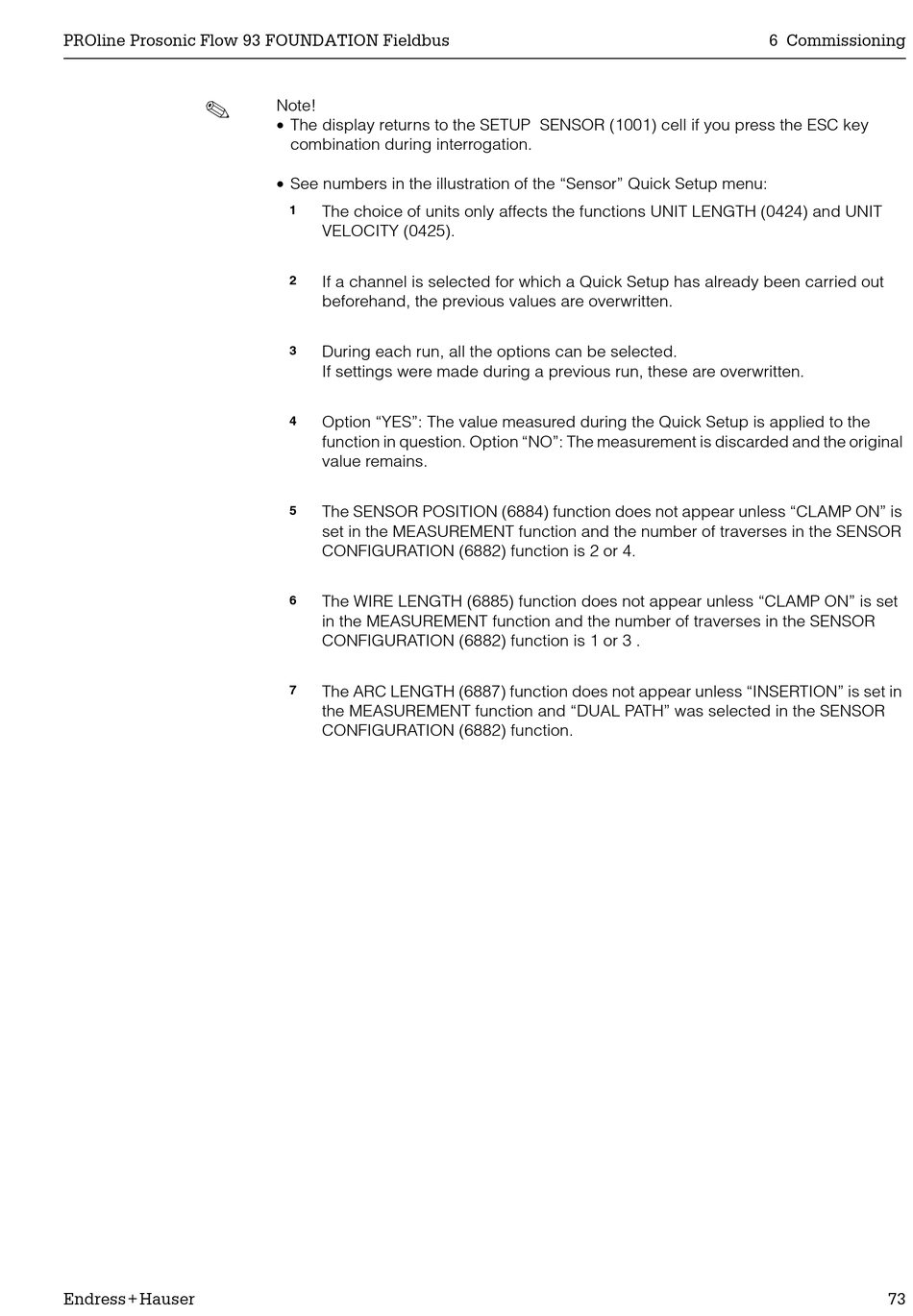

Note!
• The display returns to the SETUP SENSOR (1001) cell if you press the ESC key
combination during interrogation.
• See numbers in the illustration of the "Sensor" Quick Setup menu:
1 The choice of units only affects the functions UNIT LENGTH (0424) and UNIT
VELOCITY (0425).
2 If a channel is selected for which a Quick Setup has already been carried out
beforehand, the previous values are overwritten.
3 During each run, all the options can be selected.
If settings were made during a previous run, these are overwritten.
4 Option "YES": The value measured during the Quick Setup is applied to the
function in question. Option "NO": The measurement is discarded and the original
value remains.
5 The SENSOR POSITION (6884) function does not appear unless "CLAMP ON" is
set in the MEASUREMENT function and the number of traverses in the SENSOR
CONFIGURATION (6882) function is 2 or 4.
6 The WIRE LENGTH (6885) function does not appear unless "CLAMP ON" is set
in the MEASUREMENT function and the number of traverses in the SENSOR
CONFIGURATION (6882) function is 1 or 3 .
7 The ARC LENGTH (6887) function does not appear unless "INSERTION" is set in
the MEASUREMENT function and "DUAL PATH" was selected in the SENSOR
CONFIGURATION (6882) function.
