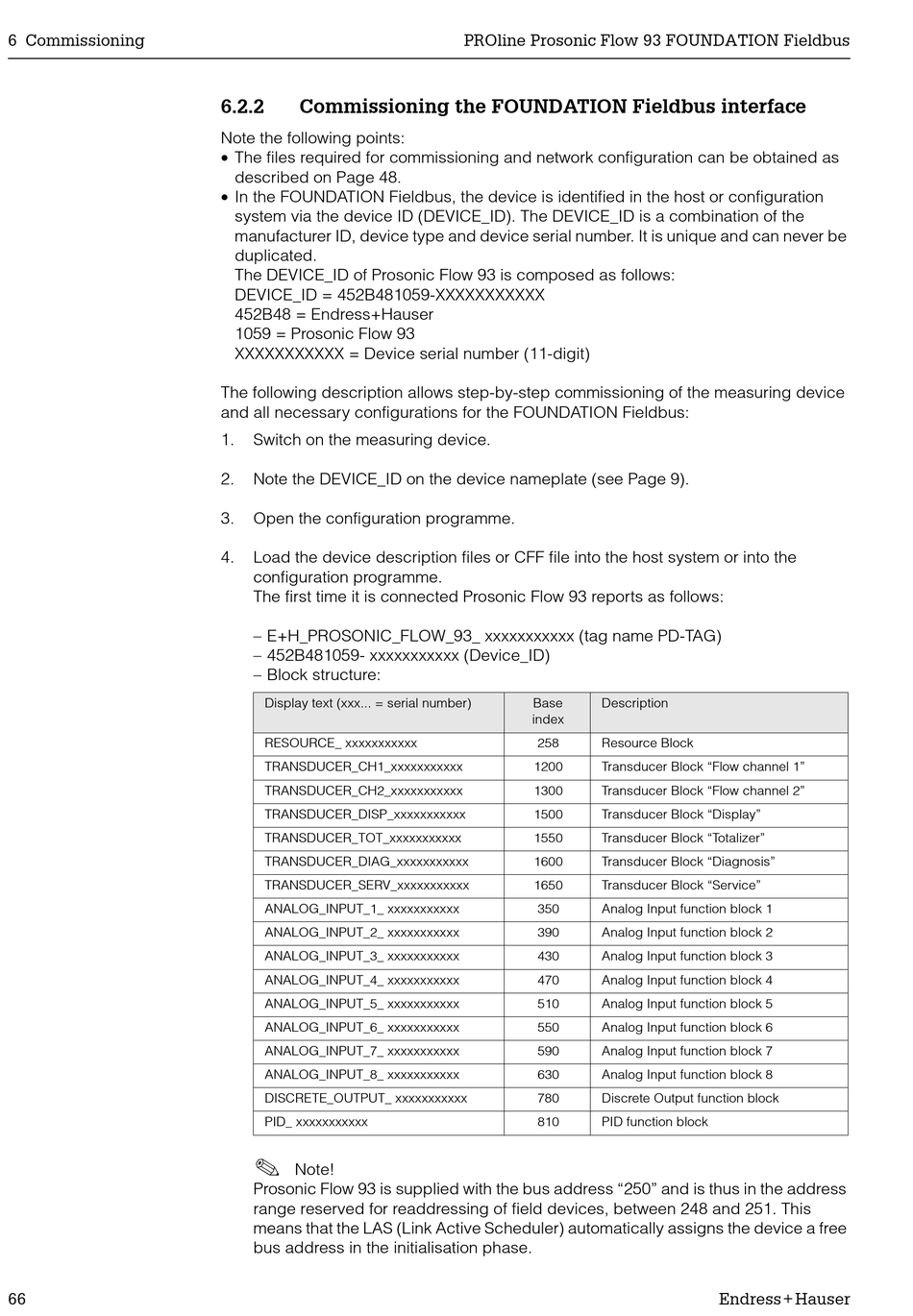

6 Commissioning
66
6.2.2

Commissioning the FOUNDATION Fieldbus interface

Note the following points:
• The files required for commissioning and network configuration can be obtained as
described on Page 48.
• In the FOUNDATION Fieldbus, the device is identified in the host or configuration
system via the device ID (DEVICE_ID). The DEVICE_ID is a combination of the
manufacturer ID, device type and device serial number. It is unique and can never be
duplicated.
The DEVICE_ID of Prosonic Flow 93 is composed as follows:
DEVICE_ID = 452B481059-XXXXXXXXXXX
452B48 = Endress+Hauser
1059 = Prosonic Flow 93
XXXXXXXXXXX = Device serial number (11-digit)
The following description allows step-by-step commissioning of the measuring device
and all necessary configurations for the FOUNDATION Fieldbus:
1. Switch on the measuring device.
2. Note the DEVICE_ID on the device nameplate (see Page 9).
3. Open the configuration programme.
4. Load the device description files or CFF file into the host system or into the
configuration programme.
The first time it is connected Prosonic Flow 93 reports as follows:
– E+H_PROSONIC_FLOW_93_ xxxxxxxxxxx (tag name PD-TAG)
– 452B481059- xxxxxxxxxxx (Device_ID)
– Block structure:
Display text (xxx... = serial number)
RESOURCE_ xxxxxxxxxxx
TRANSDUCER_CH1_xxxxxxxxxxx
TRANSDUCER_CH2_xxxxxxxxxxx
TRANSDUCER_DISP_xxxxxxxxxxx
TRANSDUCER_TOT_xxxxxxxxxxx
TRANSDUCER_DIAG_xxxxxxxxxxx
TRANSDUCER_SERV_xxxxxxxxxxx
ANALOG_INPUT_1_ xxxxxxxxxxx
ANALOG_INPUT_2_ xxxxxxxxxxx
ANALOG_INPUT_3_ xxxxxxxxxxx
ANALOG_INPUT_4_ xxxxxxxxxxx
ANALOG_INPUT_5_ xxxxxxxxxxx
ANALOG_INPUT_6_ xxxxxxxxxxx
ANALOG_INPUT_7_ xxxxxxxxxxx
ANALOG_INPUT_8_ xxxxxxxxxxx
DISCRETE_OUTPUT_ xxxxxxxxxxx
PID_ xxxxxxxxxxx
!
Note!
Prosonic Flow 93 is supplied with the bus address "250" and is thus in the address
range reserved for readdressing of field devices, between 248 and 251. This
means that the LAS (Link Active Scheduler) automatically assigns the device a free
bus address in the initialisation phase.
PROline Prosonic Flow 93 FOUNDATION Fieldbus
Base Description
index
258 Resource Block
1200 Transducer Block "Flow channel 1"
1300 Transducer Block "Flow channel 2"
1500 Transducer Block "Display"
1550 Transducer Block "Totalizer"
1600 Transducer Block "Diagnosis"
1650 Transducer Block "Service"
350 Analog Input function block 1
390 Analog Input function block 2
430 Analog Input function block 3
470 Analog Input function block 4
510 Analog Input function block 5
550 Analog Input function block 6
590 Analog Input function block 7
630 Analog Input function block 8
780 Discrete Output function block
810 PID function block
