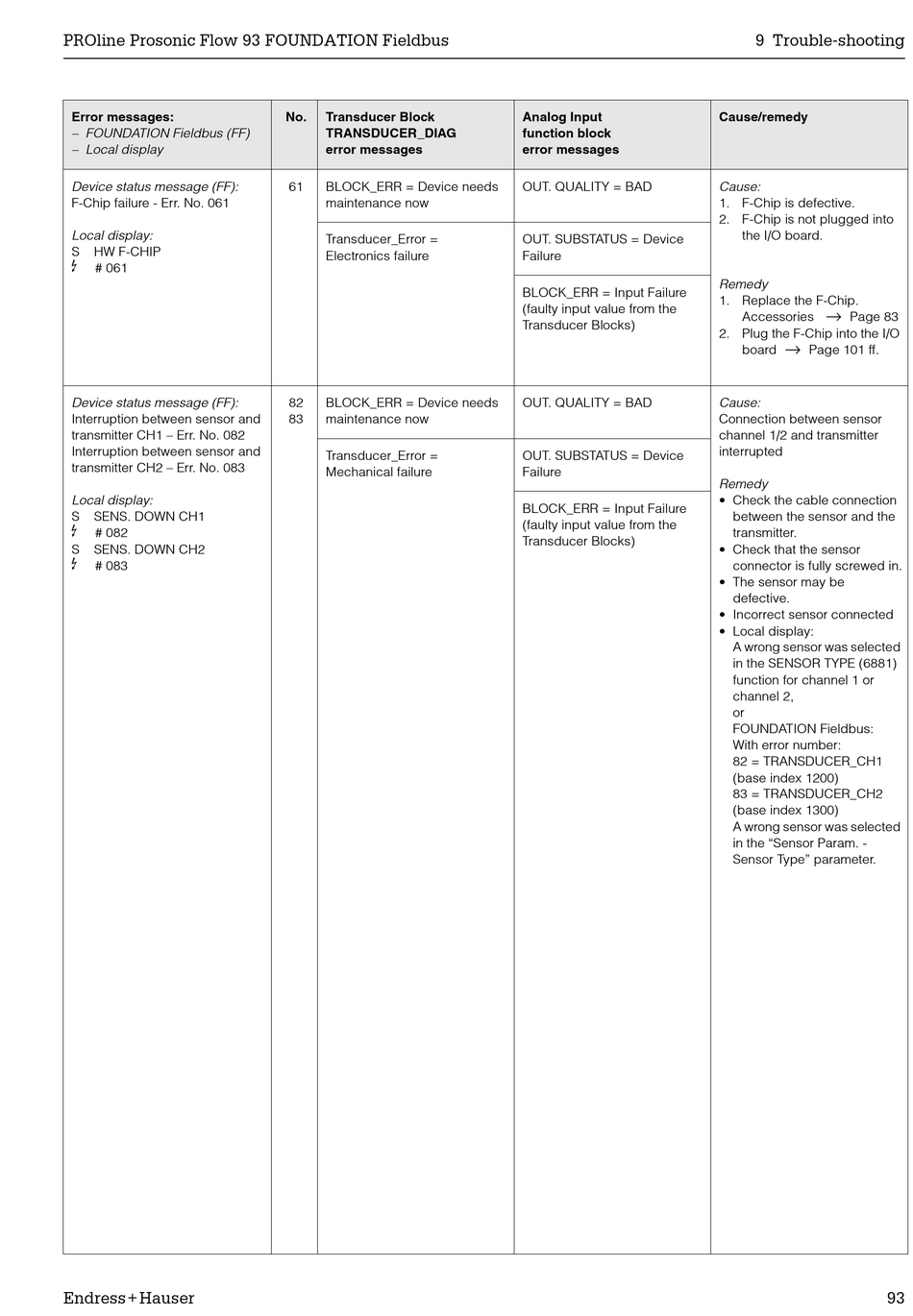

PROline Prosonic Flow 93 FOUNDATION Fieldbus
Error messages:
– FOUNDATION Fieldbus (FF)
– Local display
Device status message (FF):
F-Chip failure - Err. No. 061
Local display:
S HW F-CHIP
$
# 061
Device status message (FF):
Interruption between sensor and
transmitter CH1 – Err. No. 082
Interruption between sensor and
transmitter CH2 – Err. No. 083
Local display:
S SENS. DOWN CH1
$
# 082
S SENS. DOWN CH2
$
# 083
Endress+Hauser
No. Transducer Block
TRANSDUCER_DIAG
error messages
61 BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Electronics failure
82 BLOCK_ERR = Device needs
83 maintenance now
Transducer_Error =
Mechanical failure
Analog Input
function block
error messages
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from the
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from the
Transducer Blocks)
9 Trouble-shooting
Cause/remedy
Cause:
1. F-Chip is defective.
2. F-Chip is not plugged into
the I/O board.
Remedy
1. Replace the F-Chip.
→
Accessories Page 83
2. Plug the F-Chip into the I/O
→
board Page 101 ff.
Cause:
Connection between sensor
channel 1/2 and transmitter
interrupted
Remedy
• Check the cable connection
between the sensor and the
transmitter.
• Check that the sensor
connector is fully screwed in.
• The sensor may be
defective.
• Incorrect sensor connected
• Local display:
A wrong sensor was selected
in the SENSOR TYPE (6881)
function for channel 1 or
channel 2,
or
FOUNDATION Fieldbus:
With error number:
82 = TRANSDUCER_CH1
(base index 1200)
83 = TRANSDUCER_CH2
(base index 1300)
A wrong sensor was selected
in the "Sensor Param. -
Sensor Type" parameter.
