3 Installation
"
16
3.2.5

Inlet and outlet runs (Insertion version)

If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows,
etc. If several flow obstructions are installed, the longest inlet or outlet run must be con-
sidered. Compliance with the following requirements for the inlet and outlet runs is rec-
ommended to ensure measuring accuracy.
1
2
3

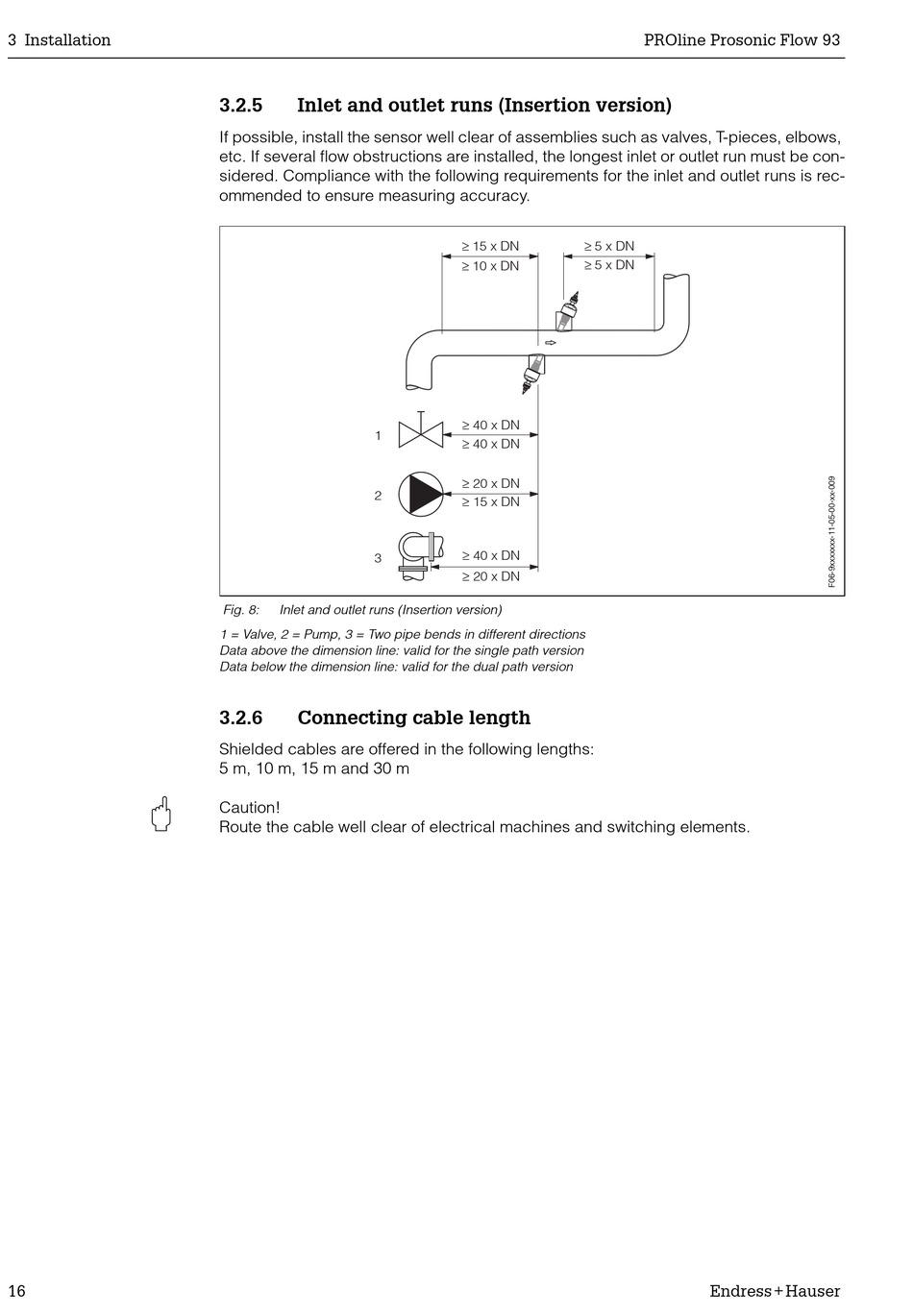

Fig. 8: Inlet and outlet runs (Insertion version)
1 = Valve, 2 = Pump, 3 = Two pipe bends in different directions
Data above the dimension line: valid for the single path version
Data below the dimension line: valid for the dual path version
3.2.6

Connecting cable length

Shielded cables are offered in the following lengths:
5 m, 10 m, 15 m and 30 m
Caution!
Route the cable well clear of electrical machines and switching elements.
≥ 15 x DN ≥ 5 x DN
≥ 5 x DN
≥ 10 x DN
≥ 40 x DN
≥ 40 x DN
≥ 20 x DN
≥ 15 x DN
≥ 40 x DN
≥ 20 x DN
