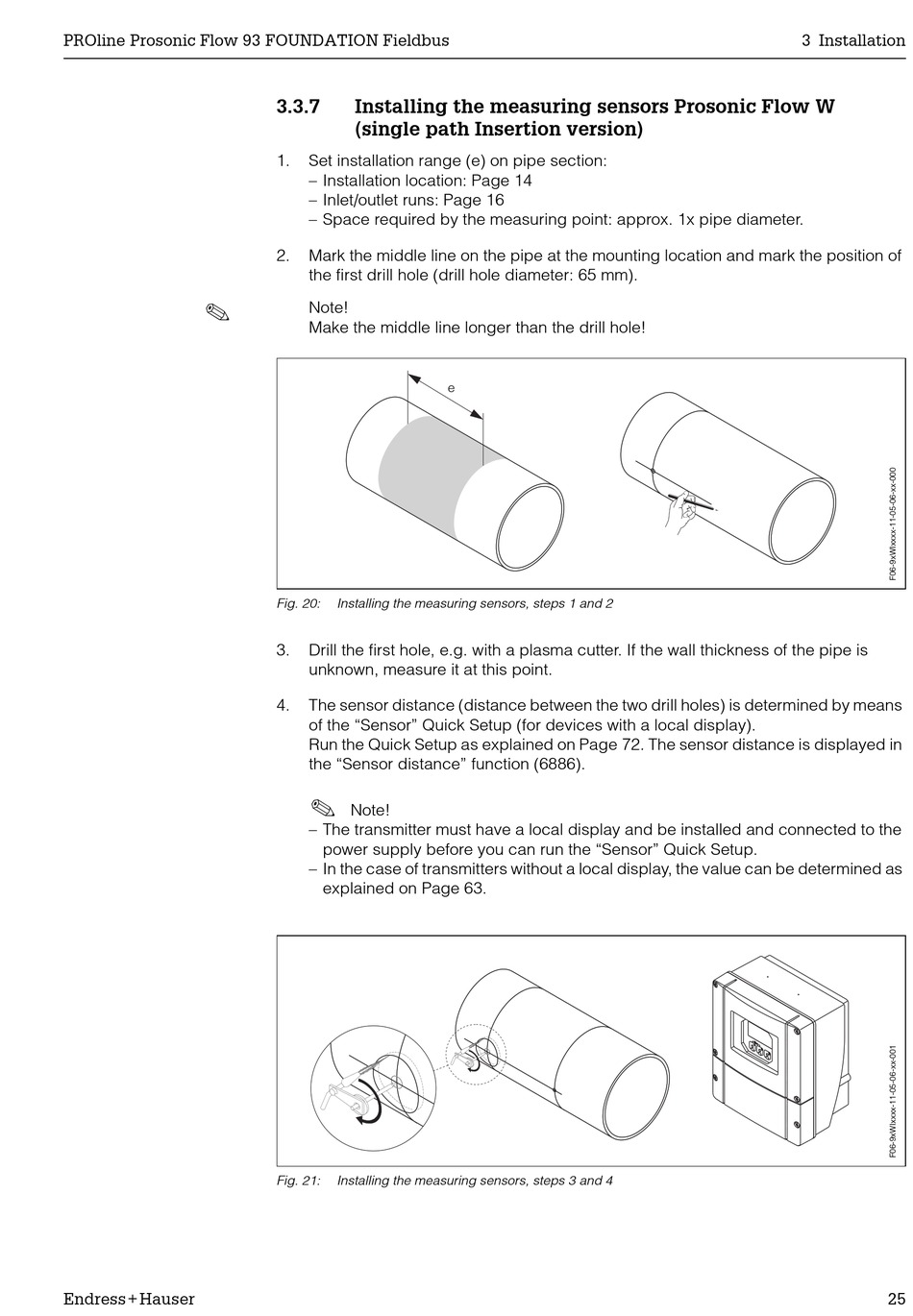

3.3.7 Installing the measuring sensors Prosonic Flow W
(single path Insertion version)
1. Set installation range (e) on pipe section:
– Installation location: Page 14
– Inlet/outlet runs: Page 16
– Space required by the measuring point: approx. 1x pipe diameter.
2. Mark the middle line on the pipe at the mounting location and mark the position of
the first drill hole (drill hole diameter: 65 mm).
Note!
Make the middle line longer than the drill hole!
e
Fig. 20: Installing the measuring sensors, steps 1 and 2
3. Drill the first hole, e.g. with a plasma cutter. If the wall thickness of the pipe is
unknown, measure it at this point.
4. The sensor distance (distance between the two drill holes) is determined by means
of the "Sensor" Quick Setup (for devices with a local display).
Run the Quick Setup as explained on Page 72. The sensor distance is displayed in
the "Sensor distance" function (6886).
!
Note!
– The transmitter must have a local display and be installed and connected to the
power supply before you can run the "Sensor" Quick Setup.
– In the case of transmitters without a local display, the value can be determined as
explained on Page 63.
Fig. 21: Installing the measuring sensors, steps 3 and 4
