PROline Prosonic Flow 93 FOUNDATION Fieldbus

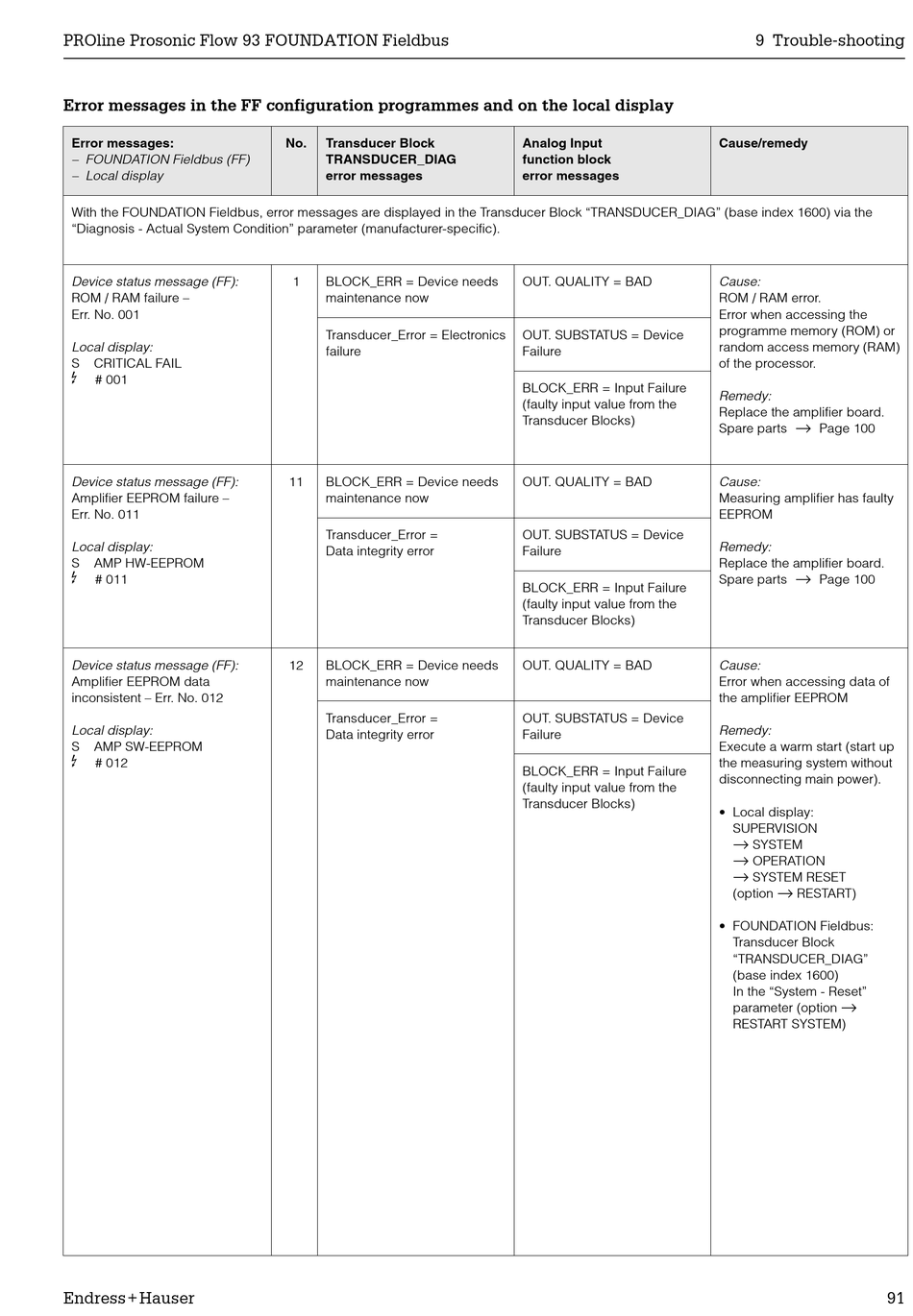

Error messages in the FF configuration programmes and on the local display
Error messages:
– FOUNDATION Fieldbus (FF)
– Local display
With the FOUNDATION Fieldbus, error messages are displayed in the Transducer Block "TRANSDUCER_DIAG" (base index 1600) via the
"Diagnosis - Actual System Condition" parameter (manufacturer-specific).
Device status message (FF):
ROM / RAM failure –
Err. No. 001
Local display:
S CRITICAL FAIL
$
# 001
Device status message (FF):
Amplifier EEPROM failure –
Err. No. 011
Local display:
S AMP HW-EEPROM
$
# 011
Device status message (FF):
Amplifier EEPROM data
inconsistent – Err. No. 012
Local display:
S AMP SW-EEPROM
$
# 012
Endress+Hauser
No. Transducer Block
TRANSDUCER_DIAG
error messages
1 BLOCK_ERR = Device needs
maintenance now
Transducer_Error = Electronics
failure
11 BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Data integrity error
12 BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Data integrity error
Analog Input
function block
error messages
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from the
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from the
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from the
Transducer Blocks)
9 Trouble-shooting
Cause/remedy
Cause:
ROM / RAM error.
Error when accessing the
programme memory (ROM) or
random access memory (RAM)
of the processor.
Remedy:
Replace the amplifier board.
→
Spare parts Page 100
Cause:
Measuring amplifier has faulty
EEPROM
Remedy:
Replace the amplifier board.
→
Spare parts Page 100
Cause:
Error when accessing data of
the amplifier EEPROM
Remedy:
Execute a warm start (start up
the measuring system without
disconnecting main power).
• Local display:
SUPERVISION
→
SYSTEM
→
OPERATION
→
SYSTEM RESET
→
(option RESTART)
• FOUNDATION Fieldbus:
Transducer Block
"TRANSDUCER_DIAG"
(base index 1600)
In the "System - Reset"
→
parameter (option
RESTART SYSTEM)
