The Throughput Monitor screen displays the system throughput monitoring feature in action. To
enter this screen:
1. Issue the mc command to display the connection monitor screen.
2. Use the <arrow keys> to move the cursor down to the specific site for which you would like to
view throughput information.
3. Press <enter> to display the throughput monitor screen for that site.
Throughput monitoring information can be very useful for fine-tuning your bandwidth
configuration parameters. Note that this feature is not available through a Telnet session. Refer to
the Configuring Call Control
The actual bandwidth utilization, along with the current underload setting, is displayed for each
throughput sample. After 32 samples are displayed, the newest sample is displayed at position 32
and all other samples are shifted left one position.

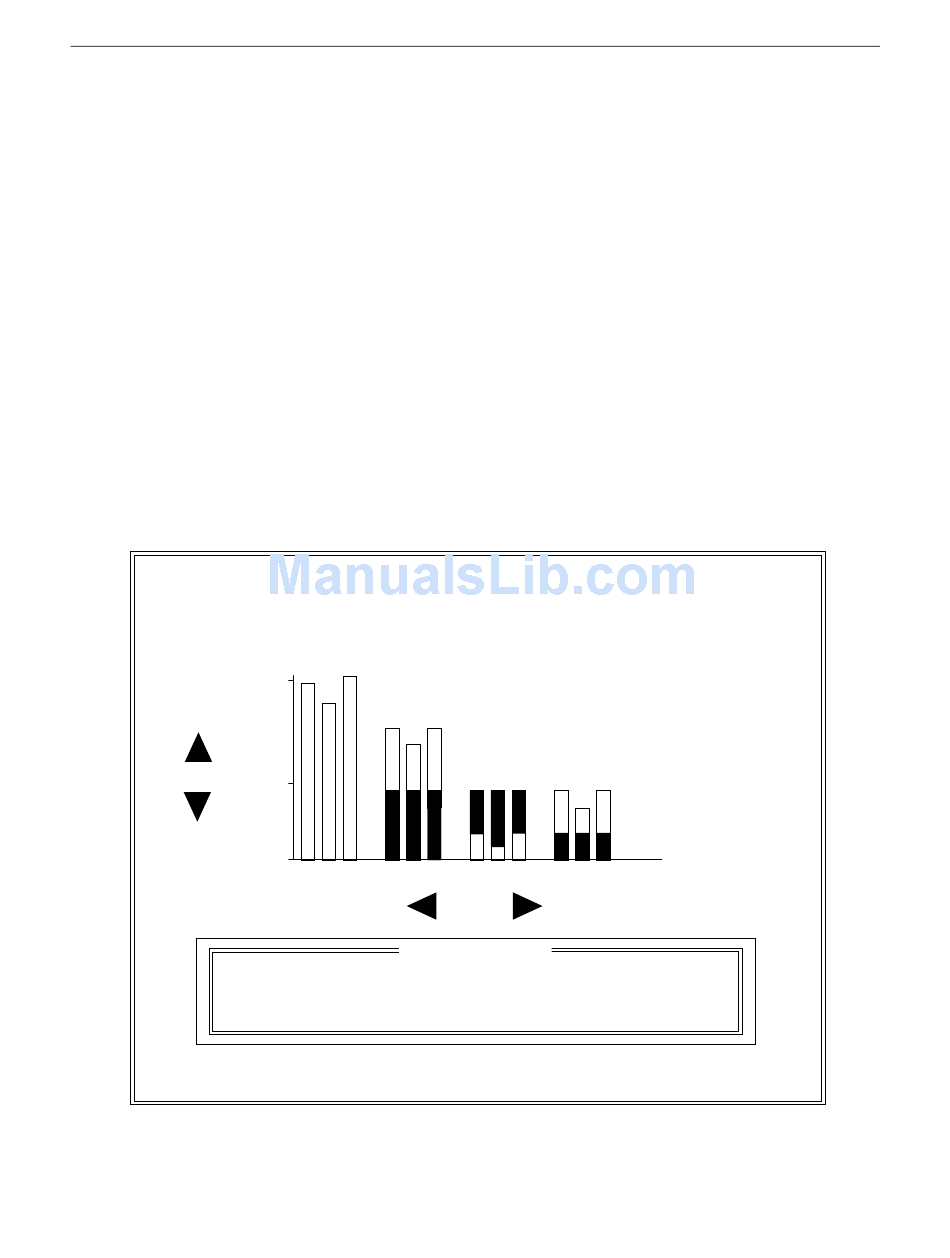

Throughput Monitor
Wide Area Network Bandwidth Utilization to site
% of current
bandwidth
Sample Rate (seconds):
< Press
520 CyberSWITCH
I
NFORMATION
chapter for a complete description of throughput parameters.
= UNDERLOAD BANDWIDTH
100
30
0
8
Throughput Parameters
Overload: Trigger 01
Underload: Trigger 05
Idle: Trigger 05
F to Freeze data capture,
#1
sitename @ current bandwidth Kbps
= ACTUAL BANDWIDTH UTILIZATION
16 24 32
Samples
03
Window 02 Utilization (%) 10
Window 10
Window 05 Utilization (%) 10
Esc to return to Connection Monitor >
