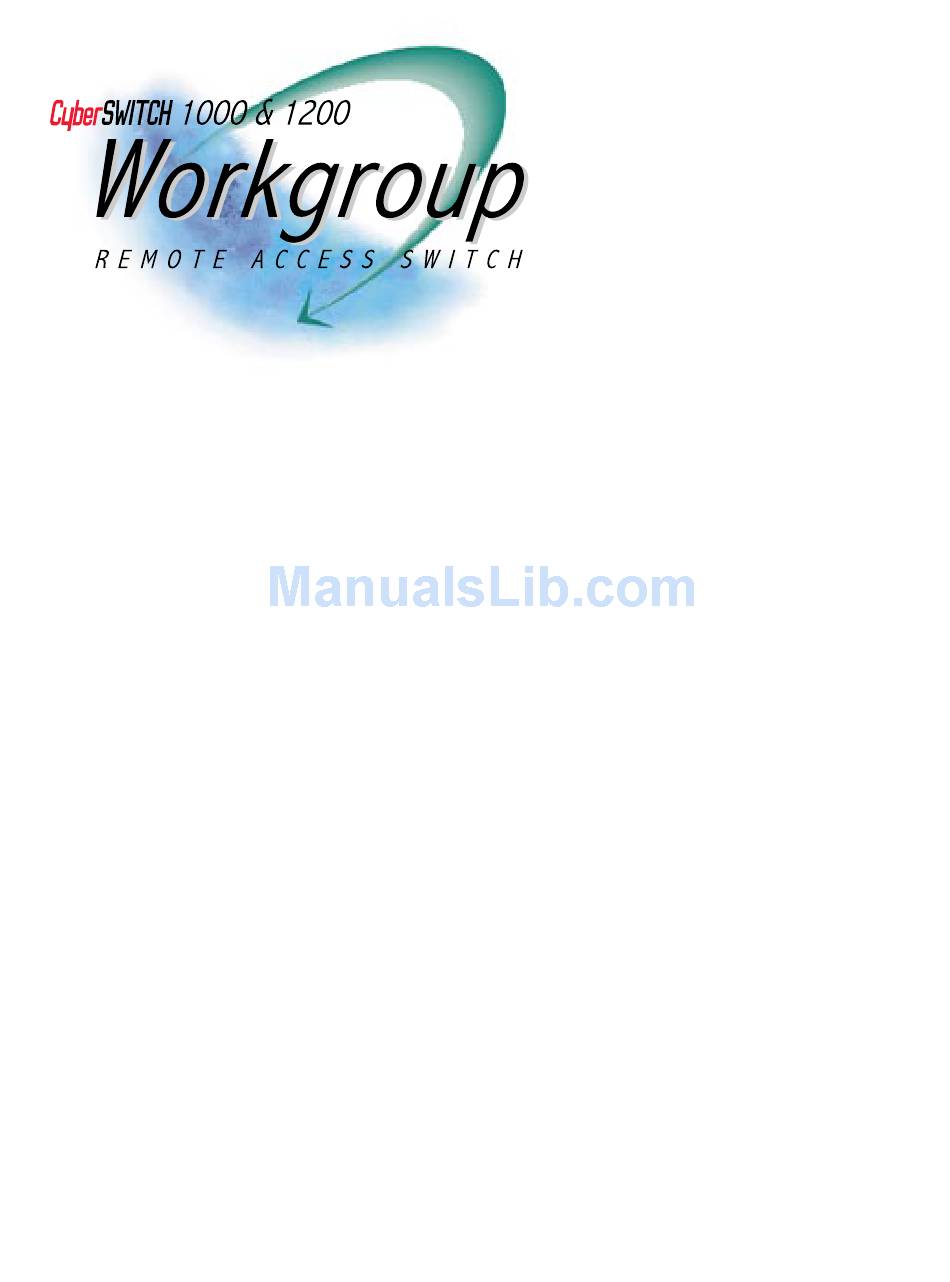

- Page 1 ORKGROUP EMOTE CCESS WITCH UICK TART Release 7.2 Cabletron Systems (603) 332-9400 phone (603) 337-3075 fax support@ctron.com...
- Page 2 QUICK START Only qualified personnel should perform installation procedures. CAUTION NOTICE You may post this document on a network server for public use as long as no modifications are made to the document. Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice.
-
Page 3: Fcc Notice
Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense. Workgroup Remote Access Switch... - Page 4 QUICK START WARNING: Changes or modifications made to this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DOC NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
-
Page 5: Table Of Contents
IP Router to IP Router with Network Address Translation Configuration Configuration for Site “Central” Configuration for Site “Remote” IPX Router to IPX Router Configuration Configuration for Site “Central” Configuration for Site “Remote” IPX Router to Bridge Configuration Configuration for Site “Central” Configuration for Site “Remote” Workgroup Remote Access Switch... - Page 6 QUICK START AppleTalk Router to Bridge Configuration Configuration for Site “Central” Configuration for Site “Remote” Index CyberSWITCH...
-
Page 7: Using Quick Start
SING UICK TART Quick Start is recommended only for those users who are experienced with hardware and software installation procedures. Quick Start is divided into two parts. • Basics This chapter gives detailed instructions on the initial installation steps that are required for all CyberSWITCH configurations. -
Page 8: Basics
Any computer or terminal that meets these requirements and connects to the administration port on the system can operate as an administration console. Using the provided RS232 null modem cable, attach an administration console to the system. The administration port is a 9-pin, male RS232 serial adapter: OTES SWITCH ONSOLE... -
Page 9: Changing The Baud Rate
AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE AND RATING OF FUSE. CONSOLE 10Base-T FUSE TYPE: IEC 127/ III RATED F1.6AL-250V RS232 Adapter 9600 None Full Workgroup Remote Access Switch ASICS Accessing the CyberSWITCH INPUT 85-250V 47-63 - 1.6A MAX... -
Page 10: Telnet Connection
CyberSWITCH to Telnet to is 2.2.2.2. After you make a Telnet connection, enter your login id and password. Then you will be presented with a system prompt and you can enter commands at that time. SWITCH OGIN ON THE YBER Once you have a connection to the CyberSWITCH, you will be presented with a prompt to enter your log in id. -
Page 11: Upgrading Software
Keep this in mind while reading through the following file structure and upgrade instructions. Upgrading Software Connectivity for the configuration Local Software Upgrade. (A local upgrade Remote Software Upgrade. (A remote up- Workgroup Remote Access Switch ASICS... -
Page 12: Cd File Structure
IP/IPX software option, use the files found in the \CSX1223\US\ipipx di- rectory. • If you are installing a CSX1204 using a NET3 international switch, and have purchased the IP, IPX, AppleTalk and Frame Relay options, use the files found in the \CSX1204\intnet3\ipipx- at.fr directory. -
Page 13: Local Upgrade Of The Operational Software (Osw)
To remotely upgrade the system, you are required to have a PC/workstation that is connected to the system’s network. It must have the following features: • ability to read CDs (OSW) OFTWARE Workgroup Remote Access Switch ASICS Upgrading Software... -
Page 14: Remote Upgrade Of The Second Stage Boot (Ssb)
QUICK START • TELNET client • TFTP client To perform a remote upgrade, first upgrade to the latest SSB, if required, then upgrade the OSW. The Release Notes will indicate whether or not the SSB needs to be upgraded. Note: If, during a remote upgrade, the compressed file set cannot be uncompressed into the Flash File System due to a lack of space, the compressed file set will not be deleted from the Flash File System and the previous version of the OSW will be booted. -
Page 15: Remote Upgrade Of The Operational Software (Osw)
CSX CD. Delete, Recover, and reTFTP if necessary. Hardware failure in the boot device. Contact your distributor immediately for a replacement. The SSB has been successfully updated. (OSW) OFTWARE Workgroup Remote Access Switch ASICS Upgrading Software... -
Page 16: Change Defaults To Secure System
QUICK START Note: If you experience a transmission timeout, check the retransmission setting on the TFTP package. A retransmission rate of 10 seconds is usually sufficient; values less than that may not work properly. If you experience a problem transferring the file with TFTP, wait about three minutes for the TFTP to fail, delete the incomplete file, and try again. -
Page 17: Return Configuration To Factory Defaults
Select Physical Resources from the main menu. Then, select Resource to display your CyberSWITCH’s resources. A display of preconfigured resources and the pertinent slot numbers and switch types for those resources appears. Add all WAN resources. Depending on the type of WAN resource you have in your system, select either a Basic Rate or Primary Rate resource from the displayed list of resources. - Page 18 If you have a 4 port basic rate adapter, configure all basic rate lines at this time (up to four lines) • select point-to-point for the interface type • add a data link (two for DMS and NI-1 switch types) • use Automatic TEIs for these data links For Primary Rate: •...
-
Page 19: Connectivity
ONNECTIVITY VERVIEW The Workgroup CyberSWITCH can communicate with various other CyberSWITCH products via a PPP connection. This connection can be used to transmit data and provide remote management of your remote systems with Telnet, TFTP and SNMP. We will describe how to set up a PPP connection with other CyberSWITCH systems, including the CSX100. -
Page 20: Configuration For Site "Remote
QUICK START Under Security, select System Options and Information, then under System Information: Set your System Name (Central). This matches up with Central device information configured on Remote. b. Set your System Secret (Central_S). This matches up with Central device information configured on Remote. -
Page 21: Ip Router To Ip Router Configuration
Set your System Secret (Central_S). This matches up with Central device information configured on Remote. Connecting a Workgroup Product to a Small Office Product via PPP ONFIGURATION ISDN "Central" "Remote" LAN IP Address 201.1.2.1 Phone 13135552222 " steps. Workgroup Remote Access Switch ONNECTIVITY CSX150 Site IP Address 201.1.2.0... -
Page 22: Configuration For Site "Remote
QUICK START Under Security, select Device Level Databases, select On-node Device Entries, then add a device where the Device Name (Remote) must match the system name on Remote. When you add the device you must then enter the following information: Under ISDN Information select ISDN Line Protocol, then select PPP. -
Page 23: Ipx Router To Ipx Router Configuration
B25 B27 B29 B31 10BASE - T B10 B12 B14 B16 B18 B20 B22 B24 B26 B28 ISDN " steps. Workgroup Remote Access Switch ONNECTIVITY FILESER2 Node # 0409A0222222 IN # 978901* CSX150 Phone # 13135552222 IN # 456789* "Remote"... -
Page 24: Configuration For Site "Remote
QUICK START Under Authentication you must: • Change CHAP Secret so that it matches Remote’s System secret (Remote_S). • Optional: Configure Calling Line Ids (if Calling Line Id security was enabled). d. Under IPX Information: • enable IPX • enable Make Calls for IPX data •... -
Page 25: Appletalk Router To Appletalk Router Configuration
Enter Marketing as the second zone name. Connecting a Workgroup Product to a Small Office Product via PPP OUTER ONFIGURATION "Remote" E1 ONLY B29 B31 ISDN " steps. Workgroup Remote Access Switch ONNECTIVITY CSX150 Remote's AppleTalk Configuration Network Range: 45-50 Zones: Remote.Engineering (default) Remote.Marketing... -
Page 26: Configuration For Site "Remote
QUICK START Under AppleTalk Port Information, configure a WAN UnNumbered port: • Select the WAN UnNumbered port type. d. Under AppleTalk Static Routes, configure a static route to Remote: • Enter Extended for Remote’s network type (the default). • Enter 45-50 as the destination network range (Remote’s network range). •... -
Page 27: Connecting A Workgroup Product To A Csx100 Via Ppp
"Central" "Remote" LAN IP Address 192.168.254.1 Phone 13135552222 DHCP Range 192.168.254.2 192.168.254.20 Workgroup Remote Access Switch ONNECTIVITY ONFIGURATION WAN IP Address 199.2.2.3 CSX100 C A B L E T R O N S Y S T E M S 192.168.254.2... -
Page 28: Configuration For Site "Central
(192.168.254.1), DNS address and Domain Name to be sent to a PC when an IP address is requested. d. Select your switch type. Enter the directory number for the CSX100 (13135552222). Click Next. Enable IP Routing by clicking in the box. Click Next. -
Page 29: Ipx Router To Ipx Router Configuration
B29 B31 B10 B12 B14 B16 B18 B20 B22 B24 B26 B28 ISDN ” steps. Workgroup Remote Access Switch ONNECTIVITY CSX100 Phone # 13135552222 C A B L E T R O N S Y S T E M S... -
Page 30: Configuration For Site "Remote
Accept the Local Ethernet IP Address. Click Next. b. Set your CyberSWITCH Name (Remote) and System Password (Remote_S). Select your switch type. d. Enter the directory number for the CSX100 (13135552222). Click Next. Enable IPX Routing by clicking in the box. -
Page 31: Configuration For Site "Central
10BASE - T B10 B12 B14 B16 B18 B20 B22 B24 B26 B28 ISDN ” steps. ” Workgroup Remote Access Switch ONNECTIVITY CSX100 Phone # 13135552222 C A B L E T R O N S Y S T E M S... - Page 32 Accept the Local Ethernet IP Address. Click Next. b. Set your CyberSWITCH Name (Remote) and System Password (Remote_S). Select your switch type. d. Enter the directory number for the CSX100 (13135552222). Click Next twice. Define Central as a remote connection.
- Page 33 Accept the Local Ethernet IP Address. Click Next. b. Set your CyberSWITCH Name (Remote) and System Password (Remote_S). Select your switch type. d. Enter the directory number for the CSX100 (13135552222). Click Next twice. Define Central as a remote connection.
- Page 34 QUICK START NDEX automatic TEIs B8ZS basic rate lines configuring BASIC_RATE_NET CD file structure CFGEDIT cfgedit common channel signaling type compliance notices configuration changes (making) configuration tools data links defaults returning to factory defaults system defaults DOC notice dynamic management access to defined features described...
