Remote Bridge to IP Router (w/Relay Agent)
This configuration is useful when requests by a DHCP Client must be "bridged" to an IP Router
that is also a DHCP/BOOTP Relay Agent. Our equipment is shown in this example, but any remote
bridge device should work.
DHCP Server
POWER
SERVICE
CSX1200
IP Router w/ DHCP
Relay Agent ("Alex")

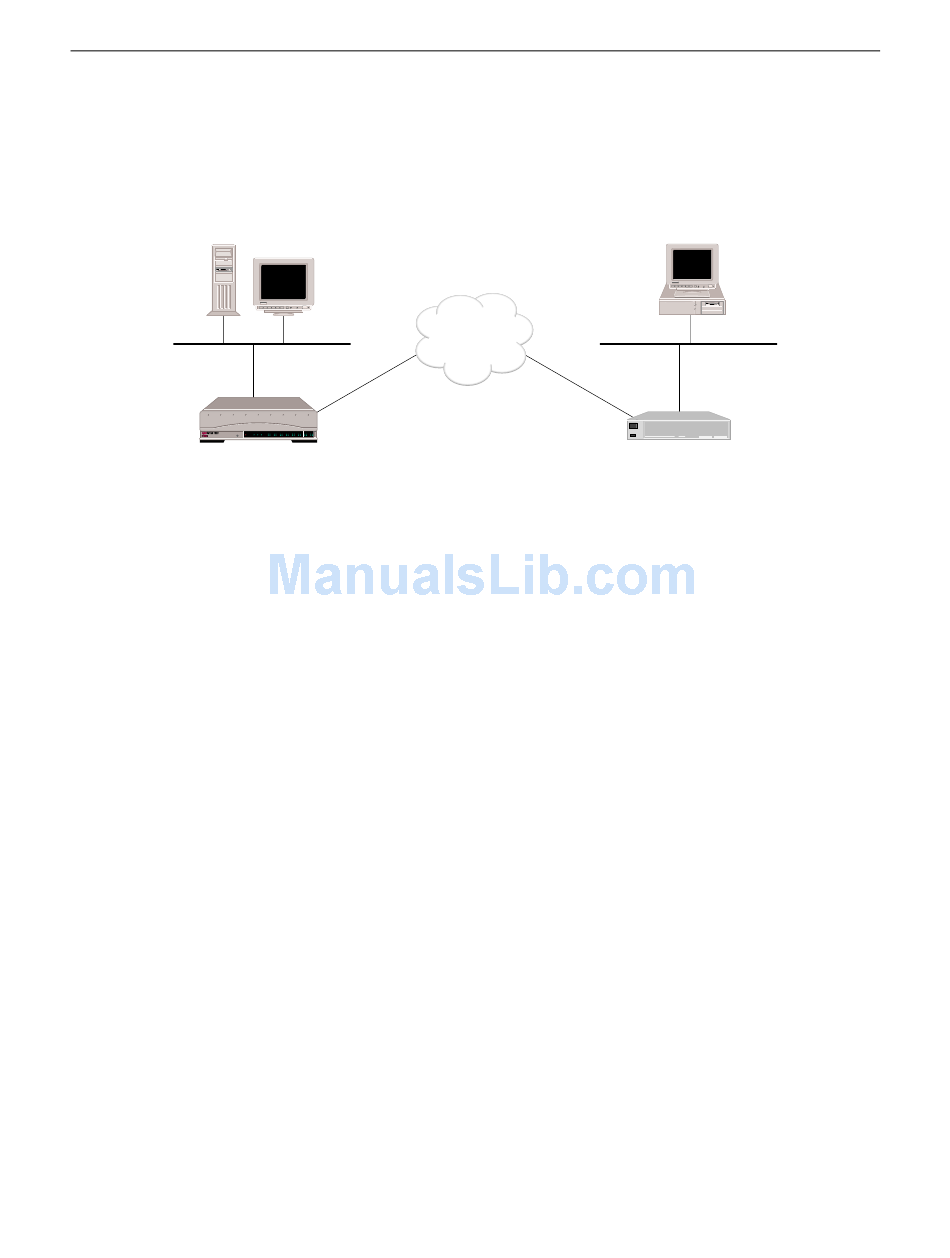

In this configuration, the DHCP Client is able to obtain its IP address from the DHCP Server (and
any other information that the server provides), using the Relay Agent contained in the DHCP-
enabled router "Alex." "Ruby" is a remote bridge device which communicates with the IP router
using a RLAN interface. Sample configurations for the objects in the above network diagram are:
192.168.1.5
192.168.1.168
204.157.42.190
(RLAN)
LAN B-CHANNELS E1 ONLY
B1 B3 B5 B7 B9 B11 B13 B15 B17 B19 B21 B23 B25 B27 B29 B31
TX RX 10BASE - T
E1 D T1 D
B2 B4 B6 B8 B10 B12 B14 B16 B18 B20 B22 B24 B26 B28 B30 L1
C
ONFIGURING
ISDN
Remote Bridge ("Ruby")
Workgroup Remote Access Switch
A IP R
DVANCED OUTING
DHCP Relay Agent
DHCP Client
