perform the verification steps. It also uses the show ip route command. The show ip route
command is used by a specific router to display the IP routing table. Substitute the equivalent
command for your IP router.
The steps to verify the operation of IP RIP output processing on a WAN interface are:
1. Make sure that a dedicated connection between system and Router is up and operational. On
the system's administration console:
Type: cs <return>
If the connection to Router is displayed, the continue with the next step.
2. Determine if Router has learned the route to 192.1.1.0 from the system. On the Router:
Type: show ip route <return>
If the route to 192.1.1.0 is displayed, the IP RIP output processing is operational.
If the route is NOT displayed, refer to
Diagnosis chapter.
V IP RIP I
ERIFY NPUT
To verify that IP RIP Input Processing (routes learning) is properly operational on a WAN interface,
the IP RIP processing must be successfully initialized.

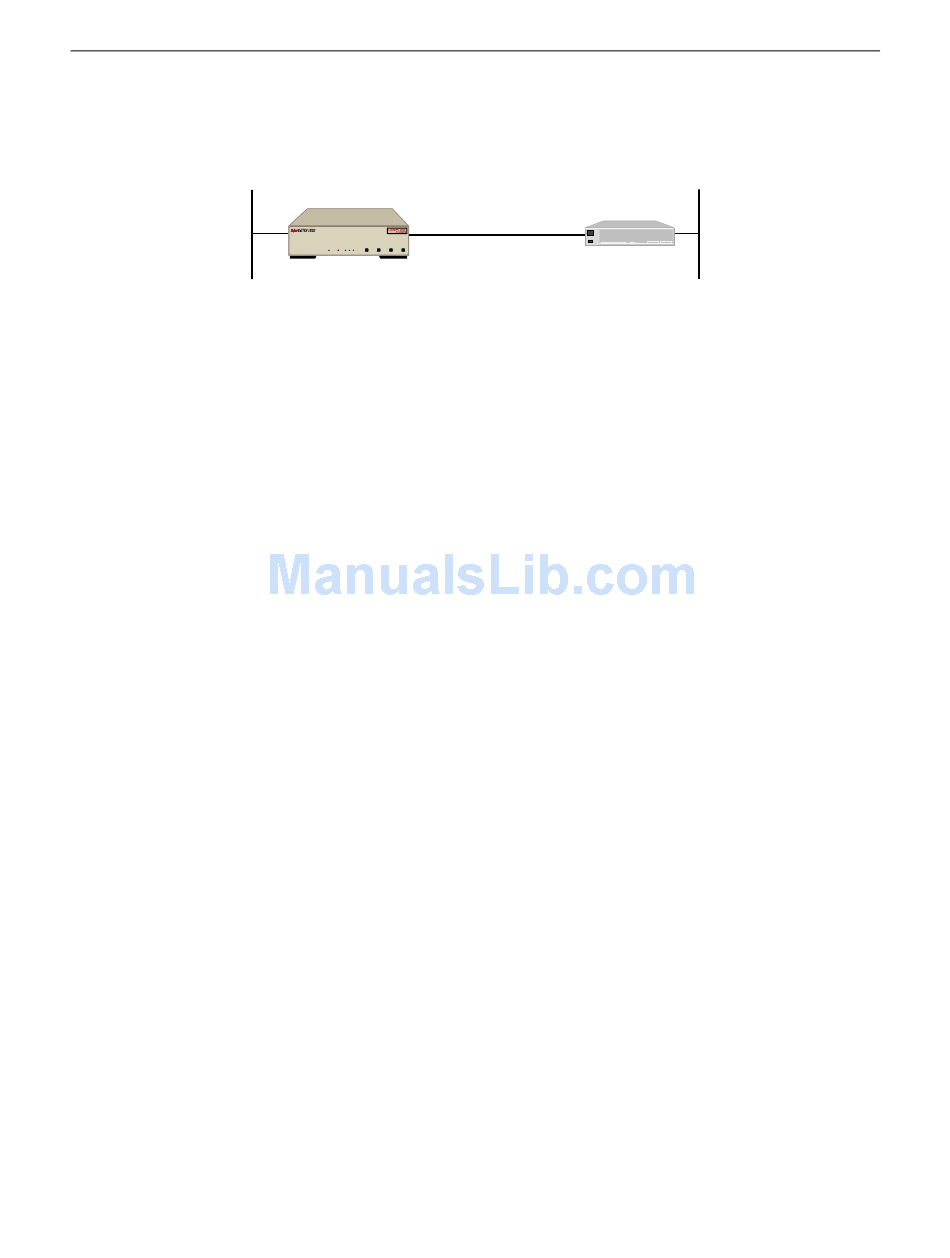

The same example that is used in the previous section is used to verify IP RIP input processing on
a WAN interface.
To verify the operation of IP RIP Input processing on a WAN interface:
1. Make sure that a dedicated connection between system and Router is up and operational. On
the CyberSWITCH administration console:
Type: cs <return>
If the connection to Router is displayed, the continue with the next step.
2. Determine if system has learned the route to 192.1.2.0 from the Router. On the CyberSWITCH
administration console:
Type: ip route <return>
If the route to 192.1.2.0 is displayed, the IP RIP input processing is operational.
If the route is NOT displayed, refer to
Diagnosis chapter.
CSX1200
Dedicated Connection
WORKGROUP REMOTE ACCESS SWITCH
LINE LINE LINE LINE
LAN 1 2 3 4
POWER SERVICE TX RX 10BASE-T CH-1 CH-2 CH-1 CH-2 CH-1 CH-2 CH-1 CH-2
SYNC D-CH SYNC D-CH SYNC D-CH SYNC D-CH
AGI
192.1.1.1 100.1.1.2
P O
ROCESSING PERATIONAL ON A
Router
100.1.1.1
IP RIP Output Processing on a WAN Interface
WAN I
NTERFACE
IP RIP Input Processing on a WAN Interface
Workgroup Remote Access Switch
S V
YSTEM ERIFICATION
Verifying IP RIP
192.1.2.1
in the Problem
in the Problem
369
