Working With Timber Grapples; Unloading Vehicle; Loading Vehicle Using Timber Grapples; Stacking - Volvo L90E Operator's Manual

Timber grapples
Working with
grapples

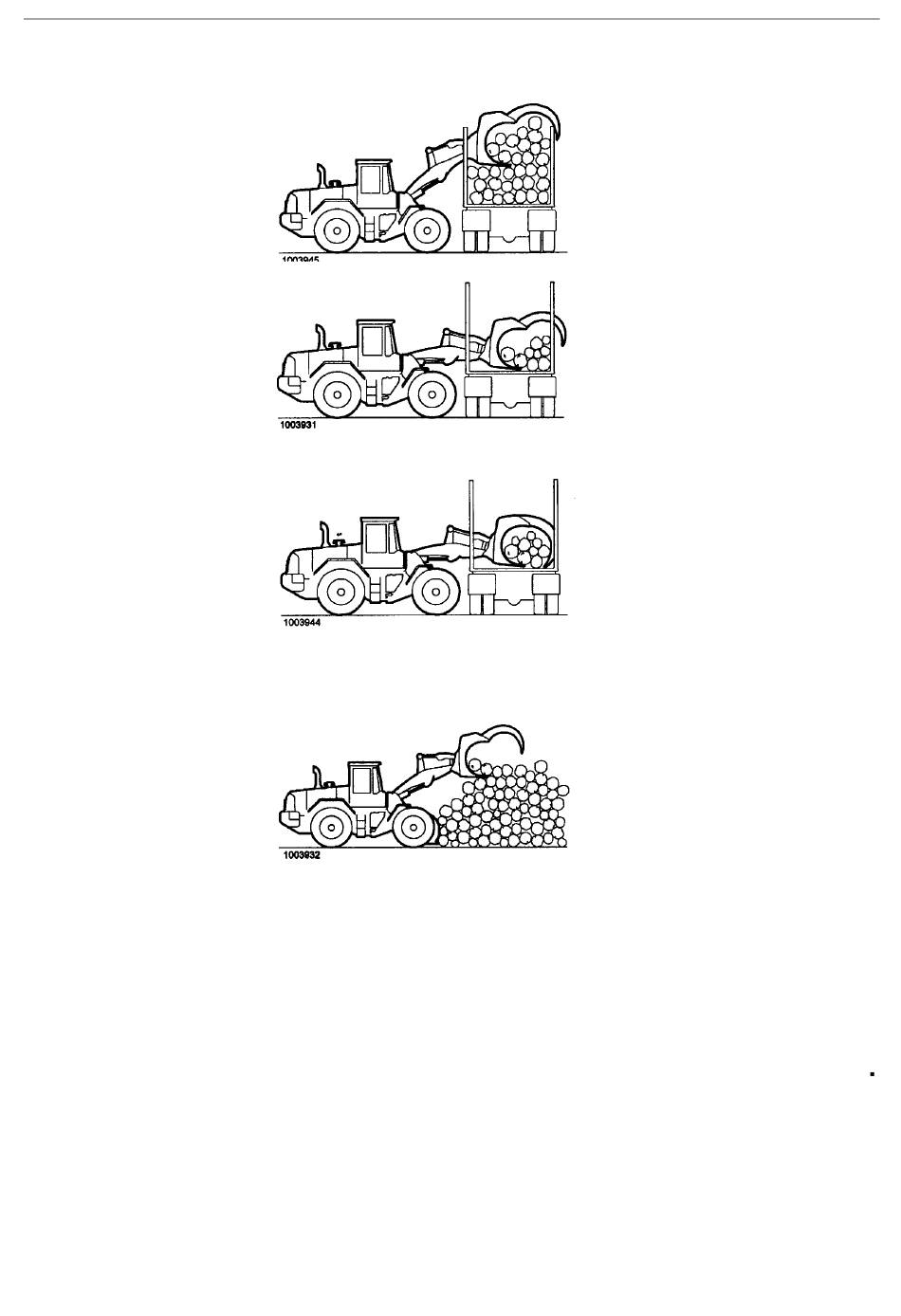

Unloading vehicle

Take great care when filling the grapple
so as not to damage the
load stakes on the bunks of the vehicle.
1 Approach the vehicle which is to be
unloaded with a raised and
fully open grapple.
2 Tilt the grapple forward and lay it
down over the load.
Close the grapple and begin to tilt it
slightly upwards. Then repeat
alternate closing and upward tilting of
the grapple until it is full.
NOTE: Take great care
unloading a vehicle, particularly
when there are only a few logs left. If
the grapple should grip
round the far edge of the platform
this could lead to damage.
Loading vehicle using timber
grapples
1 Make sure that each log lies correctly
in the grapple in order to
avoid "crows nests".
2 While approaching the vehicle, which
is to be loaded, raise the
grapple so that the logs clear the
stakes.
3 Lower the grapple to a level position
onto the bunks or platform
and place the bundle against the stakes
on the far side.
4 Open the grapple fully and carefully
reverse.

Stacking

On machines with Boom Suspension
System it is recommended
that speed-dependent position
selected. The precision increases and
the risk of "crows nests" is reduced.
NOTE: Do not use floating position
when handling timber.
1 Keep the grapple as near the stack as
possible to prevent logs
falling down.
2 Tilt the grapple slightly forward.
3 Carefully open the clamping arm fully
so that the logs can roll out of the
grapple.
4 Reverse carefully and at the same
time lower the grapple and hold it close
to the load to prevent logs from falling.
• When using a grapple with heel/kick-
out, there is no need to tilt the grapple
forward. The lifting height of the
machine is better utilised and one can
build higher stacks. The heel kick-out
can also be used as a counter hold
when handling single logs.
Basic rule: Make sure that the logs
leave the grapple without falling.
Suitable gear: Gear selector in
position A
Mode selector: Position LIGHT
timber
when
is
98
‫ﻫﻨﮕﺎم ﭘﺮ ﻛﺮدن ﭼﻨﮕﻚ ﺑﺴﻴﺎر ﻣﺮاﻗﺐ ﺑﺎﺷﻴﺪ ﺗﺎ ﺑــﻪ اﻟـﻮار و‬
‫١. ﭼﻨﮕﻚ را ﺑﻠﻨﺪ ﻛ ـ ـﺮده و ﻛـﺎﻣ ﻼ ﹰ ﺑـﺎز ﻛﻨﻴـﺪ ﺗـﺎ ﺑﻨﻮاﻧﻴـﺪ‬
‫٢. ﭼﻨﮕﻚ را ﺑﻄﺮف ﺟﻠﻮ ﻛﺞ ﻛﻨﻴﺪ و ﺑ ـ ـﺮ روي اﻟـﻮار ﻗـﺮار‬
‫ﭼﻨﮕﻚ را ﺑﺒﻨﺪﻳﺪ و ﺑــﻪ آراﻣـﻲ آن را ﺑـﻪ ﻃـﺮف ﺑـﺎﻻ ﻛـﺞ‬
‫ﻛﻨﻴﺪ.ﺳﭙﺲ دوﺑﺎره ﭼﻨﮕ ـ ـﻚ را ﺑﺒﻨﺪﻳـﺪ و ﺑﻄـﺮف ﺑـﺎﻻ ﻛـﺞ‬
‫ﺗﻮﺟﻪ: ﻫﻨﮕﺎم ﺗﺨﻠﻴﻪ ﺑﺎر ﺑﺴﻴﺎر ﻣﺮاﻗﺐ ﺑﺎﺷ ـ ـﻴﺪ ﺑﻮﻳـﮋه‬
‫ﻫﻨﮕﺎﻣﻴﻜﻪ ﭼﻨﮕﻚ ﺑﺎ ﻟﺒﻪ ﻃﺮف دﻳﮕﺮ اﺗﺎق ﺗﻤﺎس ﭘﻴﺪا‬
‫ﻣﻴﻜﻨﺪ زﻳﺮا اﺣﺘﻤﺎل آﺳﻴﺐ دﻳﺪﮔﻲ اﺗﺎق ﺑﺎر ﻛـ ـﺎﻣﻴﻮن‬
‫١. دﻗﺖ ﻛﻨﻴﺪ اﻟﻮار ﻫﺎ در داﺧﻞ ﭼﻨﮕﻚ ﺑﺨﻮﺑــﻲ ﺑـﺮروي‬
،‫٢. ﻫﻨﮕﺎم ﻧﺰدﻳﻚ ﺷﺪن ﺑﻪ ﻛﺎﻣﻴﻮن و ﻳﺎ ﺳﻜﻮي ﺑﺎر ﮔﻴﺮي‬
‫ﭼﻨﮕﻚ را ﺑﺎﻻ ﺑﺒﺮﻳﺪ ﺗﺎ ﻛﺎﻣﻴﻮن و ﻳﺎ ﺳﻜﻮ را ﻛﺎﻣ ﻼ ﹰ ﻣﺸ ـ ـﺎﻫﺪه‬
‫٣. ﭼﻨﮕﻚ را در ﻳﻚ ﺳﻄﺢ ﺻﺎف ﺑﺮ روي ﺳﻜﻮ وﻳ ـ ـﺎ اﺗـﺎق‬
‫ﻛﺎﻣﻴﻮن ﭘﺎﻳﻴﻦ ﺑﻴﺎورﻳﺪ و دﺳﺘﻪ اﻟﻮار را در ﻃﺮف دﻳﮕﺮ ﺳﻜﻮ‬
‫٤. ﭼﻨﮕﻚ را ﺑﻄﻮر ﻛﺎﻣﻞ ﺑﺎز ﻛﺮده و ﺑﻄﺮف ﻋﻘﺐ ﺣﺮﻛـﺖ‬
‫در دﺳﺘﮕﺎه ﻫﺎﻳﻲ ﻛﻪ ﻣﺠﻬﺰ ﺑﻪ ﺳﻴﺴﺘﻢ ﺗﻌﻠﻴﻖ ﺑﻮم ﻫﺴــﺘﻨﺪ‬
speed-
‫اﺳﺘﻔﺎده ﻛﻨﻴﺪ ﺗﺎ دﻗﺖ در ﻛﺎر اﻓﺰاﻳﺶ ﻳﺎﻓﺘ ـ ـﻪ‬
.‫و از اﻳﺠﺎد ﻓﻀﺎي ﺧﺎﻟﻲ در ﻻﺑﻼي اﻟﻮار ﻫﺎ ﺟﻠﻮﮔﻴﺮي ﺷﻮد‬
‫ﺗﻮﺟﻪ: ﻫﻨﮕ ـ ـﺎم ﺟﺎﺑﺠـﺎﻳﻲ اﻟـﻮار از وﺿﻌﻴـﺖ ﺷـﻨﺎور‬
‫١. ﭼﻨﮕﻚ را ﺗﺎ ﻧﺰدﻳﻜﺘﺮﻳﻦ ﻧﻘﻄﻪ در ﻣﺤﻞ اﻧﺒﺎﺷ ـ ـﺖ اﻟـﻮار‬
‫٣. ﺷﺎﺧﻚ ﻫﺎ را ﺑﺪﻗﺖ ﺑﺎز ﻛﻨﻴﺪ ﺗﺎ ﺗﻨﻪ ﻫﺎي اﻟﻮار از داﺧﻞ‬
‫٤. آﻫﺴﺘﻪ ﺑﻪ ﻋﻘﺐ ﺣﺮﻛﺖ ﻛﻨﻴــﺪ و ﻫﻤﺰﻣـﺎن ﭼﻨﮕـﻚ را‬
‫ﻫﻨﮕﺎم اﺳﺘﻔﺎده از ﭼﻨﮕﻚ ﺑﺎ ﭘﺎﺷﻨﻪ ﺿﺮﺑــﻪ زن، ﻧﻴـﺎزي‬
‫ﺑﻪ ﻛﺞ ﻛﺮدن ﭼﻨﮕﻚ ﺑﻄﺮف ﺟﻠ ـ ـﻮ ﻧﻴﺴـﺖ و از ارﺗﻔـﺎع ﺑـﺎﻻ‬
‫روي ﺑﺎزوﻫﺎي دﺳﺘﮕﺎه ﺑﻬﺘﺮ ﻣﻲ ﺗﻮان ﻛﻤﻚ ﮔﺮﻓﺖ و اﻟﻮارﻫﺎ‬
‫را ﺗﺎ ارﺗﻔﺎع ﺑﻴﺸﺘﺮي ﻣﻲ ﺗﻮان اﻧﺒﺎر ﻛﺮد. ﻫﻨﮕﺎم ﺣﻤﻞ ﻳــﻚ‬
‫ﺗﻨﻪ ﺑﺰرگ درﺧﺖ از ﭘﺎﺷﺘﻪ ﺿﺮﺑــﻪ زن ﻣﻴﺘـﻮان ﺑـﻪ ﻋﻨـﻮان‬
‫ﻗﺎﻧﻮن اول: از ﻋﺪم اﺣﺘﻤﺎل ﺳ ـ ـﻘﻮط ﺗﻨـﻪ ﻫـﺎي درﺧـﺖ از‬
‫ﭼﻨﮕﻚ ﻫﺎي ﺣﻤﻞ اﻟﻮار‬
‫ﻛﺎر ﺑﺎﭼﻨﮕﻚ ﻫﺎي ﺣﻤﻞ اﻟﻮار‬
‫ﺗﺨﻠﻴﻪ ﺑﺎر از ﻛﺎﻣﻴﻮن‬
.‫اﺗﺎق ﺑﺎر ﻛﺎﻣﻴﻮن آﺳﻴﺒﻲ ﻧﺮﺳﺪ‬
.‫ﻛﺎﻣﻴﻮن را ﺑﺨﻮﺑﻲ ﻣﺸﺎﻫﺪه ﻛﻨﻴﺪ‬
.‫ﻛﻨﻴﺪ ﺗﺎ زﻣﺎﻧﻴﻜﻪ ﭼﻨﮕﻚ از اﻟﻮار ﭘﺮ ﺷﻮد‬
‫ﺑﺎرﮔﻴﺮي ﻛﺎﻣﻴﻮن ﺑﻪ ﻛﻤﻚ ﭼﻨﮕﻚ‬
.‫ﻫﻢ ﻗﺮار ﮔﺮﻓﺘﻪ ﺑﺎﺷﻨﺪ‬
.‫و ﻳﺎ اﺗﺎق ﺑﺎر ﻗﺮار دﻫﻴﺪ‬
‫اﻧﺒﺎر ﻛﺮدن اﻟﻮار‬
‫ﺗﻮﺻﻴﻪ ﻣﻴﺸ ـ ـﻮد از وﺿﻌﻴـﺖ واﺑﺴـﺘﻪ ﺑـﻪ ﺳـﺮﻋﺖ‬
.‫دﺳﺘﮕﺎه اﺳﺘﻔﺎده ﻧﻜﻨﻴﺪ‬
.‫ﺟﻠﻮ ﺑﺒﺮﻳﺪ ﺗﺎ از ﺳﻘﻮط اﻟﻮار ﺟﻠﻮﮔﻴﺮي ﺷﻮد‬
.‫٢. ﭼﻨﮕﻚ را ﺑﺎ آراﻣﻲ ﺑﻄﺮف ﺟﻠﻮ ﻛﺞ ﻛﻨﻴﺪ‬
.‫ﭼﻨﮕﻚ ﺑﻪ ﺑﻴﺮون ﻏﻠﺖ ﺑﺨﻮرﻧﺪ‬
.‫ﺑﺒﻨﺪﻳﺪ ﺗﺎ از ﺳﻘﻮط اﻟﻮار ﻫﺎ ﺑﻪ ﭘﺎﻳﻴﻦ ﺟﻠﻮﮔﻴﺮي ﺷﻮد‬
.‫وزﻧﻪ ﺗﻌﺎدل اﺳﺘﻔﺎده ﻧﻤﻮد‬
.‫داﺧﻞ ﭼﻨﮕﻚ اﻃﻤﻴﻨﺎن ﺣﺎﺻﻞ ﻛﻨﻴﺪ‬
‫اﻫﺮم اﻧﺘﺨﺎب دﻧﺪه در وﺿﻌﻴﺖ‬
A
‫وﺿﻌﻴﺖ‬
LIGHT
.‫دﻫﻴﺪ‬
.‫وﺟﻮد دارد‬
.‫ﻛﻨﻴﺪ‬
.‫ﻛﻨﻴﺪ‬
dependent
:‫دﻧﺪه ﻣﻨﺎﺳﺐ‬
:‫وﺿﻌﻴﺖ ﻛﻨﺘﺮل اﻫﺮم‬
