Deutschmann Automation GmbH & Co. KG
12 Technical data
In this chapter you will find all necessary technical data on UNIGATE® IC.
All measurements in mm.
12.1
Mechanics of the UNIGATE® IC
12.1.1

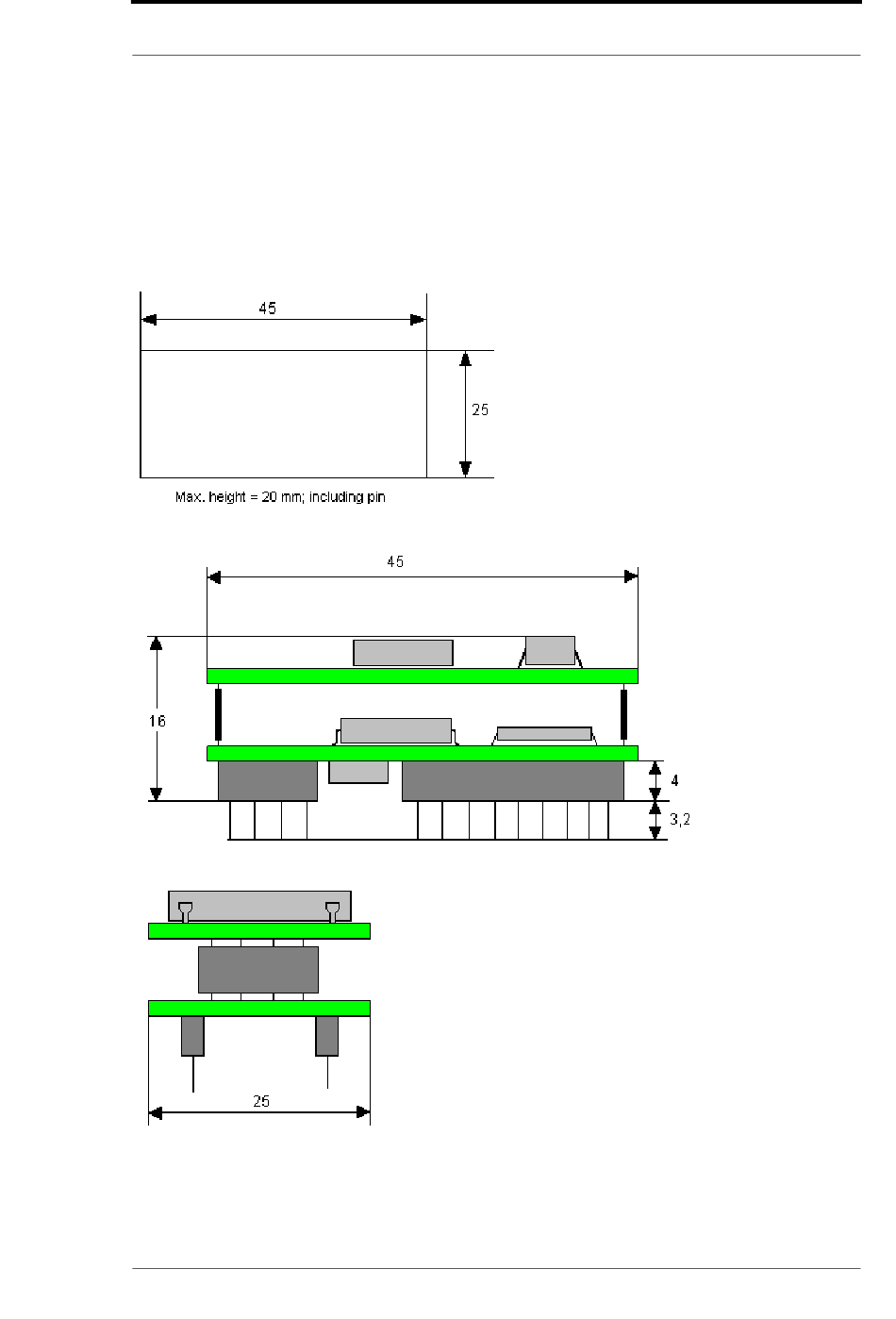

General dimensions of UNIGATE
12.1.2
Dimensions UNIGATE® IC-DeviceNet (old hardware)
The pins of UNIGATE® IC - DeviceNet are arranged with a grid spacing of 2.54 mm.
In case you intend to use other fieldbus ICs, the maximum overall height of
pins) has to be taken into consideration.
7.10.10
Instruction manual UNIGATE
IC
®
®
IC - DeviceNet V. 2.7
Technical data
≤
20 mm (including
31
