Deutschmann Automation GmbH & Co. KG

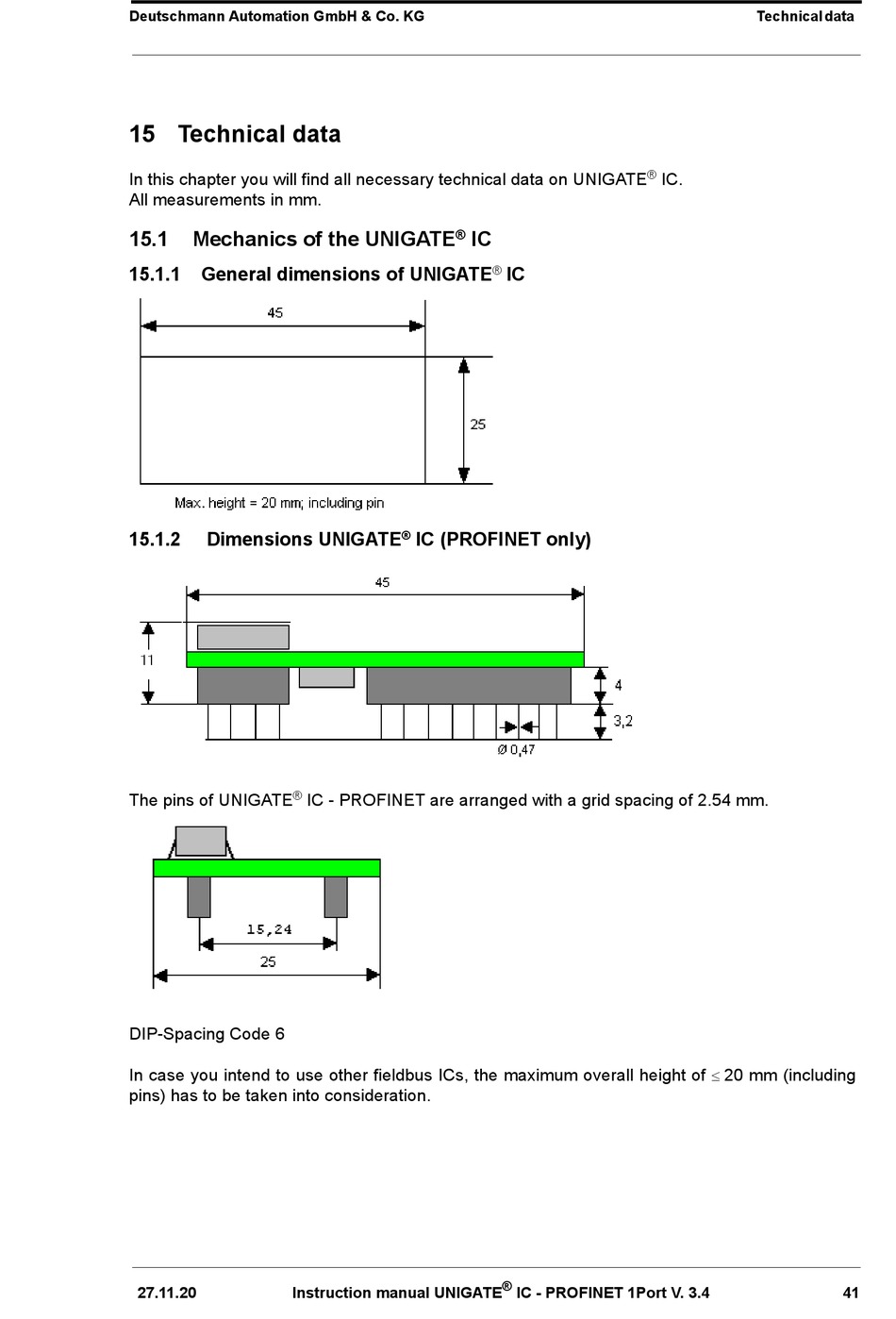

15 Technical data
In this chapter you will find all necessary technical data on UNIGATE
All measurements in mm.
15.1
Mechanics of the UNIGATE
15.1.1
General dimensions of UNIGATE
15.1.2
Dimensions UNIGATE
®
The pins of UNIGATE
DIP-Spacing Code 6
In case you intend to use other fieldbus ICs, the maximum overall height of
pins) has to be taken into consideration.
27.11.20
Instruction manual UNIGATE
®
IC
®
IC (PROFINET only)
IC - PROFINET are arranged with a grid spacing of 2.54 mm.
®
IC.
®
IC
®
IC - PROFINET 1Port V. 3.4
Technical data
20 mm (including
41
