3.2 WIRING
3 HARDWARE
3.2WIRING
3.2.1 TYPICAL WIRING DIAGRAM
Recommended cable section: 12/16 AWG
Copper conductor only
Tightening torque: 1.2 Nm
3

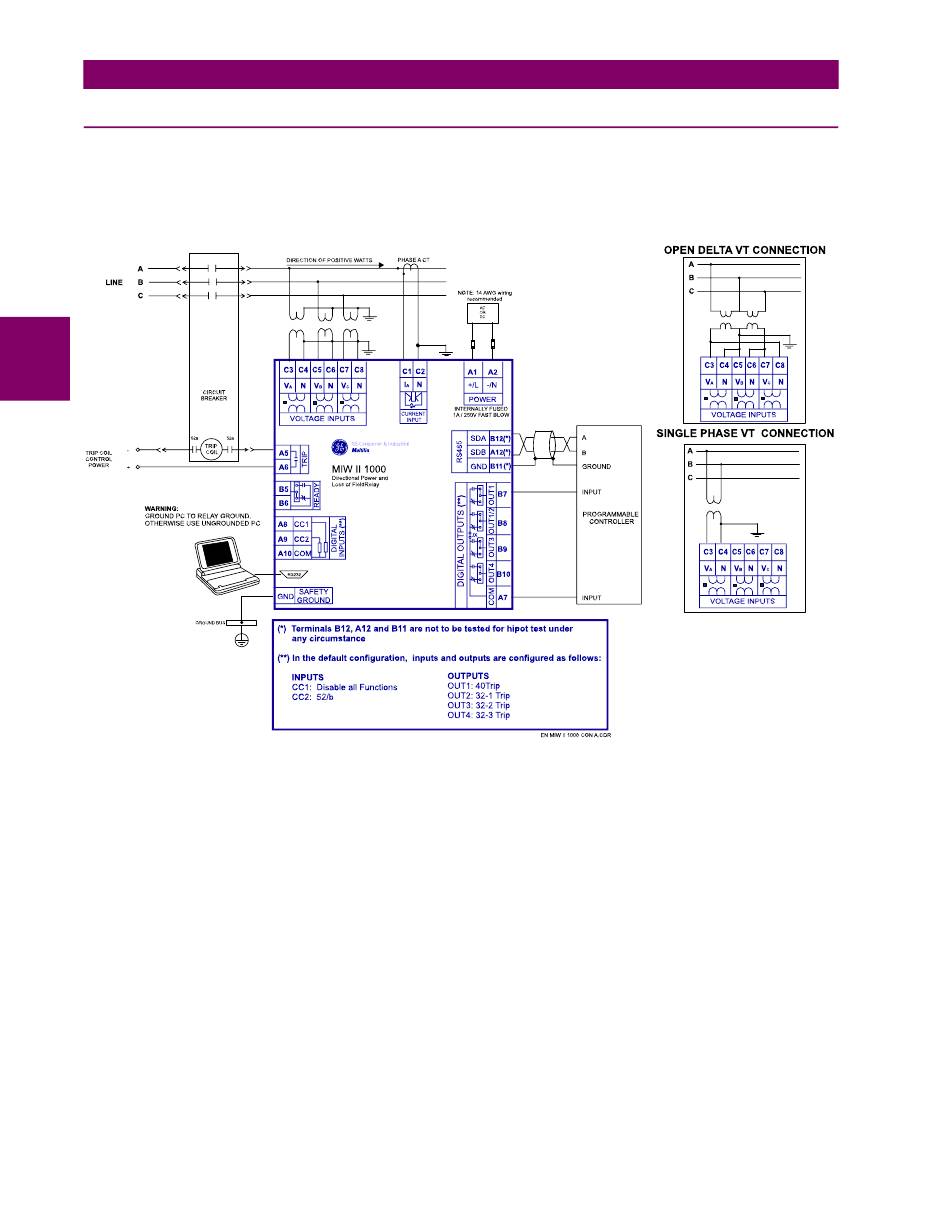

Figure 3–4: TYPICAL WIRING DIAGRAM FOR MIWII 1000 RELAY
3-4
MIWII Directional Power Protection System
GEK-113308
