3.1 DESCRIPTION 3 HARDWARE

3.1.1 MOUNTING

The unit is designed for semi-flush mounting. The relay is secured to the panel with the 4 M6 screws provided with the
unit. This allows the user access to the front keypad, display and communication port. The wiring is at the rear of the unit.
The drilling dimensions are shown on the drilling dimension diagram.
Note: Dimensions are shown in inches (mm).
3

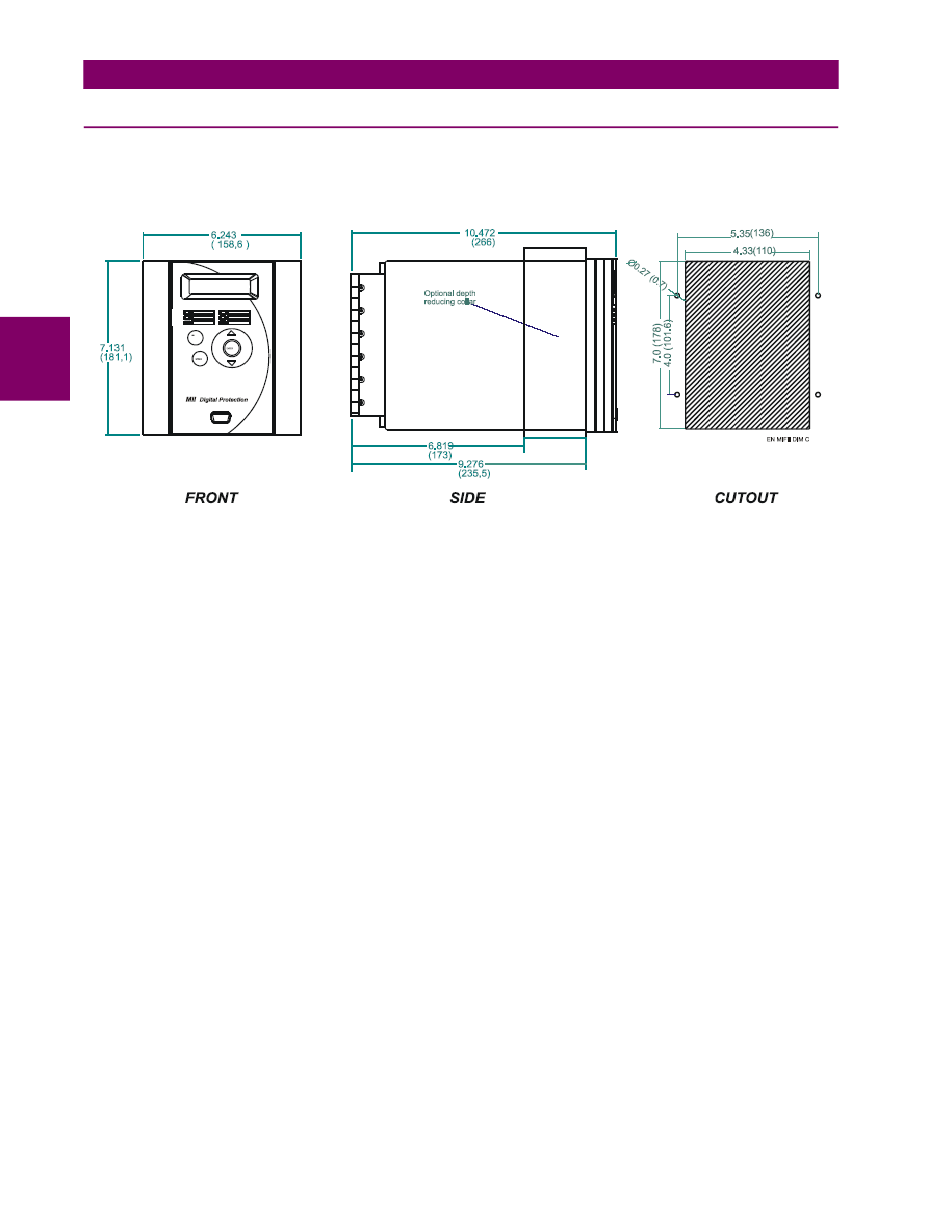

Figure 3–2: MOUNTING AND DIMENSIONS DRAWING FOR MIWII MODELS WITH DEPTH REDUCING COLLAR
