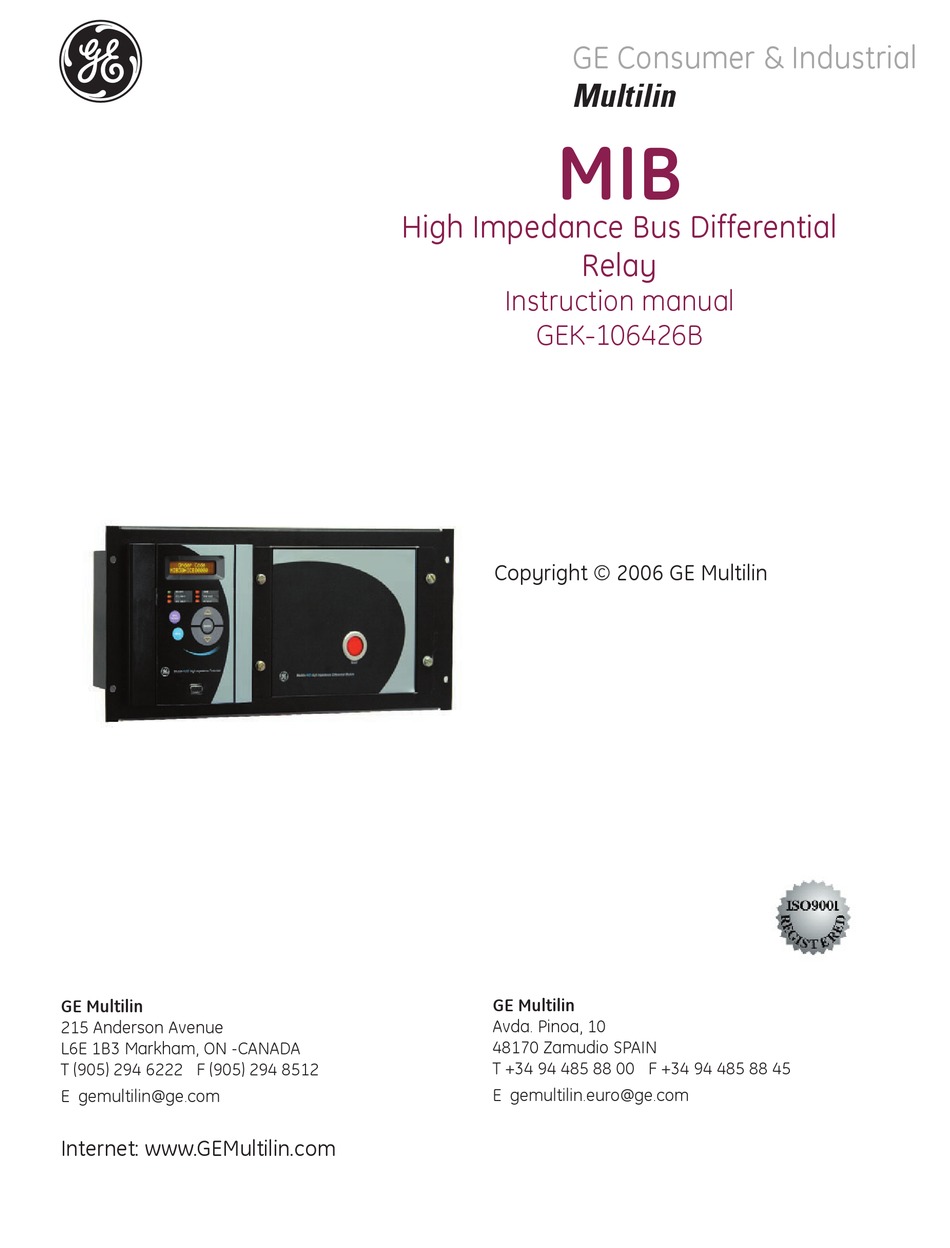

High Impedance Bus Differential
Instruction manual
GEK-106426B
Copyright © 2006 GE Multilin
GE Multilin
Avda. Pinoa, 10
48170 Zamudio SPAIN
T +34 94 485 88 00 F +34 94 485 88 45
E gemultilin.euro@ge.com
Relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multilin MIB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GE Multilin MIB

Summary of Contents for GE Multilin MIB

  • Page 1 GE Consumer & Industrial Multilin High Impedance Bus Differential Relay Instruction manual GEK-106426B Copyright © 2006 GE Multilin GE Multilin GE Multilin Avda. Pinoa, 10 215 Anderson Avenue 48170 Zamudio SPAIN L6E 1B3 Markham, ON -CANADA T +34 94 485 88 00 F +34 94 485 88 45 T (905) 294 6222 F (905) 294 8512 E gemultilin.euro@ge.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. GETTING STARTED 1.1 INSPECTION CHECKLIST 1.2 ENERVISTA MII SETUP SOFTWARE 1.2.1 SYSTEM REQUIREMENTS ................1-4 1.2.2 SAFETY INSTRUCTIONS ................. 1-4 1.2.3 INSTALLATION....................1-5 1.3 MII RELAY FAMILY HARDWARE 1.3.1 MOUNTING & WIRING ..................1-11 1.3.2 COMMUNICATIONS..................1-11 1.3.3 FACEPLATE KEYPAD &...

  • Page 3: Enervista Mii Setup Software

    TABLE OF CONTENTS 3.3 WIRING 3.3.1 TYPICAL WIRING DIAGRAM................3-6 3.3.2 CONTROL POWER....................3-7 3.3.3 AC CURRENT TRANSFORMER INPUTS ............3-8 3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE 3.4.1 MECHANICAL DESCRIPTION................3-9 3.4.2 MOUNTING ......................3-9 3.4.3 REAR DESCRIPTION ..................3-9 3.4.4 CONTACT INPUTS / OUTPUTS ..............3-10 3.4.5 OUTPUT CONTACTS CONFIGURATION ............3-11 3.4.6 OUTPUTS ISOLATION ..................3-12...
  • Page 4 TABLE OF CONTENTS 5.3.5 DIFFERENTIAL ELEMENT 87 2 GROUP 2 ............5-5 5.3.6 EVENTS AND OSCILLOGRAPHY MASKS ............5-6 5.3.7 OSCILLOGRAPHY MASKS ................5-7 5.4 TIME SYNCHRONIZATION 6. I/0 CONFIGURATION 6.1 INPUT CONFIGURATION 6.1.1 DESCRIPTION OF INPUTS ................6-1 6.1.2 INPUT ELEMENTS ....................
  • Page 5 TABLE OF CONTENTS 8.17 ADVANCED SETTINGS 9. INSTALLATION AND 9.1 INSTALLATION MAINTENANCE 9.2 GROUND CONNECTION AND DISTURBANCES SUPPRESSION 9.3 MAINTENANCE 9.4 CLEANING INSTRUCTIONS A. MODBUS A.1 READING VALUES A.2 COMMAND EXECUTION A.2.1 COMMAND STRUCTURE................10-4 A.2.2 EXAMPLE ......................10-6 A.3 SYNCHRONIZATION A.4 WRITING SETTINGS A.4.1 FRAME STRUCTURE ..................10-9 A.4.2...
  • Page 6 1 GETTING STARTED 1 GETTING STARTED To help ensure years of trouble free operation, please read through the following chapter for information to help guide you through the initial installation procedures of your new relay. CAUTION: THE OPERATOR OF THIS INSTRUMENT IS ADVISED THAT IF THE EQUIPMENT IS USED IN A MANNER NOT SPECIFIED IN THIS MANUAL, THE PROTECTION PROVIDED BY THE EQUIPMENT MAY BE IMPAIRED INSTALLATION MUST BE ACCORDING TO THE NATIONAL ELECTRIC CODE OF THE APPROPRIATE COUNTRY GEK-106426B...
  • Page 7 Figure 1–1: RELAY IDENTIFICATION LABEL ) (MIB???) Ensure that the mounting screws have been included with the relay. For product information, instruction manual updates, and the latest software updates, please visit the GE Multilin Home Page (www.GEindustrial.com/multilin). MIB High Impedance Bus Differntial Relay...
  • Page 8 1 GETTING STARTED 1.1 INSPECTION CHECKLIST Note: If there is any physical damage detected on the relay, or any of the contents listed are missing, please contact GE Multilin immediately at: EUROPE, MIDDLE EAST AND AFRICA: GE MULTILIN Av. Pinoa, 10 48170 Zamudio, Vizcaya (SPAIN) Tel.: (34) 94-485 88 54, Fax: (34) 94-485 88 38...

  • Page 9: System Requirements

    In case of a firmware flashing process, due to the risk of losing communication, GE Multilin will not be responsible in case of a communication failure if the relay and PC are not grounded to the same point.

  • Page 10: Installation

    After ensuring the minimum requirements for using EnerVista MII Setup are met (see previous section), use the following procedure to install the EnerVista MII Setup from the enclosed GE EnerVista CD. Insert the GE EnerVista CD into your CD-ROM drive.
  • Page 11 1.2 ENERVISTA MII SETUP SOFTWARE 1 GETTING STARTED Figure 1–4: If “Web” option is selected, choose from the list the software program related to the specific model and click the Download Now button to obtain the installation program. When EnerVista detects that there is already a version of the program in the Software Library, you can choose whether to install it directly or to check for more versions.
  • Page 12 1 GETTING STARTED 1.2 ENERVISTA MII SETUP SOFTWARE If we click the “Check for Updated Versions” button, the program will proceed to search for the different versions of set- up program from the Web. Figure 1–6: EnerVista Launchpad will obtain the installation program from the Web. If the version you already have is the last one on the Web, the following screen will appear Figure 1–7: 10.
  • Page 13 1.2 ENERVISTA MII SETUP SOFTWARE 1 GETTING STARTED 11. Double-click the installation program once its download is complete, to install the ENERVISTA MII SETUP software. 12. Select the complete path, including the new directory name, where the ENERVISTA MII SETUP will be installed. 13.
  • Page 14 1 GETTING STARTED 1.2 ENERVISTA MII SETUP SOFTWARE 16. The default program group where the application will be added to is shown in the Selected Program Folder window. Click Next to begin the installation process, and all the necessary program files will be copied into the chosen directory. Figure 1–10: 17.
  • Page 15 1.2 ENERVISTA MII SETUP SOFTWARE 1 GETTING STARTED 18. Click Finish to end the installation. The MII device will be added to the list of installed IEDs in the EnerVista Launchpad window, as shown below. Figure 1–12: 1-10 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 16: Mii Relay Family Hardware

    HARDWARE chapter. To communicate with the relay’s RS485 port from a computer’s RS232 port, a RS232/RS485 converter box is required. GE Multilin offers F485, DAC300 and RS232/485 converters. This converter box is connected to the computer using a “straight through”...
  • Page 17 1.3 MII RELAY FAMILY HARDWARE 1 GETTING STARTED Figure 1–13: RELAY KEYPAD AND DISPLAY Using this keypad it is possible to access all the different menus in the relay and to view and change settings. 1-12 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 18: Using The Keypad And Display

    1 GETTING STARTED 1.4 USING THE KEYPAD AND DISPLAY 1.4USING THE KEYPAD AND DISPLAY 1.4.1 HIERARCHICAL MENUS Figure 1–14: MOVING THROUGH THE HIERARCHICAL MENU As shown in Figure 1–14:, there are 3 hierarchical levels to access the information in the relay. The first level (Main screen) shows the current value for each phase (Idiff , Idiff , Idiff...
  • Page 19 1.4 USING THE KEYPAD AND DISPLAY 1 GETTING STARTED 1-14 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 20: Product Description

    2 PRODUCT DESCRIPTION 2.1 SUMMARY 2 PRODUCT DESCRIPTION 2.1SUMMARY 2.1.1 GENERAL OVERVIEW PROTECTION COMMUNICATIONS • Two Differential Protection Units (87-1 and 87-2) • Front RS232 port CONTROL • Rear RS485 port • Reset 86 • Close USER INTERFACE • 2x16 LCD Display METERING •...

  • Page 21: Intro

    RS485 port can be converted into an RS232 port or into a fibre optic (plastic or glass) serial port by using the GE DAC300 module. The EnerVista MII Setup communication software is the Windows® based program used to communicate with the relay.
  • Page 22 2 PRODUCT DESCRIPTION 2.2 INTRO Figure 2–1: SINGLE LINE DIAGRAM. BUS-BAR APPLICATION. MIB 30 Figure 2–2: SINGLE LINE DIAGRAM. GENERATOR APPLICATION. MIB 30 GEK-106426B MIB High Impedance Bus Differntial Relay...
  • Page 23 2.2 INTRO 2 PRODUCT DESCRIPTION Figure 2–3: SINGLE LINE DIAGRAM. REACTANCE APPLICATION. MIB 30 Figure 2–4: SINGLE LINE DIAGRAM. ONE WINDING-RGF APPLICATION. MIB 10 MIB High Impedance Bus Differntial Relay GEK-106426B...
  • Page 24 2 PRODUCT DESCRIPTION 2.2 INTRO Figure 2–5: SINGLE LINE DIAGRAM. TWO WINDING-RGF APPLICATION. MIB 20 GEK-106426B MIB High Impedance Bus Differntial Relay...

  • Page 25: Access Security Features

    2.3 ACCESS SECURITY FEATURES 2 PRODUCT DESCRIPTION 2.3ACCESS SECURITY FEATURES MII family relays have several security features to restrict rear port operation when an operator is making changes by the local port or relay keypad, and/or to block access to setting changes for non-authorized users. The relay has an access priority system, giving priority to local access over remote access.

  • Page 26: Differential Units

    2 PRODUCT DESCRIPTION 2.4 DIFFERENTIAL UNITS 2.4DIFFERENTIAL UNITS 2.4.1 DIFFERENTIAL UNITS (87-1) (87-2) MIB provides 2 Differential Units, 87 1 and 87 2. Each one can be enable/disable and set independently. These elements consist on overcurrent detectors that measure the current flowing in the High-impedance differential circuits.

  • Page 27: Calculation Of Settings

    CT has negligible leakage reactance and that all the CTs have the same ratio. If all of these conditions do not exist, please refer the application to the nearest GE Multilin Sales Office. 2.5.1 SETTING OF THE DIFFERENTIAL ELEMENT It is assumed that an external fault causes complete saturation of the CT in the faulted circuit.

  • Page 28: Minimum Fault To Trip 87

    2 PRODUCT DESCRIPTION 2.5 CALCULATION OF SETTINGS 2.5.2 MINIMUM FAULT TO TRIP 87 After the pickup setting of 87 has been established for an application, a check should be made to determine the minimum internal fault current that just cause the unit to operate. If this value is less than the minimum internal fault current expected, the pickup setting is suitable for the application.
  • Page 29 2.5 CALCULATION OF SETTINGS 2 PRODUCT DESCRIPTION MOV Voltage & Current Characteristics 10000 1000 1000 10000 Current in mA Figure 2–6: MOV VOLTAGE & CURRENT CHARACTERISTICS EVENTS MIB stores an historical record with the last 24 events. Each event contains the event description, date and time (4 ms accuracy), the current values in phases and ground at that moment, and a summary of the status signals that can produce events, and whether they were active or not in that moment.
  • Page 30 2 PRODUCT DESCRIPTION 2.5 CALCULATION OF SETTINGS Table 2–1: LIST OF EVENTS 87 2 Disable by input Trip disabled (by DI) Protection status Output 1 Output 2 Output 3 Output 4 Digital Input 1 Digital Input 2 Sett. change disable Trip operation by input Trip operation by command Reset latch aux...
  • Page 31 2.5 CALCULATION OF SETTINGS 2 PRODUCT DESCRIPTION Trip of one of the protection functions Oscillography trigger by communications Oscillography trigger by digital input In the ADVANCED SETTINGS group, there is a sub-group called OSCILLOGRAPHY MASKS, from where the above- mentioned causes can be masked. They are detailed in the SETPOINT – SETPOINT – ADVANCED SETTINGS – OSCILOGRAPHY MASK section.

  • Page 32: Multiple Setting Groups

    2 PRODUCT DESCRIPTION 2.6 MULTIPLE SETTING GROUPS 2.6MULTIPLE SETTING GROUPS Two independent Setting Groups are available in the permanent (non-volatile) memory of the MIB relay. Only one of the two is active at a given time. Users can select which setting group is active using a setting, sending a command to the relay from the communications program, or by a digital input.

  • Page 33: Measurement And Self-Test

    2.7 MEASUREMENT AND SELF-TEST 2 PRODUCT DESCRIPTION 2.7MEASUREMENT AND SELF-TEST 2.7.1 MEASUREMENT MIB provides actual values for differential currents. Accuracy is 1% at nominal current, and 3% in the complete range. 2.7.2 SELF-TEST Self-monitoring tests are carried out both when the unit is started up and during normal operation. Any internal problem detected by the self-monitoring function will issue an alarm and the READY output contact will be released, indicating an out of service condition.

  • Page 34: User Interface

    2 PRODUCT DESCRIPTION 2.8 USER INTERFACE 2.8USER INTERFACE 2.8.1 LED TARGETS There are 6 LED Targets in the front of the relay. The first one is green (‘READY’ -relay in service-) and cannot be configured; the second one is red and fixed for trip, while the other 4 can be configured by the user in OPTION1 and OPTION2 models.

  • Page 35: Communication Ports

    2.8 USER INTERFACE 2 PRODUCT DESCRIPTION 2.8.3 COMMUNICATION PORTS The front RS232 and the rear RS485 port provide interface with the relay. All serial ports use the Modbus® RTU protocol and may be connected to system computers with baud rates from 300 to 19200 bps. Up to 32 MIB relays can be connected (daisy-chained) on the same communication circuit.

  • Page 36: Ordering Codes

    2 PRODUCT DESCRIPTION 2.9 ORDERING CODES 2.9ORDERING CODES MIB is supplied as 4U high and ¼ of a 19” rack wide.MIB relays can be mounted in ¼ rack cases, one relay per case. The information required to completely specify the relay is provided in the following table: DESCRIPTION Number of High Impedance Differential Elements 1 winding transformer Restricted Ground Fault application...

  • Page 37: Technical Specifications

    2.10 TECHNICAL SPECIFICATIONS. 2 PRODUCT DESCRIPTION 2.10TECHNICAL SPECIFICATIONS. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE 2.10.1 PROTECTION ELEMENTS 2.10.1.1 DIFFERENTIAL ELEMENTS (87 1, 87 2) Current Input: Fundamental Rated Current Pickup Level: 0.005 to 0.400 A in steps of 0.01 A Reset Level: 97% to 98% typical ±3% in the complete range ±1mA...

  • Page 38: Power Supply

    2 PRODUCT DESCRIPTION 2.10 TECHNICAL SPECIFICATIONS. 2.10.4 POWER SUPPLY 2.10.4.1 LOW RANGE Rated DC Voltage: 24 to 48 Vdc Min./Max. DC Voltage: 19 / 58 Vdc 2.10.4.2 HIGH RANGE Rated DC Voltage: 110 to 250 Vdc Min./Max. DC Voltage: 88 / 300 Vdc Rated AC Voltage: 110 to 230 Vac @ 50 –...

  • Page 39: Communications

    2.10 TECHNICAL SPECIFICATIONS. 2 PRODUCT DESCRIPTION Max. Ratings for 100.000 operations: MAKE&CARRY VOLTAGE MAKE&CARRY 0.2 SEC BREAK MAX LOAD CONTINUOUS DC Resistive 24 Vdc 16 A 48 A 16 A 384W 48 Vdc 16 A 48 A 2.6 A 125W 125 Vdc 16 A 48 A...

  • Page 40: Technical Specifications For Hid Module

    2 PRODUCT DESCRIPTION 2.11 TECHNICAL SPECIFICATIONS FOR HID MODULE 2.11TECHNICAL SPECIFICATIONS FOR HID MODULE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 2.11.1 VOLTAGE LIMITERS TECNOLOGY: MOV (METAL OXYDE VARISTOR) Nominal Voltage (VDC): 350 V Nominal Voltage (VAC): 290 V Nominal Current (DC): 4.7 mA ±...

  • Page 41: Environmental

    2.11 TECHNICAL SPECIFICATIONS FOR HID MODULE 2 PRODUCT DESCRIPTION 2.11.2 LATCHING RELAY NOMINAL VOLTAGE Latching relay LO 48 VDC Latching relay HI 125 VDC Operation range 80 % to 150 % of nominal voltage Consumption 8 W at nominal voltage Pickup value 60% of nominal voltage OPERATING TIME (at nominal voltage)

  • Page 42: Production Tests

    2 PRODUCT DESCRIPTION 2.11 TECHNICAL SPECIFICATIONS FOR HID MODULE Electrostatic Discharge: IEC 60255-22-2 EN 61000-4-2 8 kV in contact, 15 kV through air. Radiointerference: IEC 60255-22-3: 40 MHz, 151 MHz, 450 MHz and cellular phone. Radiated Electromagnetic fields with ENV 50140 10 V/m amplitude modulation.
  • Page 43 2.11 TECHNICAL SPECIFICATIONS FOR HID MODULE 2 PRODUCT DESCRIPTION 2-24 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 44: Hardware

    3 HARDWARE 3.1 DESCRIPTION 3 HARDWARE 3.1DESCRIPTION WARNING system incorporates electronic components that might be affected by electrostatic discharge currents flowing through certain component terminals. The main source of electrostatic discharges is human body, especially under low humidity conditions, with carpet floors or isolating shoes. If such conditions are present special care should be taken while manipulating modules.

  • Page 45: High Impedance Module Description

    3.2 HIGH IMPEDANCE MODULE DESCRIPTION 3 HARDWARE 3.2HIGH IMPEDANCE MODULE DESCRIPTION High impedance modules incorporate the following parts: Latching relay Resistors MOV (Metal Oxide Varistors) Reset button Metallic Case Figure 3–2: INTERNAL MOUNTING VIEW 3.2.1 MOUNTING The HID module is composed of a black metallic stainless steel case. The case contains a metallic panel to which the MOV (Metal Oxide Varistors) and the stabilizing resistors are hooked, as well as the connections base for the latching relay and internal connections among the stabilizing resistors, MOV, and latching relay contacts.
  • Page 46 3 HARDWARE 3.2 HIGH IMPEDANCE MODULE DESCRIPTION Wiring is made in the rear side of the module. Drilling dimensions are shown on the drilling dimension diagram. Figure 3–3: DIMENSIONS AND DRILLING FOR HID MODULE GEK-106426B MIB High Impedance Bus Differntial Relay...

  • Page 47: Mechanical Description

    3.2 HIGH IMPEDANCE MODULE DESCRIPTION 3 HARDWARE 3.2.2 MECHANICAL DESCRIPTION The HID module is available in a metallic case of ½ rack four units high, highly resistant to corrosion. It is made of stainless steel (AISI 304), coated with an epoxy layer, and the rest of the metallic pieces are covered with a high quality resistive coating that has successfully passed at least 96 hours in the salt spray chamber (S/N ASTM B-117).

  • Page 48: Rear Description

    3 HARDWARE 3.2 HIGH IMPEDANCE MODULE DESCRIPTION 3.2.3 REAR DESCRIPTION The relay is wired through the terminal blocks located at the rear of the unit. The maximum recommended cable section for this terminal board, with the appropriate terminal, is 6 mm (AWG 10).

  • Page 49: Wiring

    3.3 WIRING 3 HARDWARE 3.3WIRING 3.3.1 TYPICAL WIRING DIAGRAM Recommended cable section: 12/16 AWG Copper conductor only Tightening torque: 1.2 Nm Figure 3–5: TYPICAL WIRING DIAGRAM FOR RELAY Figure 3–6: TYPICAL WIRING DIAGRAM FOR RELAY MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 50: Control Power

    3 HARDWARE 3.3 WIRING 3.3.2 CONTROL POWER CAUTION: CONTROL POWER SUPPLIED TO THE RELAY MUST MATCH THE RATED VOLTAGE OF THE RELAY. IF THE VOLTAGE IS APPLIED TO THE WRONG TERMINALS, DAMAGE MAY OCCUR. Table 3–1: CONTROL POWER VOLTAGE RANGE RANGE OPERATION RANGE 38.4-57.6 Vdc...

  • Page 51: Ac Current Transformer Inputs

    3.3 WIRING 3 HARDWARE 3.3.3 AC CURRENT TRANSFORMER INPUTS MIB current inputs are composed of four elements: Stabilizing resistor (inside HID). Varistor (inside HID) Contact from latching relay (inside HID) Current input in the high-speed overcurrent module. Depending on selected MIB model, the inputs configuration of High Impedance Device may change. If the Number of High Impedance Differential Elements is 1, the HID will have only one input, If the Number of High Impedance Differential Elements is 2, the HID will have two inputs, and If it is Bus / machine application it will have three inputs.

  • Page 52: High-Speed Overcurrent Protection Module

    3 HARDWARE 3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE 3.4HIGH-SPEED OVERCURRENT PROTECTION MODULE 3.4.1 MECHANICAL DESCRIPTION The high-speed overcurrent module is available in a box of a quarter of 19” rack four units high. The metallic case of the unit is highly resistant to corrosion. It is made of stainless steel (AISI 304), coated with an epoxy layer, and the rest of the metallic pieces are covered with a high quality resistive coating that has successfully passed at least 96 hours in the salt spray chamber (S/N ASTM B-117).

  • Page 53: Contact Inputs / Outputs

    3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE 3 HARDWARE 3.4.4 CONTACT INPUTS / OUTPUTS High-speed overcurrent modules have two contact inputs named CC1 and CC2. Default configuration for both inputs is: • CC1: 86a contact • CC2: All functions disable CC1 is intended to be used with an auxiliary contact from the latching relay (A7-A8 is shown in external wiring diagram). In this way, high-speed overcurrent module is able to know the latching relay status.

  • Page 54: Output Contacts Configuration

    3 HARDWARE 3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE 3.4.5 OUTPUT CONTACTS CONFIGURATION MIB relays provide one trip contact, one alarm (system ready) contact and four auxiliary contacts sharing one common located in the high-speed overcurrent module. All output relays are form C relays.All output relays are form C relays. Only one of the two states of the form C relay is connected to the output terminal.

  • Page 55: Outputs Isolation

    3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE 3 HARDWARE 3.4.6 OUTPUTS ISOLATION MII relays provide one trip contact, one alarm contact and four configurable contacts (option 1 and 2) sharing one common. An internal jumper, called Jx jumper, has been provided to allow splitting the four configurable outputs into two isolated groups.
  • Page 56 3 HARDWARE 3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE Each output has a different configuration, and it is able to operate independently to the others. If Jx jumper is removed, the output contact configuration change as shown in the following figure: After removing the Jx Jumper, the outputs are divided in two groups: Independent and isolated. Group1: Terminals B8-B7: Provide one output contact combining OUT1 and OUT2 Group 2:...
  • Page 57 3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE 3 HARDWARE Figure 3–13: OUT2 AND OUT1 CONFIGUTATION TO ACT AS A NORMALLY OPEN CONTACT 3-14 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 58: Rs232 Front Communications Port

    3 HARDWARE 3.4 HIGH-SPEED OVERCURRENT PROTECTION MODULE 3.4.7 RS232 FRONT COMMUNICATIONS PORT A 9-pin RS232C serial port is located on the front of the relay for programming with a portable (personal) computer. All that is required to use this interface is a personal computer running the ENERVISTA MII SETUP software. Next figure shows the communications cable configuration.

  • Page 59: Rs485 Communications Port

    “A” and “B”, although many devices use terminals named “+” and “-“. As a general rule, terminals “A” should be connected to terminals “-“, and terminals “B” to “+”. There are exceptions to this rule, such as the GE ALPS and DDS family of relays.

  • Page 60: Communications

    The ENERVISTA MII SETUP software package uses only ModBus protocols, and is designed to communicate with a single relay at a time. GE Multilin offers different communication software packages, such as GE-POWER and enerVista, which can be used to communicate simultaneously with several relays.

  • Page 61: Starting Communication

    4.1 ENERVISTA MII SETUP SOFTWARE 4 COMMUNICATIONS 4.1.2 STARTING COMMUNICATION Before the physical connection to the relay, it is important that the user reviews the safety instructions detailed in section This section explains the importance of connecting both relay ground terminal and computer to a good grounding. Otherwise, communication may not be possible, or the relay and/or the computer could be damaged.

  • Page 62: File

    4 COMMUNICATIONS 4.2 FILE 4.2FILE 4.2.1 NEW From the File – New option, the user can create a new file that will contain all the protection unit settings, as well as the relay configuration (inputs, outputs, events, oscillography, etc.). When the option is selected, the following screen will be shown. The user must select here a specific relay model matching exactly the relay model to which the settings and configuration will later be downloaded.

  • Page 63: Properties

    4.2 FILE 4 COMMUNICATIONS 4.2.3 PROPERTIES From the File – Properties option, the program will show a screen including the relay model information, firmware version, etc., as shown on Figure 4–3: Figure 4–3: 4.2.4 GET INFO FROM RELAY The File – Get info from relay option enables the user to save the relay settings in a file on the hard disk of the computer.

  • Page 64: Print Setup

    4 COMMUNICATIONS 4.2 FILE 4.2.6 PRINT SETUP The File – Print Setup option enables the user to configure the print setup for the settings file as shown in Figure 4–4: Figure 4–4: PRINTER SETUP 4.2.7 PRINT PREVIEW The File – Print Preview option displays a preview of the the settings print-out. It is also provides a quick view of all the relay settings at a glance, without having to navigate through the different menu trees.

  • Page 65: Print

    4.2 FILE 4 COMMUNICATIONS 4.2.8 PRINT The File – Print option prints the relay settings using Windows default (active) printer. 4.2.9 CLOSE The File – Close option exits the program. It does not prompt for confirmation or save the open file. MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 66: Setpoint

    4 COMMUNICATIONS 4.3 SETPOINT 4.3SETPOINT Clicking on the Setpoint menu entry gives access to Settings, Configuration, Logic Configuration and Clock. 4.3.1 SETTINGS The Settings sub-menu is the same for all M family relays, and shows all relay settings divided in two groups: Main Settings and Advanced Settings.
  • Page 67 4.3 SETPOINT 4 COMMUNICATIONS Figure 4–7: FUNCTION MENU Primarily there are four different setting formats: Boolean/Logic Settings (only two choices). For Boolean settings, the two possible options are shown so as the user can select which one is the appropriate, clicking with the mouse on the option desired.

  • Page 68: Main Settings

    4 COMMUNICATIONS 4.3 SETPOINT 4.3.2 MAIN SETTINGS 4.3.2.1 GENERAL SETTINGS General settings describe and activate the electric system settings where the relay is going to operate. Some of these settings will be used with measure values presentation purposes; however, some of them are directly applied during the sampling and analogical-numerical conversion process (nominal frequency setting).

  • Page 69: Relay Configuration

    4.3 SETPOINT 4 COMMUNICATIONS 4.3.4 RELAY CONFIGURATION Setpoint – Relay Configuration shows a dialog box to configure digital inputs, contact outputs and front panel LEDs, as shown in Figure 4–11: Figure 4–11: RELAY CONFIGURATION SETTINGS Each input, output and LED can be assigned an individual function (status bit) or an OR of a group of functions. Functions can also be assigned to virtual inputs and outputs, in order to allow greater flexibility when creating complex logics.
  • Page 70 4 COMMUNICATIONS 4.3 SETPOINT • OR: activates the OR button for the I/O configuration column (see previous point). The window that appears when the OR button is pressed can be seen in figure 4.12 Figure 4–12: OR ASSIGNMENT • NOT: when NOT checkbox is enabled, the logic is inverted. The element (input, output, LED) will actuate when the conditions are NOT fulfilled.

  • Page 71: Logic Configuration

    4.3 SETPOINT 4 COMMUNICATIONS 4.3.5 LOGIC CONFIGURATION MII family relays can execute simple logic schemes that can be programmed from ENERVISTA MII SETUP. This logic schemes can be found at Setpoint – Logic Configuration. When one of the logics is selected, a new window will appear where the user can assign up to 8 inputs to the logic circuit. Each of these inputs can be a single function or status, as well as a logical union of several statuses.

  • Page 72: Clock

    4 COMMUNICATIONS 4.3 SETPOINT 4.3.6 CLOCK The clock option opens a window with two choices: • Sending the PC date and time to the unit, this is, synchronizing the PC and the unit. • Selecting a date and a time and sending it to the relay. Figure 4–14: CLOCK Once the new date and time have been sent, the user can check in the status graph, or even in the relay itself, that the new date/time has been correctly entered.

  • Page 73: Actual Values

    4.4 ACTUAL 4 COMMUNICATIONS 4.4ACTUAL 4.4.1 ACTUAL VALUES Actual - Actual values menu displays the Status Window shown in Figure 4–15:. This window shows internal relay information, measures, function status as well as additional information. There is a vertical scroll bar to navigate up and down the table to reach the desired information: •...

  • Page 74: Event Recorder

    4 COMMUNICATIONS 4.4 ACTUAL 4.4.2 EVENT RECORDER Actual – Event Recorder option makes the last 24 relay events to be retrieved (up to 32) and displayed in the window appearing in Figure 4-16. Each event record is labeled with date, time (with 1msec. resolution), the cause of the event (pickup, trip of a certain function, etc.), and a list of the status of all inputs, outputs and functions during the event.

  • Page 75: Waveform Capture

    4.4 ACTUAL 4 COMMUNICATIONS 4.4.3 WAVEFORM CAPTURE In the Actual - WAVEFORM CAPTURE option, the user can start the process to retrieve the Oscillography record stored in the relay. The program will request the path and filename where the file is to be stored, by means of the following form: Figure 4–17: OSCILLOGRAPHY RECORD This file can be viewed using GE_OSC software (the use of this software is described in manual GEK-105596).

  • Page 76: Operations

    4 COMMUNICATIONS 4.5 OPERATIONS 4.5OPERATIONS From Operations menu the user can perform all possible operation commands. Figure 4–18: OPERATIONS MENU GEK-106426B MIB High Impedance Bus Differntial Relay 4-17...

  • Page 77: Communication

    4.6 COMMUNICATION 4 COMMUNICATIONS 4.6COMMUNICATION The COMMUNICATION menu provides configuration options to communicate with the relay, as well as to perform a ModBus communication troubleshooting, or to update the relay with a new firmware. After making any change, pressing Store button saves the changes without exiting the window. Pressing OK saves and exits and pressing Cancel exits without saving changes.
  • Page 78 4 COMMUNICATIONS 4.6 COMMUNICATION 4.6.1.1 COMPUTER SETTINGS In COMPUTER SETTINGS box the user can configure computer communication settings, besides the connection (Control Type) and Startup Mode. Control Type defines the connection type that is going to be used: • No control type for serial connection (front RS232 or rear RS485), •...
  • Page 79 4.6 COMMUNICATION 4 COMMUNICATIONS Once the connection is established, when the user accesses any Setpoint or Operations, or Actual – Event Recorder menu entries for the first time, the program will ask the relay password. The following window will appear: Figure 4–22: COMMUNICATION CONTROL –...
  • Page 80 4 COMMUNICATIONS 4.6 COMMUNICATION 4.6.1.4 PRINT SCREEN When the Print Screen button is pressed, a new window appears asking if the user wants to capture the entire screen or only the active window (the one with all the communication parameters). Yes means capturing the whole screen and No means capturing only the communications window.

  • Page 81: Troubleshooting

    4.6 COMMUNICATION 4 COMMUNICATIONS 4.6.2 TROUBLESHOOTING The TROUBLESHOOTING option is available only when the PC is communicating with a relay. It is intended to check the ModBus communication frames between the PC and the relay. In the upper part, the user can read any readable value from the relay (setpoints, actual values) by entering the desired hexadecimal address , the type of data to read (Setpoints, Actual Values), the number of registers (the length of each register is of 2 bytes) and the format of the data (integer, long,...

  • Page 82: Upgrade Firmware Version

    4 COMMUNICATIONS 4.6 COMMUNICATION 4.6.3 UPGRADE FIRMWARE VERSION IMPORTANT WARNING: For upgrading the relay firmware to version 4.00 or later, it is mandatory that the EnerVista MII Setup version is 1.10 or higher. Otherwise it may result in damage to the relay The UPGRADE FIRMWARE VERSION option is active only when there is no active communication with the relay.
  • Page 83 If the update is to a model option with higher functionality (see OPTION 1, OPTION 2 and OPTION R in the model list), the program will request a password. This password can be obtained placing an order with GE Multilin. The following three parameters must be clearly indicated in the order: •...
  • Page 84 4 COMMUNICATIONS 4.6 COMMUNICATION Figure 4–30: COMPLETE It will take a few seconds for the relay to restart after the completion of the update process. Therefore, before unplugging the relay, please make sure that the relay main screen shows the analog inputs values. IMPORTANT NOTICE: ®...

  • Page 85: View 4.7.1 Traces

    4.7 VIEW 4 COMMUNICATIONS 4.7VIEW 4.7.1 TRACES TRACES option is only active when the PC is communicating with the relay. If the communication is not established, to activate this option the user must switch communication on in Communication > Computer menu. When TRACES are active, the ModBus communication traces will be displayed in the lower part of the screen, as shown in Figure 4–31: Figure 4–31: MODBUS TRACES...

  • Page 86: Modbus Memory Map

    4 COMMUNICATIONS 4.7 VIEW 4.7.2 MODBUS MEMORY MAP MODBUS MEMORY MAP option is only active when the PC is communicating with the relay. If the communication is not established, to activate this option the user must switch communication on in Communication > Computer menu. With MODBUS MEMORY MAP option the user can extract the complete memory map from the relay and print or save it in CSV format (to be later opened with any database or spreadsheet program as MS Excel).

  • Page 87: Languages

    4.7 VIEW 4 COMMUNICATIONS 4.7.3 LANGUAGES LANGUAGES option is only active when there is no active communication with the relay. If the PC is communicating with the relay, to activate this option the user must switch communication off in Communication – Computer menu. Figure 4–33: LANGUAGES 4-28 MIB High Impedance Bus Differntial Relay...

  • Page 88: Settings Structure

    5 SETTINGS 5.1 SETTINGS STRUCTURE 5 SETTINGS 5.1SETTINGS STRUCTURE All the settings of the MIB relay, together with the procedures to change their value, are described in this chapter. First of all, a complete list of settings is shown; including ranges, units, step and factory default value. Then, the settings requiring more detailed comments are individually explained.

  • Page 89: Main Settings

    5.2 MAIN SETTINGS 5 SETTINGS 5.2MAIN SETTINGS 5.2.1 PRODUCT SETUP MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 90: Advanced Settings 5.3.1 Differential Element 87 1

    5 SETTINGS 5.3 ADVANCED SETTINGS 5.3ADVANCED SETTINGS 5.3.1 DIFFERENTIAL ELEMENT 87 1 5.3.2 DIFFERENTIAL ELEMENT 87 2 GEK-106426B MIB High Impedance Bus Differntial Relay...

  • Page 91: General Advanced

    5.3 ADVANCED SETTINGS 5 SETTINGS 5.3.3 GENERAL ADVANCED MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 92: Differential Element 87 1 Group 2

    5 SETTINGS 5.3 ADVANCED SETTINGS 5.3.4 DIFFERENTIAL ELEMENT 87 1 GROUP 2 5.3.5 DIFFERENTIAL ELEMENT 87 2 GROUP 2 GEK-106426B MIB High Impedance Bus Differntial Relay...

  • Page 93: Events And Oscillography Masks

    5.3 ADVANCED SETTINGS 5 SETTINGS 5.3.6 EVENTS AND OSCILLOGRAPHY MASKS Event masks have two possible settings, YES or NO. If an action (e.g. the trip of a protection function) is set as YES, when the trip takes place an event will be generated. If it is set as NO, no event will be generated. EVENT ENERVISTA MII SETUP DEFAULT...

  • Page 94: Oscillography Masks

    5 SETTINGS 5.3 ADVANCED SETTINGS 5.3.7 OSCILLOGRAPHY MASKS OSCILLOGRAPHY MASK ENERVISTA MII SETUP DEFAULT RANGE STEP Oscillography Trigger by communications Oscillo by communic. Oscillography Trigger by digital input Oscillo by digital input Oscillography Trigger by tripping Oscillo by tripping Oscillography Trigger by pickup Oscillo by pickup GEK-106426B MIB High Impedance Bus Differntial Relay...

  • Page 95: Time Synchronization

    5.4 TIME SYNCHRONIZATION 5 SETTINGS 5.4TIME SYNCHRONIZATION MIB includes an internal clock to time tag events. This clock can be either synchronized with the computer clock or set manually using the ENERVISTA MII SETUP software program (see Setpoints – Clock). It can also be set to a given Date and Time using the faceplate keypad (DATE &...

  • Page 96: Input Configuration

    6 I/0 CONFIGURATION 6.1 INPUT CONFIGURATION 6 I/0 CONFIGURATION 6.1INPUT CONFIGURATION 6.1.1 DESCRIPTION OF INPUTS MIB incorporates 2 digital inputs, which can be configured using the ENERVISTA MII SETUP software (Setpoint > Relay Configuration). The default input configuration is as follows: 86 A CC 2 All functions disable...
  • Page 97 6.1 INPUT CONFIGURATION 6 I/0 CONFIGURATION assigned to the input, and all of them have been inverted. Finally, to validate the selected configuration, the user must click on the OK button both in the "OR ASSIGNMENT" and the "I/O CONFIGURATION" screens.. Figure 6–2: INPUT CONFIGURATION WITH MORE THAN ONE FUNCTION (OR) MIB High Impedance Bus Differntial Relay GEK-106426B...
  • Page 98 6 I/0 CONFIGURATION 6.1 INPUT CONFIGURATION SIMPLE ACTION INPUT CONFIGURATION (ONE ELEMENT ASSIGNMENT) To assign breaker status input 52A to a digital input, select Breaker 52a from the I/O configuration selection list. The OR checkbox must not be selected. The simplest way of programming an input is to assign it to a single element. For this purpose, the user must simply open the I/O configuration selection list of the desired input.

  • Page 99: Input Elements

    6.1 INPUT CONFIGURATION 6 I/0 CONFIGURATION 6.1.2 INPUT ELEMENTS The following table shows the list of elements that can be assigned to each input. The table is divided into groups GROUP ENERVISTA MII SETUP FUNCIONALITY No Definition Input not assigned MASK ED 1 87 1 Disable by Input Disable the operation (trip) of the 87 1 function...

  • Page 100: Outputs And Leds Configuration

    6 I/0 CONFIGURATION 6.2 OUTPUTS AND LEDS CONFIGURATION 6.2OUTPUTS AND LEDS CONFIGURATION 6.2.1 DESCRIPTION OF OUTPUTS AND LEDS MIB incorporates 6 outputs and 6 LED indicators. 4 of the outputs and LED indicators are user configurable, and can only be programmed using ENERVISTA MII SETUP software (SETPOINT – RELAY CONFIGURATION). The first two LEDs are fixed for READY (System ready) and TRIP.

  • Page 101: Output And Led Elements

    6.2 OUTPUTS AND LEDS CONFIGURATION 6 I/0 CONFIGURATION Elements from different groups cannot be included in an OR type logic. 87 1 Trip OUTPUT/LED 87 2 Trip 6.2.2 OUTPUT AND LED ELEMENTS The list of elements that can be assigned to the different outputs and LEDs is divided into the following groups: GROUP FUNCTION DESCRIPTION...
  • Page 102 6 I/0 CONFIGURATION 6.2 OUTPUTS AND LEDS CONFIGURATION MISCELLANEOUS 2 Close Breaker Active when the close breaker operation is performed ACTIVE GROUP Settings group 2 is active MIXED 2 Local Active when the relay display is inside MAIN SETTINGS, ADVANCED SETTINGS or OPERATIONS menu Virtual trip signals are activated as soon as the protection unit trip conditions are present, independently from the trip enable setting.
  • Page 103 6.2 OUTPUTS AND LEDS CONFIGURATION 6 I/0 CONFIGURATION MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 104: Keypad And Display

    7 KEYPAD AND DISPLAY 7.1 DESCRIPTION 7 KEYPAD AND DISPLAY 7.1DESCRIPTION MIB has five types of display messages: actual values, main settings, advanced settings, operations and date & time. Actual values are values that are measured by the relay, such as currents; digital values of the relay, and can be digital inputs, outputs status and others;...

  • Page 105: Faceplate Keypad

    7.2 FACEPLATE KEYPAD 7 KEYPAD AND DISPLAY 7.2FACEPLATE KEYPAD faceplate keypad is made up of five keys, as shown in Figure 7–1: Figure 7–1: KEYPAD The main screen is the one that shows the three phase and neutral currents. If the relay is not showing the main screen, you can return to it from any other screen by pressing the Escape key as many times as necessary until exiting the menu structure.

  • Page 106: Alphanumeric Display And Leds

    7 KEYPAD AND DISPLAY 7.3 ALPHANUMERIC DISPLAY AND LEDS 7.3ALPHANUMERIC DISPLAY AND LEDS 7.3.1 DISPLAY The faceplate display of the MIB relay is a 16 column x 2-row characters alphanumeric LCD display. Messages in the display are shown in the English language. Figure 7–2: DISPLAY The display contrast can be modified simultaneously pressing Escape + arrow: •...

  • Page 107: Leds

    7.3 ALPHANUMERIC DISPLAY AND LEDS 7 KEYPAD AND DISPLAY 7.3.2 LEDS The faceplate of the MIB relay has six LEDs that show the relay status, as well as pickup and trip status. LEDs are grouped in two columns and three rows, as shown in Figure 7–3: Figure 7–3: LEDS The two LEDs in the first row (Ready and Trip) are not configurable.
  • Page 108 7 KEYPAD AND DISPLAY 7.3 ALPHANUMERIC DISPLAY AND LEDS COLOR LEDs MENU LED1 GREEN Press up or down arrow ( :RED – :GREEN) to select, Enter to confirm Enter COLOR LEDs MENU LED2 RED Press up or down arrow ( :RED – :GREEN) to select, Enter to confirm Enter COLOR LEDs MENU...

  • Page 109: Operations

    7.4 OPERATIONS 7 KEYPAD AND DISPLAY 7.4OPERATIONS 7.4.1 ONE KEY OPERATION AND LAST TRIP DATA From the main screen, pressing Enter key the display shows a one-key operation menu that presents measures, thermal image value and up to five latest trip element data with the element that has tripped, the phase and the secondary current value (not affected by CT ratio), with the day, month and time of the trip.
  • Page 110 Once it has been entered, the relay asks for the new password. Here is an example of how to change from HMI password value 1 to 2: If you don’t know the programmed password please contact GE Multilin Technical Service and have the encoded password value shown in Main Settings > Product Setup > HMI handy.
  • Page 111 7.4 OPERATIONS 7 KEYPAD AND DISPLAY MENU TREE ENTER ACTUAL VALUES Order Code MIB30HICE00000 Firmware Rev. 3.00 Date & Time 20-02-03 Hour 11:46:24 SERIAL NUMBER 20.345.589 Relay Name Phase A Diff. Current 0.00 Phase B Diff. Current 0.00 Phase C Diff. Current 0.00 Frequency 0.00...
  • Page 112 7 KEYPAD AND DISPLAY 7.4 OPERATIONS MENU ENTER MAIN SETTINGS ENTER MAIN SETTINGS 87 1 Function 87 1 Enable Yes-No 87 1 Trip Enable Yes-No 87 1 Pickup Level 0.005-0.4 87 1 Time Delay 0-600 ENTER MAIN SETTINGS 87 2 Function 87 2 Enable Yes-No 87 2 Trip Enable...
  • Page 113 7.4 OPERATIONS 7 KEYPAD AND DISPLAY MENU ENTER ADVANCED SETTINGS ENTER ADVANCED SETTINGS GENERAL ADVANCED ENTER GENERAL ADVANCED Settings Group Trip Min Time 50-300 ENTER ADVANCED SETTINGS 87 1 Function Group 2 87 1 Enable Yes-No 87 1 Trip Enable Yes-No 87 1 Pickup Level 0.005-0.4...
  • Page 114 7 KEYPAD AND DISPLAY 7.4 OPERATIONS MENU ENTER OPERATIONS ENTER OPERATIONS LEDS RESET ENTER PRESS LEDS RESET IN LEDS RESET LEDS RESET TO CONFIRM PASSWORD PROCESS OPERATION OK ENTER OPERATIONS ACTIVATE TABLE 1 ACTIVATE TABLE 1 ACTIVATE TABLE 1 ACTIVATE TABLE 1 ENTER TO CONFIRM IN PROCESS OPERATION OK...
  • Page 115 7.4 OPERATIONS 7 KEYPAD AND DISPLAY 7-12 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 116: Relay Commissioning

    8 RELAY COMMISSIONING 8.1 VISUAL INSPECTION 8 RELAY COMMISSIONING 8.1VISUAL INSPECTION Unpack the relay and verify that no parts are broken and that the relay has not suffered any damage during transit. Verify that the model number indicated on the faceplate corresponds to the model ordered. GEK-106426B MIB High Impedance Bus Differntial Relay...

  • Page 117: Comments On The Test Equipment

    8.2 COMMENTS ON THE TEST EQUIPMENT 8 RELAY COMMISSIONING 8.2COMMENTS ON THE TEST EQUIPMENT All devices that work with alternating current are influenced by frequency. Since a non-sinusoidal waveform results from a fundamental frequency wave plus a series of harmonics of this fundamental wave, it can be concluded that devices working with alternating current (relays) are influenced by the applied waveform.

  • Page 118: Relay Setting

    8 RELAY COMMISSIONING 8.3 RELAY SETTING 8.3RELAY SETTING When the relay is shipped from our factory, it has default settings, which are the starting point for the following tests. An exhaustive list of all the settings necessary for each test will not be given here. Just the specific settings required for each test are indicated, and it can be supposed that the other settings do not affect the test being performed.

  • Page 119: Wiring And Necessary Equipment

    8.4 WIRING AND NECESSARY EQUIPMENT 8 RELAY COMMISSIONING 8.4WIRING AND NECESSARY EQUIPMENT Necessary equipment: • 1 AC current source. • 1 DC voltage power supply. • 1 timing device. • 1 Multi-meter. Optionally, it is advisable to have a PC available, with the ENERVISTA MII SETUP software installed. Relay wiring diagram.

  • Page 120: Target Leds

    8 RELAY COMMISSIONING 8.5 TARGET LEDS 8.5TARGET LEDS Check that pressing the “ESC/RESET” button for more than 3 seconds, all the front target LEDs light up and reset. GEK-106426B MIB High Impedance Bus Differntial Relay...

  • Page 121: Power Supply Test

    8.6 POWER SUPPLY TEST 8 RELAY COMMISSIONING 8.6POWER SUPPLY TEST Connect the relay to a power supply at rated minimum voltage indicated in the table below. A (C1-C2 terminals) a current equal to 0.1 amp.The will trip and close trip contact and OUT1 and OUT4 outputs. Under these tripping conditions check that theREADY (B5-B6 terminals) output is open, and trip contact (A5-A6 terminals) and OUT! (A7-B7 terminals) and OUT4 (A7-B10 terminals) auxiliary contacts are closed.

  • Page 122: Communications

    PC and the relay (refer to figure 3-10). If the front port is used, a straight through cable is needed. If the rear RS485 port is used, an RS485/RS232 converter is needed. GE Multilin offers DAC300, F485 or RS232/485 converters.

  • Page 123: Relay Setting

    8.8 RELAY SETTING 8 RELAY COMMISSIONING 8.8RELAY SETTING When the relay is shipped from the factory, it comes with a default set of settings, which act as the starting point for the following tests. Since the MIB relay has a large number of settings, a list of all the settings necessary for all tests will not be given here, but rather only the specific settings required for each test indicated.

  • Page 124: Contact Inputs

    8 RELAY COMMISSIONING 8.9 CONTACT INPUTS 8.9CONTACT INPUTS Sequentially apply the rated voltage to input CC1 and CC2 (A8-A10 and A9-A10). Check that when voltage is applied to one contact input, only this input gets active, and the other one remains inactive. Use the INFORMATION menu on the faceplate or a PC and the ACTUAL VALUES menu in the ENERVISTA MII SETUP program (Actual>...

  • Page 125: Contact Outputs

    8.10 CONTACT OUTPUTS 8 RELAY COMMISSIONING 8.10CONTACT OUTPUTS Check that all the outputs are open. Set the relay as follows: 87 2 NAME VALUE UNITS RANGE 87 2 Enable Yes/No 87 2 Trip Enable Yes/No 87 2 Pickup level 0.01 Amps 0.01 –...

  • Page 126: Relay Metering

    8 RELAY COMMISSIONING 8.11 RELAY METERING 8.11RELAY METERING 8.11.1 CURRENT METERING Set the relay to the same frequency than the AC source used and apply the following currents: PHASE Ia (Amps) 0.2 amps (phase) Ib (Amps) 0.1 amps (phase) 0.3 amps Ic (Amps) Check that the relay measures Ia, Ib and Ic with an accuracy better than 5%.

  • Page 127: Differential Unit Level 1 (F87 1)

    8.12 DIFFERENTIAL UNIT LEVEL 1 (F87 1) 8 RELAY COMMISSIONING 8.12DIFFERENTIAL UNIT LEVEL 1 (F87 1) Enable only 87 1 function. Set its time delay and pickup to 0.1 A With 0.9 times the pickup current the relay should not trip. With 1.1 times the pickup current the relay should trip in between 10 to 50 ms.

  • Page 128: Differential Unit Level 2 (F87 2)

    8 RELAY COMMISSIONING 8.13 DIFFERENTIAL UNIT LEVEL 2 (F87 2) 8.13DIFFERENTIAL UNIT LEVEL 2 (F87 2) Enable only 87 2 function. Set its time delay and pickup to 0.1 A With 0.9 times the pickup current the relay should not trip. With 1.1 times the pickup current the relay should trip in between 10 to 50 ms.

  • Page 129: Time Synchronization

    8.14 TIME SYNCHRONIZATION 8 RELAY COMMISSIONING 8.14TIME SYNCHRONIZATION Synchronize the relay date and time with the PC, using the ENERVISTA MII SETUP communications program (SETPOINT – CLOCK). Check using the keypad and display that the relay is actually in synchronism with the computer. 8-14 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 130: Acceptance Test For High Impedance Module

    8 RELAY COMMISSIONING 8.15 ACCEPTANCE TEST FOR HIGH IMPEDANCE MODULE 8.15ACCEPTANCE TEST FOR HIGH IMPEDANCE MODULE 8.15.1 WIRING AND NECESSARY EQUIPMENT Necessary equipment: 1 AC voltage source. 1 DC voltage power supply. 1 timer. 1 Multi-meter. Typical wiring diagram: (3000) B5177F1 (2000) B5177F2 (1000) B5177F3 8.15.2 CONTINUITY...

  • Page 131: Latching Relay

    8.15 ACCEPTANCE TEST FOR HIGH IMPEDANCE MODULE 8 RELAY COMMISSIONING Resistors Measure Check that the resistor value between terminals is 2K: NOTE: Accuracy of 12%. C12 – D8 C11 – D7 C10 – D6 Thyrites current measure: APPLIED VOLTAGE MOV TERMINALS 290 VCA C12-D4 2- 10 mA...

  • Page 132: User Settings

    8 RELAY COMMISSIONING 8.16 USER SETTINGS 8.16USER SETTINGS The following pages intend to be useful to register the user settings. They can be used as a guide or template or to record , in case your company does not provide a proprietary form sheet. the relay settings 8.16.1 MAIN SETTINGS 8.16.1.1 GENERAL SETTINGS...
  • Page 133 8.16 USER SETTINGS 8 RELAY COMMISSIONING 8.16.2.2 DIFFERENTIAL CURRENT UNITS GROUP 2 ENERVISTA MIIPC USER VALUE RANGE STEP GROUP 2 FIRST LEVEL DIFFERENTIAL 87 1 FUNCTION GROUP2 F87 1 G2 FUNCTION First Level 87 Enable 87 1 G2 Enable ENABLE 87 1 G2 Permission to Trip First 87 1 G2 Trip Enable TRIP 87 1 G2...

  • Page 134: Advanced Settings

    8 RELAY COMMISSIONING 8.17 ADVANCED SETTINGS 8.17ADVANCED SETTINGS ENERVISTA MIIPC USER VALUE RANGE Phase A 87 1 Pickup Phase A 87 1 Pickup Phase B 87 1 Pickup Phase B 87 1 Pickup Phase C 87 1 Pickup Phase C 87 1 Pickup 87 1 Pickup 87 1 Pickup Phase A 87 2 Pickup...
  • Page 135 8.17 ADVANCED SETTINGS 8 RELAY COMMISSIONING 8-20 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 136: Installation And

    9 INSTALLATION AND MAINTENANCE 9.1 INSTALLATION 9 INSTALLATION AND MAINTENANCE 9.1 INSTALLATION The relay should be installed in a clean, dry and dust-free place, with no vibrations. It should also be well lit to facilitate inspection and testing. Operational conditions as defined in section 3 must not be exceeded in any case. The relay should be mounted on a vertical surface.

  • Page 137: Ground Connection And Disturbances Suppression

    9.2 GROUND CONNECTION AND DISTURBANCES SUPPRESSION 9 INSTALLATION AND MAINTENANCE 9.2GROUND CONNECTION AND DISTURBANCES SUPPRESSION Threaded plug labelled as GND (refer to 1.3) should be correctly grounded, so that the disturbance suppression circuits in the system work correctly. This connection should be as short as possible (preferably 25 cm or less) to guarantee maximum protection.

  • Page 138: Maintenance

    9 INSTALLATION AND MAINTENANCE 9.3 MAINTENANCE 9.3MAINTENANCE Given the important role that protection relays play in the operation of any installation, a periodic program of tests is highly recommended. The unit incorporates built-in diagnostic functions that permit immediate identification, with only the aid of keypad and display, of some of the most likely circuit failures.

  • Page 139: Cleaning Instructions

    9.4 CLEANING INSTRUCTIONS 9 INSTALLATION AND MAINTENANCE 9.4CLEANING INSTRUCTIONS In case of detecting accumulated pollution, the unit can be cleaned with a clean cloth, either dry or slightly dampened with a cleaner containing alcohol. Abrasive cleaners must be avoided, as these can damage the metallic surface or the electrical connection elements. MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 140: Modbus

    APPENDIX A APPENDIX A MODBUS ® This appendix describes the fundamentals about the communication with MIB units using ModBus protocol. References to memory addresses can vary depending on the model and firmware revision. Therefore, please make sure that the memory map is the appropriate one for the model and firmware version installed. To make this easier for the user, the communications software supplied with MII family units, EnerVista MIIPC, includes a tool that allows to extract the memory map of any MII family module connected to the computer.

  • Page 141: Reading Values

    A.1 READING VALUES APPENDIX A A.1READING VALUES ® The ModBus function used is number 3 (READ HOLDING REGISTERS). The information retrieved from the relay is in Intel format (little endian), that is to say, ordered from lower to higher weight (first the least significant byte, then the next least significant byte and so on until the most significant one, that will go last).
  • Page 142 APPENDIX A A.2 COMMAND EXECUTION A.2COMMAND EXECUTION Commands are executed in two steps: selection and confirmation. First, send the command or operation selection command. When the relay response arrives, send the confirmation. It is necessary to send the relay password. The structure for both commands is the same;...

  • Page 143: Command Execution

    A.2 COMMAND EXECUTION APPENDIX A A.2.1 COMMAND STRUCTURE SELECTION: Request: FIELD LENGTH Relay address 1 byte Function 1 byte (10H) Beginning address 1 word (000H) (High byte – low byte) Number of registers 1 word (0001H) (High byte – low byte) Number of bytes 1 byte (02H) Value of the registers...
  • Page 144 APPENDIX A A.2 COMMAND EXECUTION Relay address 1 byte Function 1 byte (10H) Beginning address 1 word (0000H) (High byte – low byte) Number of registers 1 word (0003H) (High byte – low byte) 1 word GEK-106426B MIB High Impedance Bus Differntial Relay...
  • Page 145 A.2 COMMAND EXECUTION APPENDIX A A.2.2 EXAMPLE A.2.2.1 SELECTION Request: To activate Group 2, the selection command will be 0FH; therefore the operation to be performed is a writing of word 0F 00H at the address 00 00H. Request: ADDRESS FUNCTION BEGINNING #REGS...

  • Page 146: Example

    APPENDIX A A.3 SYNCHRONIZATION A.3SYNCHRONIZATION To synchronize the date and time of a relay we use a command with the following characteristics The command is executed in broadcast mode (relay address = 00H) Date and time are included in the message. The date and time format length is 6 bytes No answer is expected from the relay FIELD LENGTH...

  • Page 147: Writing Settings

    A.4 WRITING SETTINGS APPENDIX A A.4WRITING SETTINGS There are three steps to write a setting: Execute a selection command using the corresponding code (See command execution) Change the setting Execute a confirmation command using the corresponding code (See command execution) ®...

  • Page 148: Frame Structure

    APPENDIX A A.4 WRITING SETTINGS A.4.1 FRAME STRUCTURE A.4.1.1 SETTING CHANGE SELECTION Request: FIELD LENGTH Relay address 1 byte Function 1 byte (10H) Beginning address 1 word (High Byte – low byte) Number of registers 1 word (High Byte – low byte) Number of bytes 1 byte Value of the registers...

  • Page 149: Setting Change Confirmation

    A.4 WRITING SETTINGS APPENDIX A A.4.2 SETTING CHANGE CONFIRMATION Request: FIELD LENGTH Relay address 1 byte Function 1 byte (10H) Beginning address 1 word (0000H) (High Byte – low byte) Number of registers 1 word (0003H) (High Byte – low byte) Number of bytes 1 byte (06H) Value of the registers...

  • Page 150: Example Of Setting Change

    APPENDIX A A.4 WRITING SETTINGS A.4.3 EXAMPLE OF SETTING CHANGE This example modifies the IDENTIFICATION setting of an MIB module that stores this information at position 0134H of its memory map. The module identification in an ASCII text of 16 characters. SELECTION: Request: ADDRESS...
  • Page 151 A.4 WRITING SETTINGS APPENDIX A CONFIRMATION Request: ADDRESS FUNCTION BEGINNING #REGS BYTES #DATA0 DATA1 DATA2 0000H 0003H 0200H 0100H 0000H E69EH Reply: ADDRESS FUNCTION BEGINNING #REGS 0000H 0003H 8008H A-12 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 152: Events

    APPENDIX A A.5 EVENTS A.5EVENTS Events reading operation consists of four steps: Read the number of events recorded since the last event deletion. This number is stored in the memory position labeled “All events”. See following table to find out this address for each MIB module. Send an Open Events command (in a similar way as for operation selection).

  • Page 153: Frame Structure

    A.5 EVENTS APPENDIX A A.5.1 FRAME STRUCTURE For this example a MIB module version 1.00 will be used so the memory address and event sizes will correspond to this module. A.5.1.1 ‘ALL EVENTS’ READING Request: FIELD LENGTH Relay address 1 Byte Function 1 Byte (03H) Initiation address...
  • Page 154 APPENDIX A A.5 EVENTS A.5.1.3 EVENTS READING Request: FIELD LENGTH Relay address 1 Byte Function 1 Byte (03H) Initiation address 1 Word (High byte – Low byte) No of registers 1 Word (High byte – Low byte) 1 Word Reply: FIELD LENGTH Relay address...
  • Page 155 A.5 EVENTS APPENDIX A The following information is supplied for each event: NAME BIT NUMBER RECORD NUMBER OF FORMAT INDEX BYTES Event code Date & Time Idiff phase A Idiff phase B Idiff phase C Trip operation by communications LEDs and latched outputs reset Reset 86 Protection status (0=out of service, 1=In service) Output 1...
  • Page 156 APPENDIX A A.5 EVENTS The following tables show the codes for the different events: EVENT CODES FOR MIB RELAY 8192 Trip operation by command 8194 Reset auxiliary latched outputs 8254 Trip disabled by digital input 8270 General Trip 8274 Protection status: Ready 8275 Protection status: Disable 8276...

  • Page 157: Oscillography

    A.6 OSCILLOGRAPHY APPENDIX A A.6OSCILLOGRAPHY Oscillography reading operation consists of four steps: Send an Open Oscillography command (in a similar way as for operation selection). The code to open oscillography is 11H. The module will prepare the information to be sent and when it is ready it will send the ModBus response. If there is no oscillography stored, the module will respond with a Not Acknowledge code (error #7).
  • Page 158 APPENDIX A A.6 OSCILLOGRAPHY For the first block, that contains the analog and digital channels samples, the structure is as follows: DESCRIPTION BIT # RECORD FORMAT INDEX INDEX BYTES Id A Id B Id C 87 1 A pickup 87 1 B pickup 87 1 C pickup 87 1 pickup 87 2 A pickup...
  • Page 159 A.6 OSCILLOGRAPHY APPENDIX A The second block of information contains the oscillo report; this includes the RMS values of analog signals when the oscillography was triggered. If the trigger is produced by a relay trip, these values will be the fault values. This block will be written as follows: VALUES AT THE MOMENT OF THE OSCILLOGRAPHY TRIGGER MIB RELAY...

  • Page 160: Errors

    APPENDIX A A.7 ERRORS A.7ERRORS When any of the previous commands produce an error in the slave the following frame is received: ADDRESS FUNCTION + 80 H COD. ERROR 0DC2H We can receive the following values in the error code field: ILLEGAL FUNCTION ILLEGAL DATA ADDRESS ILLEGAL DATA VALUE...

  • Page 161: Used Formats

    A.8 USED FORMATS APPENDIX A A.8USED FORMATS’ FORMAT DESCRIPTION VALUE VALUETEXT DATE/TIME Milliseconds from 1/1/1996 at 00:00:00.000. FLOAT 32 (INTEL) IEEE (32 bits) Please refer to the example after this table. F3/ARRAY TEXT F4/BIT BIT Frequency 50 Hz 60 Hz BIT Enable Not permitted Permitted...
  • Page 162 APPENDIX A A.8 USED FORMATS GEK-106426B MIB High Impedance Bus Differntial Relay A-23...
  • Page 163 A.8 USED FORMATS APPENDIX A A-24 MIB High Impedance Bus Differntial Relay GEK-106426B...

  • Page 164: Modem Connection

    APPENDIX B APPENDIX B MODEM CONNECTION If we wish to connect the relay to a remote PC, it will be necessary to previously link two modems to the telephone line. The modem on the relay side will receive the call, and the modem on the PC side will make the call. This way, both modems will be configured in different ways: the modem on the PC side will receive the commands from the PC for starting or ending communication, and therefore it will make the call.

  • Page 165: Hayes Modem

    B.1 HAYES MODEM APPENDIX B B.1HAYES MODEM In order to establish communication between two HAYES modems, both of them must accept HAYES commands. This is compulsory, as the PC will send specific commands for this type of modem. We must place the AT command before every command.

  • Page 166: V.25Bis Modem

    APPENDIX B B.2 V.25BIS MODEM B.2V.25BIS MODEM ENERVISTA MII SETUP software allows the modem making the call to accept V.25bis commands. In this case, the modem on the relay side could be either HAYES or V.25bis, as it will not need to process any relay command. The configuration of this kind of modem is performed by means of microswitches that set its operation.

  • Page 167: Samples Of Settings For Particular Modems

    B.3 SAMPLES OF SETTINGS FOR PARTICULAR MODEMS APPENDIX B B.3SAMPLES OF SETTINGS FOR PARTICULAR MODEMS In the following sections, we will detail some communications parameters, already tested for the following modems. B.3.1 SPORTSTER FLASH X2 MODEM (HAYES) Initiation commands for the modem on the PC side: We will add the following commands to the default configuration: &AnEnable/disable the ARQ result codes Disable the ARQ result codes...

  • Page 168: Zoom Pkt14.4

    APPENDIX B B.3 SAMPLES OF SETTINGS FOR PARTICULAR MODEMS B.3.2 ZOOM PKT14.4 Initiation commands for the PC modem: Commands: B0 E0 L1 M1 N1 Q0 T V0 W0 X1 Y0 &C1&D2&G0&J0&K3&Q5&R1&S0&T5&X0&Y0 S Registers: S00:001 S01:000 S02:043 S03:013 S04:010 S05:008 S06:002 S07:050 S08:002 S09:006...

  • Page 169: Modem Satelsa Mgd-2400-Dhe (V.25Bis)

    B.3 SAMPLES OF SETTINGS FOR PARTICULAR MODEMS APPENDIX B B.3.3 MODEM SATELSA MGD-2400-DHE (V.25BIS) In this case, the modem initial configuration is set by changing the microswitches located in three sets on the bottom of the units. Location of modem microswitches on the PC side: Set 1 Nº...
  • Page 170 APPENDIX B B.3 SAMPLES OF SETTINGS FOR PARTICULAR MODEMS Set 3 DESCRIPTIONº VALUE 1&2 Transmission timer selection. ON-ON ON-ON114 OFF-ON113 ON-OFF114/5 OFF-OFF113 RTC Dialing system ON: Multi-frequency dialing. OFF: Loop opening pulse dialing Status of circuit 109, during protocol V.25bis in RTC, option 108.2. ON: Status of circuit 108 remains.
  • Page 171 B.3 SAMPLES OF SETTINGS FOR PARTICULAR MODEMS APPENDIX B Set 2 Nº DESCRIPTIÓN VALUE Synchronous format of protocol V25bis in option 108.2. ON: Character oriented format (BSC). OFF: Bit oriented format (HDLC). 2&3 Asynchronous character format for data transfer ON-OFF ON-ON8 OFF-ON9 ON-OFF10...

  • Page 172: General Principle Of Operation

    APPENDIX C C.1 GENERAL PRINCIPLE OF OPERATION APPENDIX C HARMONIC FILTERINGC.1GENERAL PRINCIPLE OF OPERATION The present document intends to give an overview on how the MIB relay deals with analog signals, in order to help determine whether the relay is appropriate for certain applications. MIB relays, as the rest of our digital relays, are based on the following functional diagram: Figure C–1: Each of these blocks has its own functionality inside the general operation of the unit, as follows:...

  • Page 173: Digital Filter

    C.2 DIGITAL FILTER APPENDIX C C.2DIGITAL FILTER The first operation performed by the CPU with the voltage and/or current signal samples is the DFT. The Discrete Fourier Transformation consists in decomposing a signal into a series of sinusoidal signals with frequencies that are multiples of the fundamental frequency.
  • Page 174 APPENDIX C C.2 DIGITAL FILTER Figure C–4: can experience small variations for frequencies that are not the fundamental and its harmonics, as the measure varies for these frequencies. As an example, we can see in the next figure how a relay measure varies when it is set to 50 Hz, and it is being applied 60 Hz.

  • Page 175: Measure At Frequencies Below The Rated Frequency

    C.3 MEASURE AT FREQUENCIES BELOW THE RATED FREQUENCY (FREQUENCY TRACKING) APPENDIX C C.3MEASURE AT FREQUENCIES BELOW THE RATED FREQUENCY (FREQUENCY TRACKING) As already mentioned, the digital filter is related to the fundamental frequency, so higher multiple frequency values are annulled During the start-up of generators, the voltage frequency in terminals and currents that can appear in the event of a fault, will depend on the machine speed.

This manual is also suitable for:

90.017.102

Table of Contents
