GE Multilin 469 Instruction Manual

GE Multilin 469 Instruction Manual

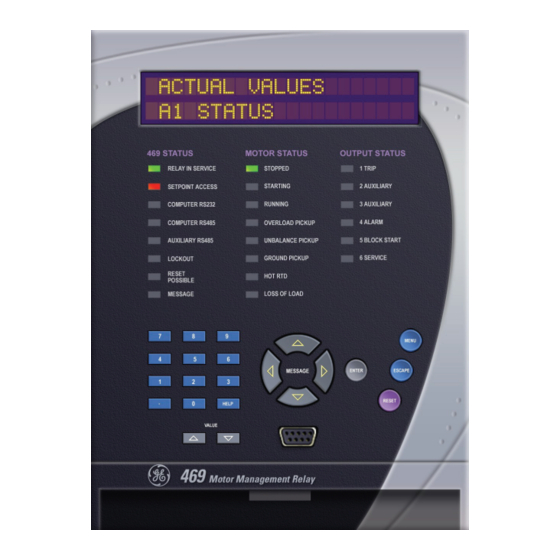

Motor management relay
Hide thumbs Also See for Multilin 469:

Advertisement

Quick Links

Download this manual
Digital Energy
Multilin
Software Revision: 5.0x
Manual P/N: 1601-0122-A8
Manual Order Code: GEK-106474G
Copyright © 2009 GE Multilin
GE Multilin
215 Anderson Avenue, Markham, Ontario
Canada L6E 1B3
Tel: (905) 294-6222 Fax: (905) 201-2098
Internet:
http://www.GEmultilin.com
*1601-0122-A8*
All manuals and user guides at all-guides.com
469 Motor Management
Relay
Instruction Manual
GE Multilin's Quality Management
System is registered to
ISO9001:2000
QMI # 005094
UL # A3775
