C.1 TRIP CIRCUIT SUPERVISION FOR MII-FAMILY RELAYS

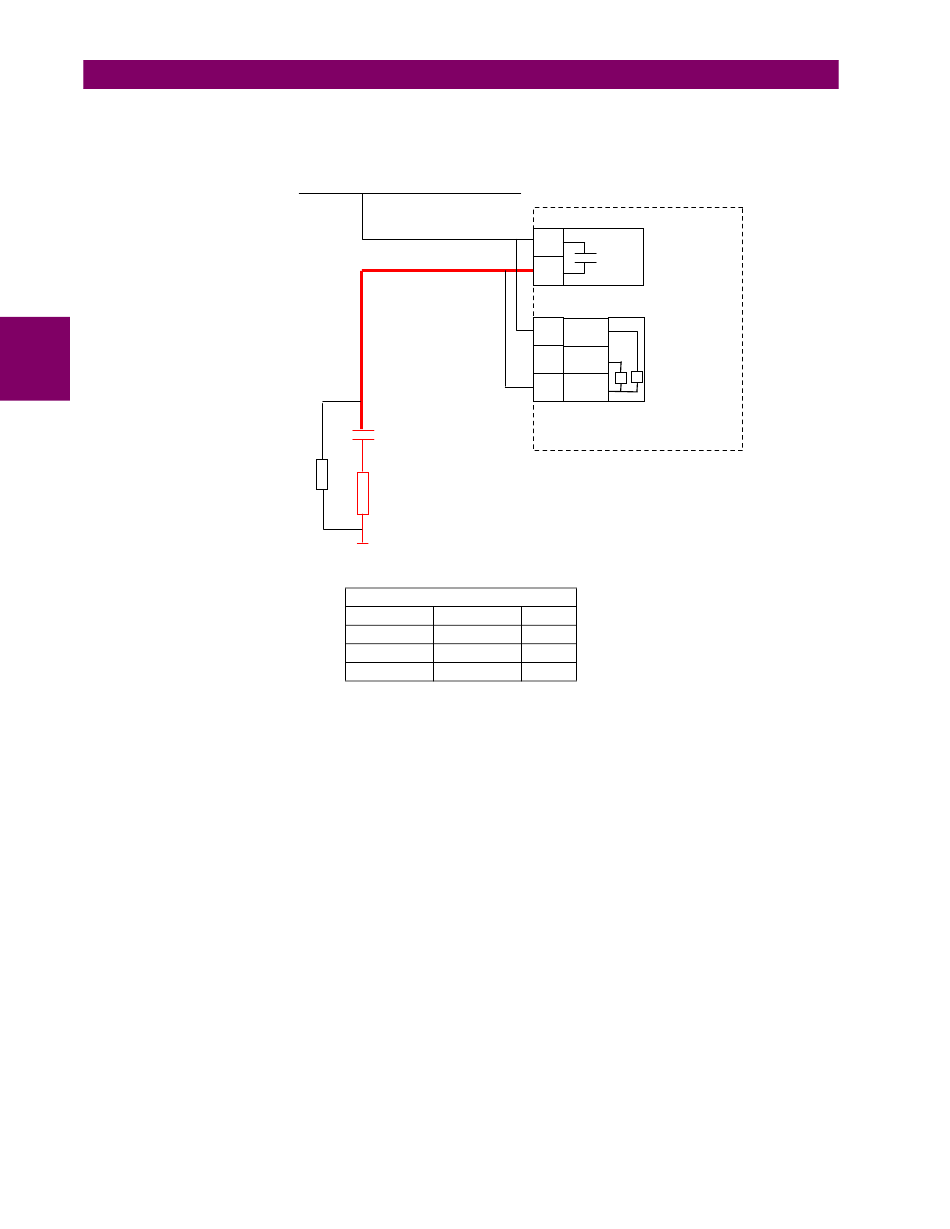

For monitoring the trip circuit while the breaker is open and when it is closed, a resistor must be added in parallel to the
52a contact, as shown below:
C
C-2
+Vdc
TRIP
Breaker
Auxiliary
Contact (52a)
R
TRIP COIL
VALUE OF RESISTOR R
Supply
48 Vdc
125 Vdc
250 Vdc
MIWII Directional Power Protection System
A5
TRIP
A6
A8
INP#1
A9 INP#2
A10
COM
Ohms Watts
10 K 2
25 K 5
50 K 5
