Default Local Dialing Setup - MCK EXTender 7000 Installation Manual

5. Auto Offhook: Match to PBX Settings

Default Local Dialing Setup

MI Path
Config-> Port->Default->Local Dialing
Note: These "Default" Local Dialing settings will set all ports identically.
1. Trunk Access Code: Code used to dial out from the EXT 7000.
2. Local Access Code: Code to access local trunks.
3. Restriction Prefix: Used to set restricted access numbers.
4. Collector Timeout: 5 (seconds). Used in conjunction with the Trunk Access Code.
5. Local Dialing Key: Enabled
6. Ring Timeout: 30
7. Ring: Enabled
MI Path
Config-> Ports->Ports X-X ->Port X ->More->Local Dialing
Note: These are individual port settings.
8. Trunk Access Code: Code used to dial out from the EXT 7000.
9. PBX Extension: The 4-digit extension that corresponds to this port.
10. Restriction Prefix: Used to set restricted access numbers.
11. Collector Timeout: 5 (seconds). Used in conjunction with the Trunk Access Code.
12. Ring Timeout: Timeout (seconds) for local dialing ring.
13. Local Dialing Prefix: This only needs to be configured if it will be used to route a call from a PRI channel
to an analog line, such as ADTRAN 550. It will automatically get prefixed with the dialing digits entered
by the user.
TM
EXTender 7000 Installation Guide

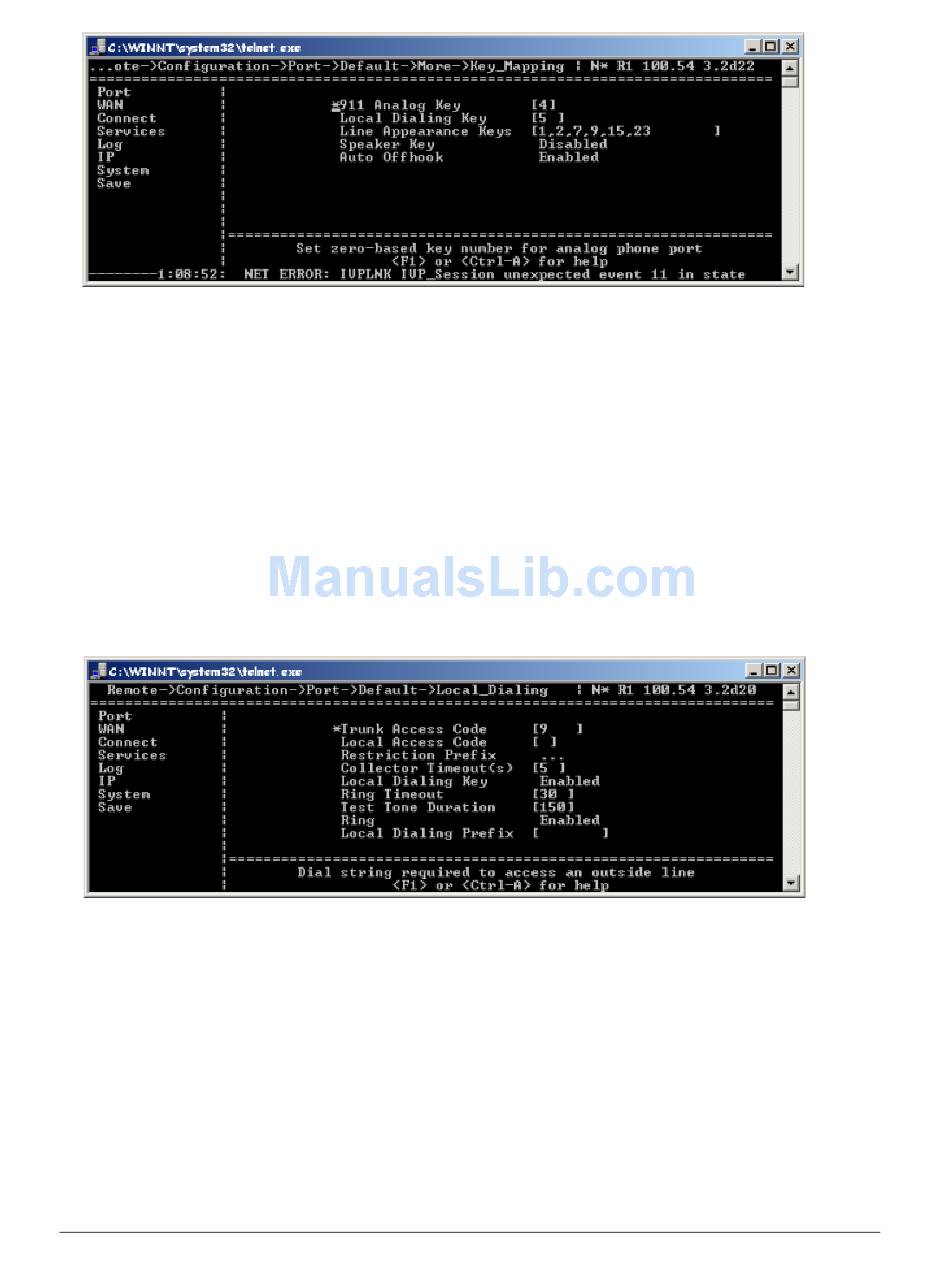

Figure 5-31: Key Mapping
Figure 5-32: Local Dialing
