Connect Parameters - Serial RVP (RVP_Direct) via WAN

The EXTender utilizes a direct serial connection to provide remote user connectivity. This means that the
WAN port is plugged directly into a network device. The WAN port (WAN 1 or WAN 2) that is used as the
main or "primary" port must be identified on the RVP Direct menu.
1. Access the Connect Menu using the following MI path:
MI Path
Configuration->Connect
The following menu appears:

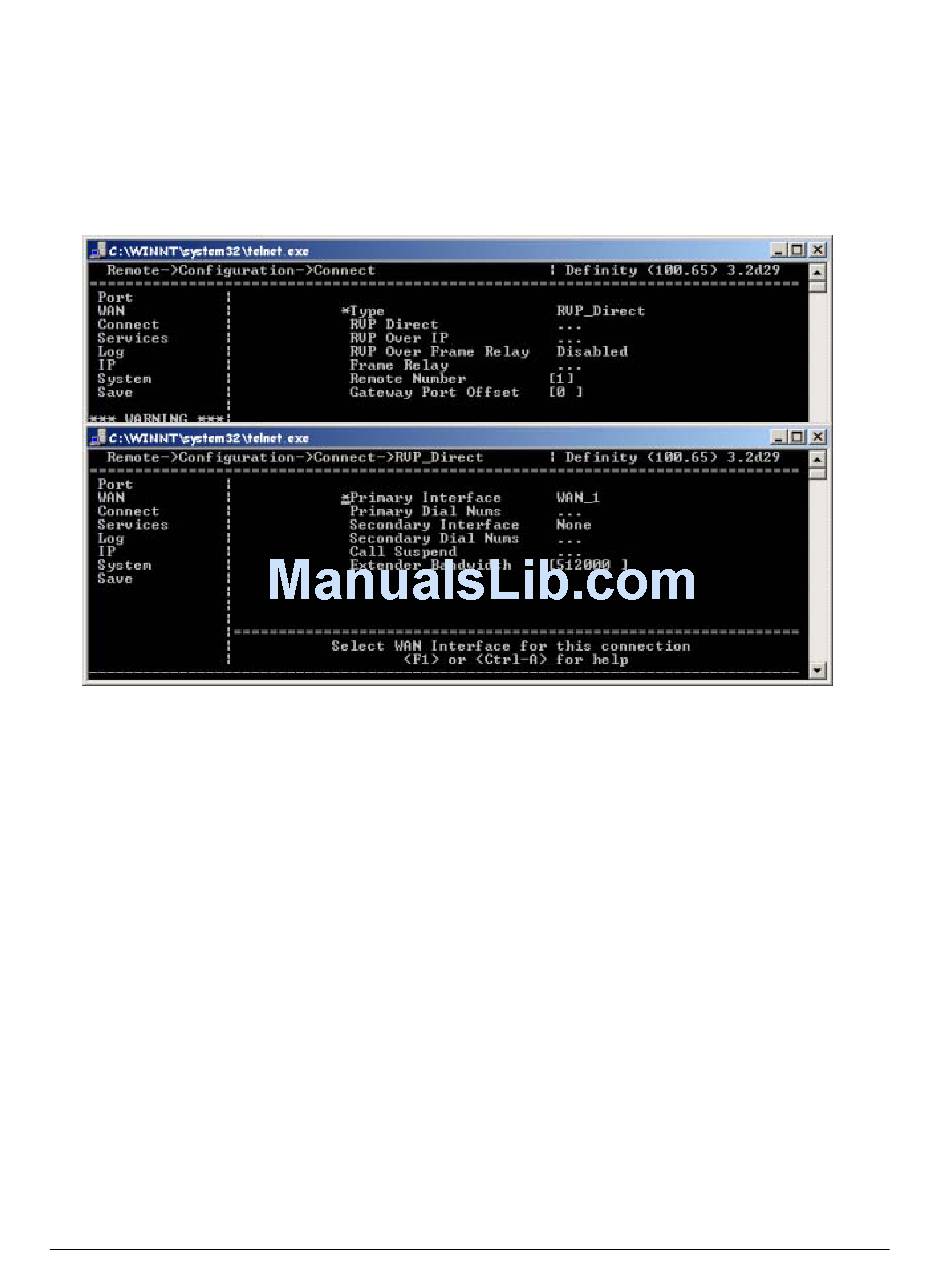

Figure 3-7: Serial RVP via WAN Configuration - RVP_Direct Menu
2. If necessary, use the → key to access the Type parameter. Set this parameter to RVP_Direct.
3. Use the arrow keys to access the RVP Direct menu.
4. Set the Primary Interface parameter to WAN_1. This is the main WAN port that connects the Remote
unit to the network device.
5. Press the → key to scroll through the choices.
6. Press the ↓ key to the Secondary Interface parameter. This identifies the secondary WAN port.
Note: This parameter is normally set to None.
7. Press the ← key to accept changes and go back to the Configuration Menu.
8. Press the ↓ key to the Save option, and press Enter.
