MCK EXTender 7000 Installation Manual page 69

13. Local Dialing Prefix: This only needs to be configured if it will be used to route a call from a PRI channel
to an analog line, such as ADTRAN 550. It will automatically get prefixed with the dialing digits entered
by the user.
14. Local Dialing Key: Enabled (Default Port Only)
15. Local DID: Direct Inward Dial (DID) number of the extended telephone assigned to this port. This value
is identical to the DS0 DN parameter.
16. B2 DID: Direct Inward Dial (DID) number of the fax assigned to this port.
17. Local Dialing Prefix: The key number that must be entered before the telephone number you are dialing
TM
EXTender 7000 Installation Guide

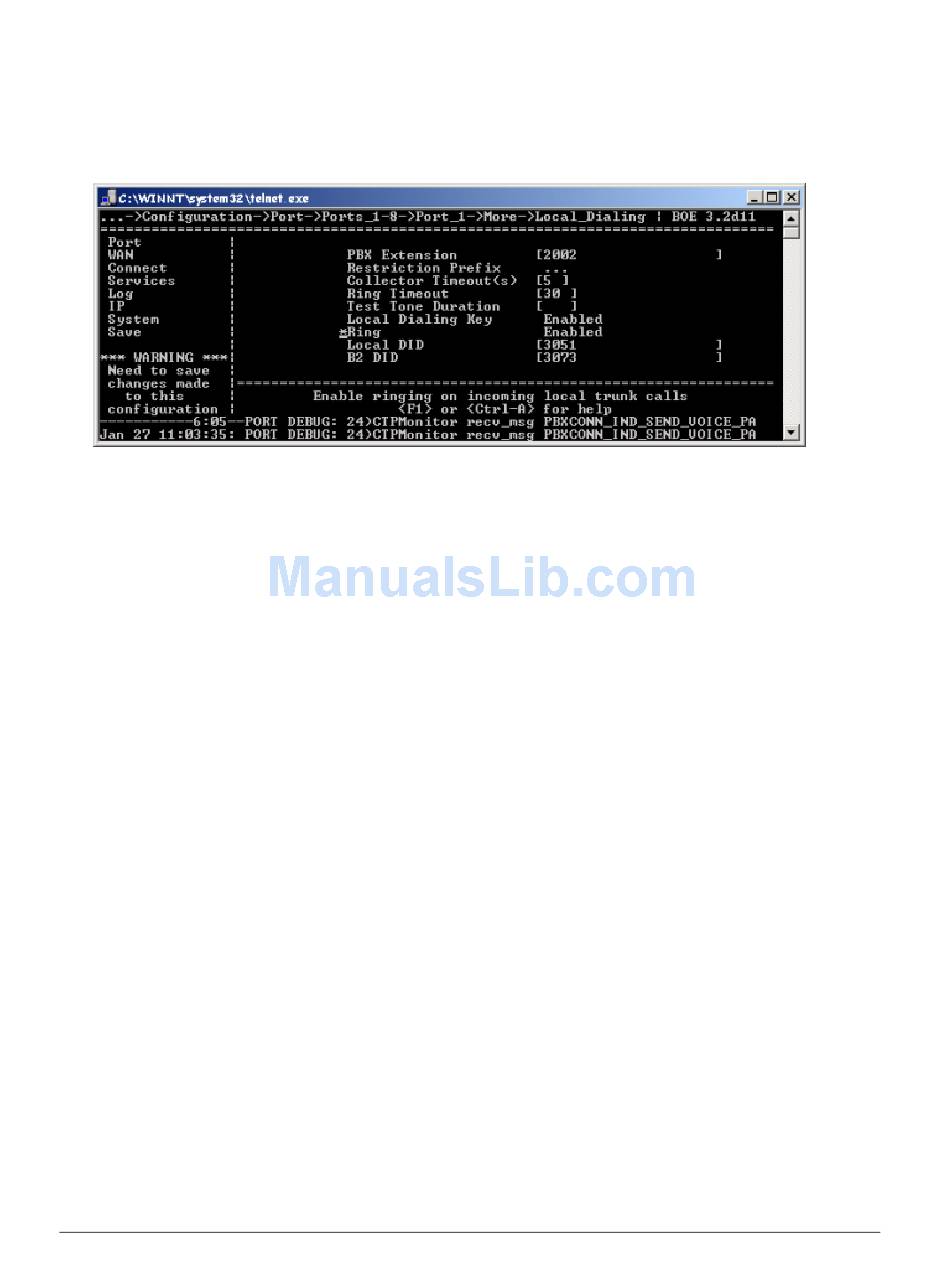

Figure 4-22: Individual Port - Local Dialing
Page 69
