The following menu appears:
2. Set the Clock Source parameter to T1PRI_Port1.
3. Set the Enabled parameter to Yes.
4. Set to Port 1 if the network is providing timing, or Port 2 to use the EXTender 7000 for the timing source.
Note: Point-to -Point T1's DO NOT provide timing.
5. Set the Mode parameter to PRI.
6. The Switch Type, Line Code and Framing parameters to be provided by the Telco.
7. The PBXgateway II uses the Dialback DN parameter to connect to the EXTender 7000. Enter a phone
number of the PRI line that is connected to the EXTender 7000.
8. Set the Line Code and Framing parameters with values provided by the Telco company (CO).
9. Select a value for the Line Build Out parameter to attenuate the signal before it leaves the extender.
Use a value recommended by the Telco company (CO).

Channel Setup - PRI

Assigning DS0 Channels

1. Use the arrow keys to access the DS0_Default Channel Setup menu, as shown below:
MI Path
Configuration->WAN->T1/PRI_Port(WAN3)->T1/PRI_Port_1-> Channel Setup-
>DS0_Default
TM
EXTender 7000 Installation Guide

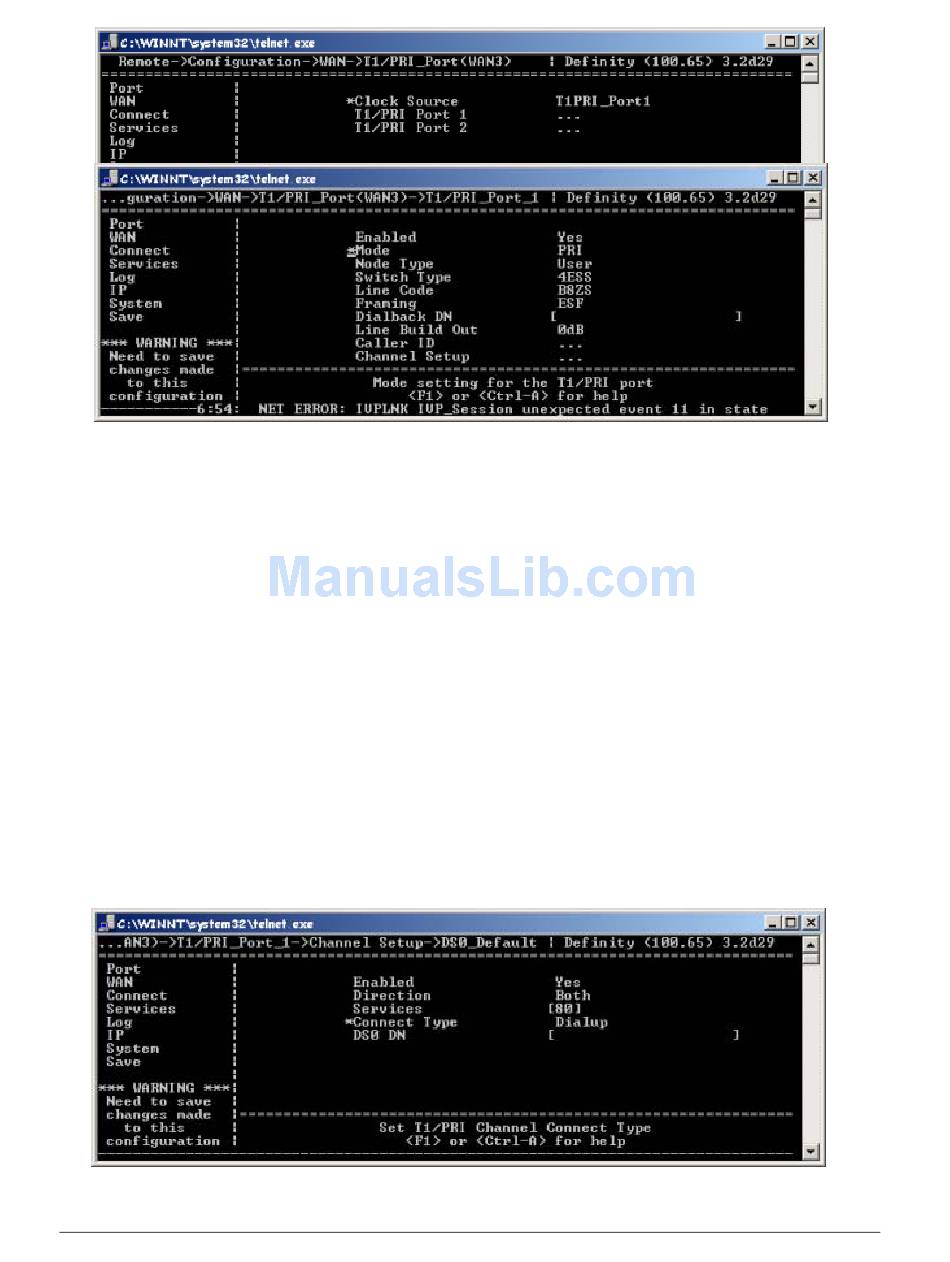

Figure 3-14: T1/PRI Port (WAN3) Parameters
Figure 3-15: Assigning DS0 Channels
