RVP_Direct via Leased T1 Line Configuration

This section describes configuring the EXTender 7000 for a basic Serial RVP installation using the T1/PRI
Ports on the MCK T1/PRI card.
Note: If you want to add Local Dialing capability to this configuration, see the EXTender 7000 User's Guide
for complete setup instructions. Leased Line T1 and Point-to-Point T1 configurations are identical.
After installation your system should be connected as shown in the figure below:
PBXgateway II
Punch Block
PBX
Corporate Office

Installation

• Connect a straight-through T1 cable from the network to the port labeled Port 1 on the MCK T1/PRI card
on the EXTender 7000.
• Connect a straight-through T1 cable from the network to the port labeled Port 1 on the MCK T1/PRI card
on the PBXgateway II.

Prerequisites for Configuration

• The PBXgateway II (at the corporate site) and the EXTender (at the branch office) must be installed
properly and the network link between both devices must be operational.
• The T1/PRI Port Setup parameters for the PBXgateway II must be set to match the corresponding
parameters on the EXTender.

Required Configurable Parameters

• RVP_Direct Parameters - Please see "RVP_Direct - Leased T1 Parameters on page' 28.
• T1/PRI (WAN3) - Please see "T1/PRI Port (WAN3) - Leased T1 Parameters on page' 27.
• Channel Setup - Please see "Dedicated Service to the DS0 Channel on page' 28.
• Local Dialing - Please see "Local Dialing Via PRI on page' 27.
TM
EXTender 7000 Installation Guide
PSTN
T1/PRI Card

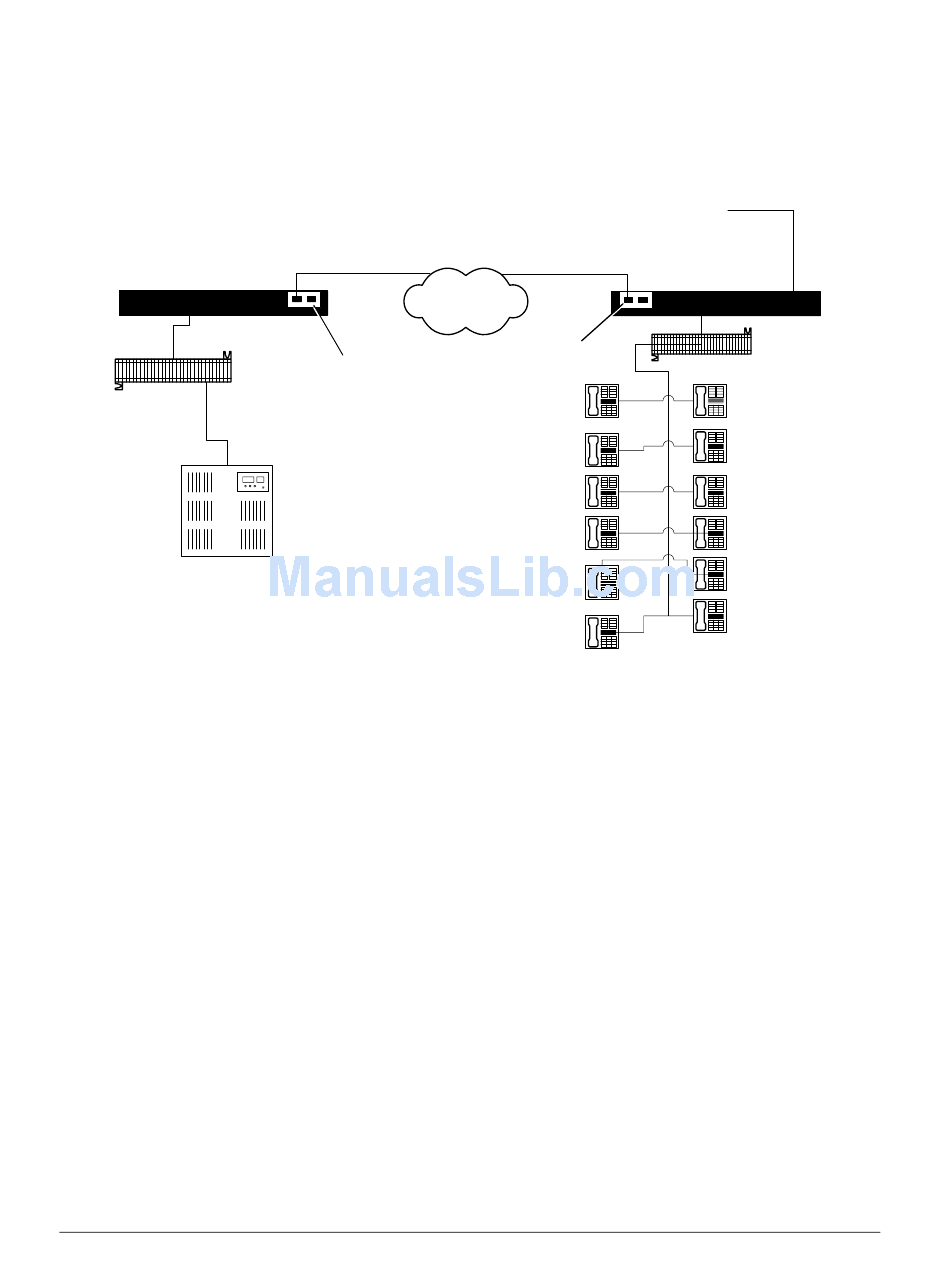

Figure 3-1: Serial RVP Installation via T1
Analog Phone Line
EXTender 7000
T1/PRI Card
Branch Office
Punch Block
Page 26
