T1/PRI Port (WAN3) - Leased T1 Parameters

This section provides instruction for the configuration of the Leased TI line that is connecting the EXTender
7000 to the Gateway.
1. Set the Clock Source parameter to T1PRI_Port1.
Set to Port 1 if the network is providing timing, or Port 2 to use the EXTender 7000 for the timing
source. Note: Point-to -Point (RVP_Direct) T1's DO NOT provide timing.
2. Go to the T1/PRI Port Setup Menu to perform the basic setup for the T1/PRI ports and channels. This
menu is located in the WAN submenu structure, and can be accessed using the following path:
MI Path
Configuration->WAN->T1/PRI_Port(WAN3)->T1/PRI_Port_1
The following menu appears:
3. Set the Enabled parameter to Yes.
4. Set the Mode parameter to T1.
5. Ignore the following parameters, as they do not apply to Leased T1 configurations: Node Type, Switch
Type, and Dialback DN.
6. Set the Line Code and Framing parameters with values provided by the Telco company (CO).
7. Select a value for the Line Build Out parameter to attenuate the signal before it leaves the extender.
Use a value recommended by the Telco company (CO).
TM
EXTender
7000 Installation Guide

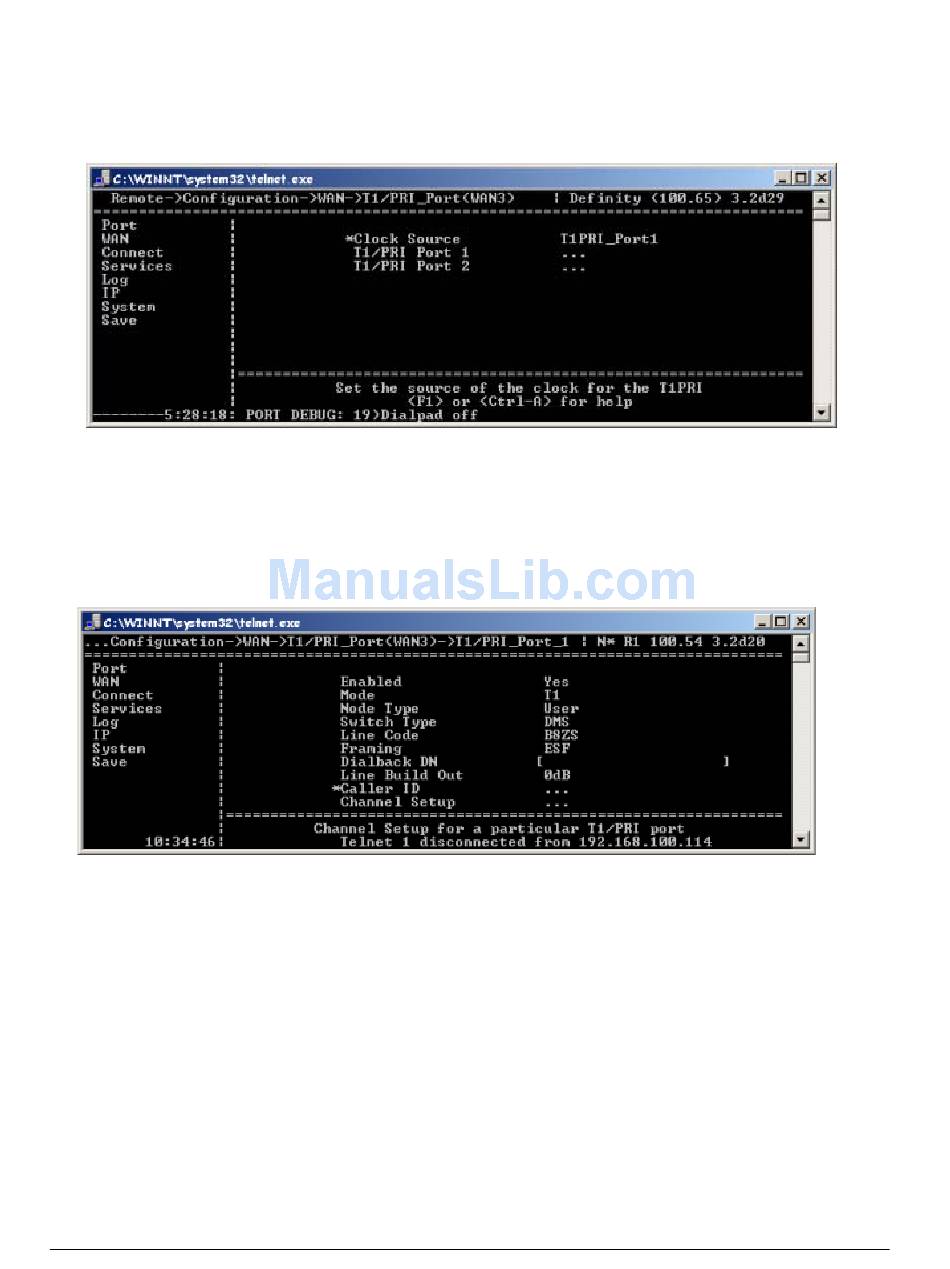

Figure 3-2: Clock Source
Figure 3-3: T1/PRI Port (WAN3) Parameters
Page 27
