Figure C-4 120 Ω (2.048 Mb) E1 Cabling - Motorola iDEN Site Controller System Manual

Appendix C Cabling Diagrams
Site Controller Cabling
Site Controller E1 120 Ω (2.048 Mb) cabling
Table C-3
Index Part
number number
43 3082468Y03
44 3082468Y03
GPS GPS
-48V RTN -48V RTN
GPS
-48V RTN
Figure C-4 120 Ω (2.048 Mb) E1 Cabling
C-8

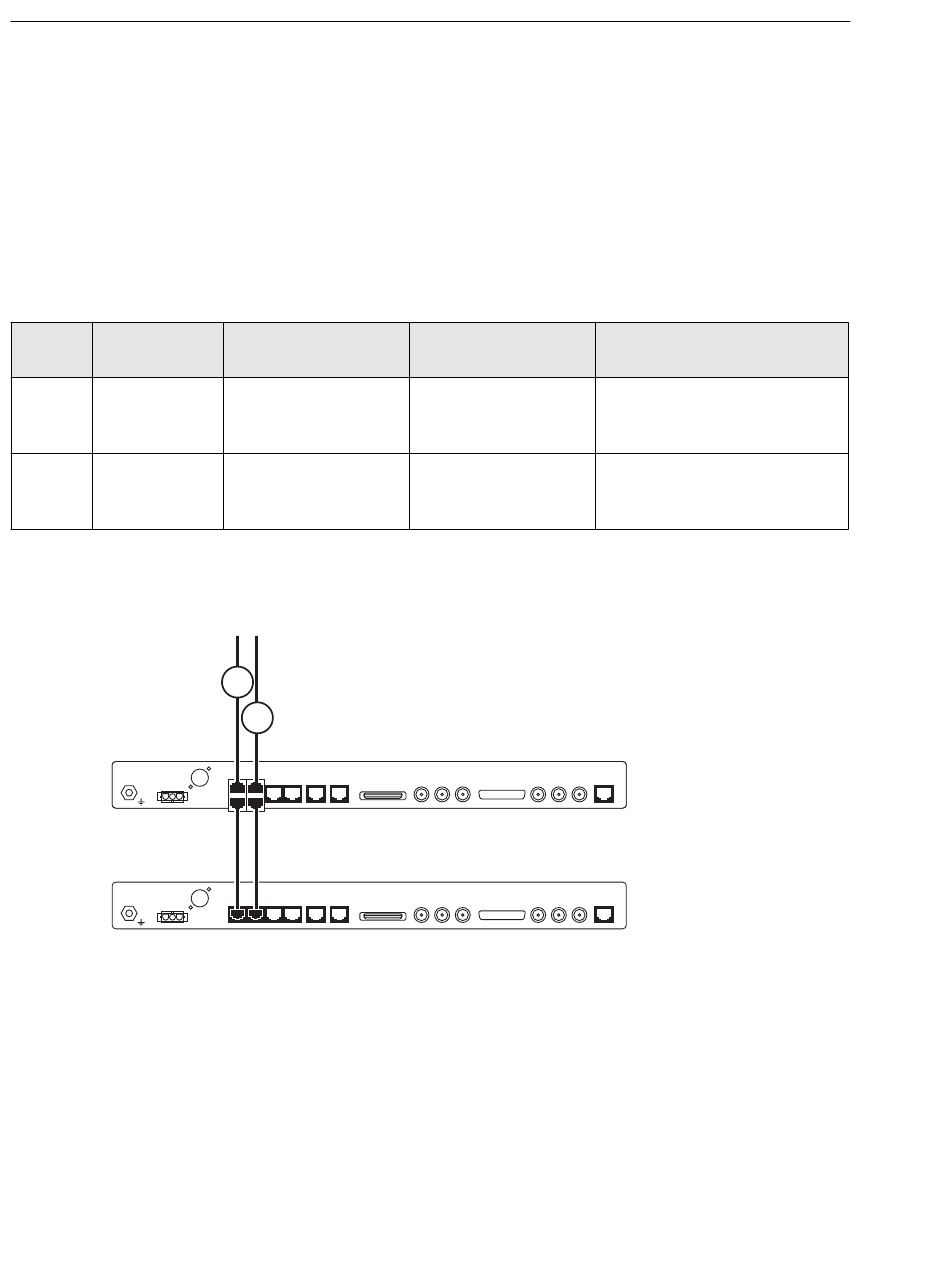

Table C-3 identifies and Figure C-4 shows site controller E1 120Ω (2.048
Mb) cabling.
All cabling for E1 120Ω Control Racks is the same as that shown in
Note:
Table C-1 (Site Controller T-1 Cabling) . In addition, the following
cables shown in Table C-3 and Figure C-4 are also included for E1
120Ω communication.
From
Modular T-Adapter on
Controller A, T1/E1-1
Connector
Modular T-Adapter on
Controller A, T1/E1-1
Connector
TO NETWORK
43
44
T1/E1 T1/E1
BAT BAT
1 1 2 2 3 3 4 4 REDUND REDUND SERIAL SERIAL
T1/E1
BAT
1 2 3 4 REDUND SERIAL
To
Network
Network
SITE REF OUT SITE REF OUT
iSC400 iSC400
102600JNM 102600JNM
X.21 X.21
PARALLEL PARALLEL 3 3 2 2 1 1 10B2-3 10B2-3 10B2-2 10B2-2
SITE REF OUT
iSC400
102600JNM X.21
PARALLEL 3 2 1 10B2-3 10B2-2
Gen 3 Site Controller System Manual
Notes
10B2-1 10B2-1 10/100B-T 10/100B-T
10B2-1 10/100B-T
iSC503
032801JNM
68P80801E30-A 5/1/2002
