Chapter 6 System Testing
T1 Connection Test
6-18
DEMARC POINT
T1 PHONELINE
SMART JACK
TELCO MAINTAINED

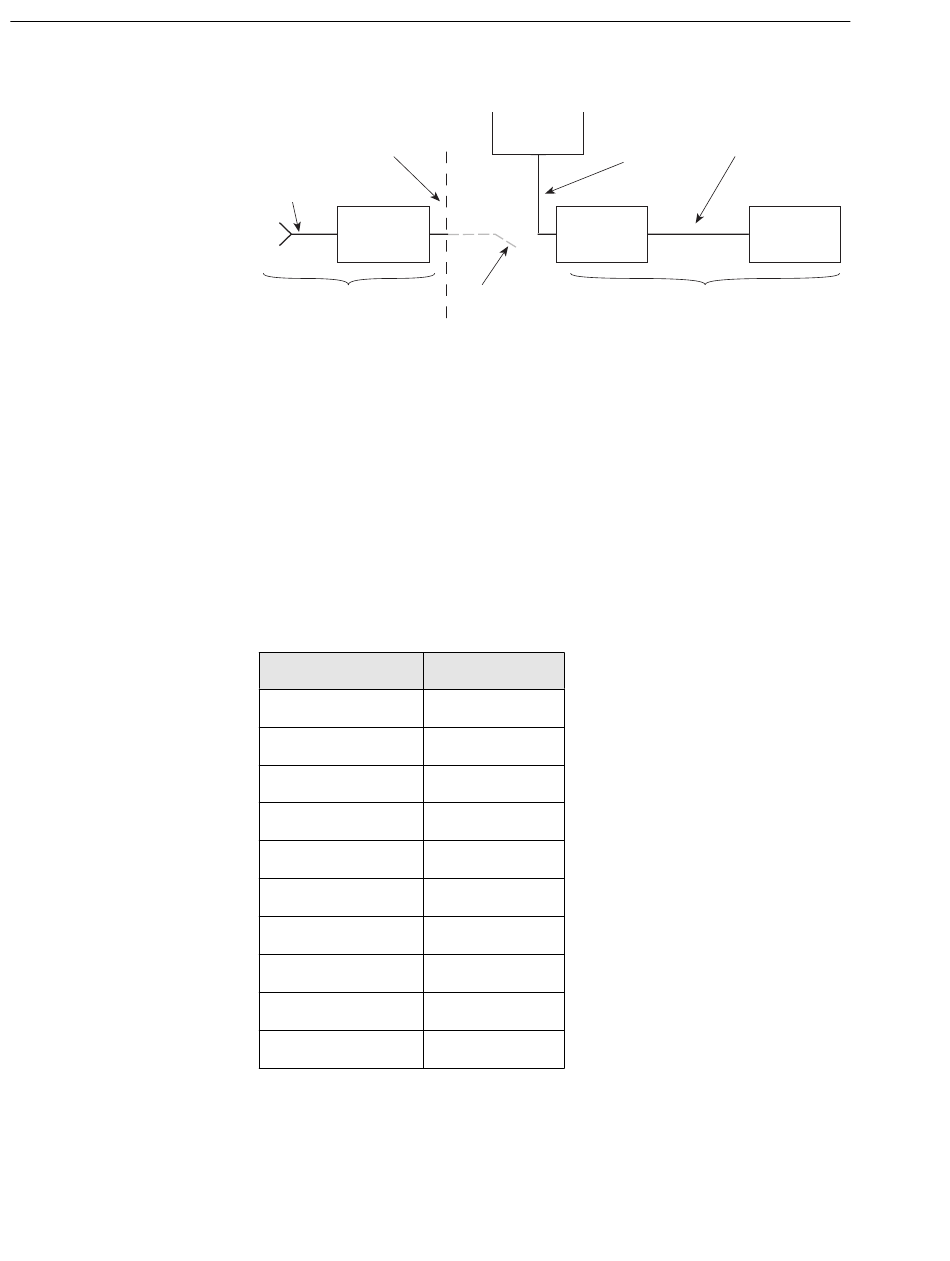

Figure 6-2 T1 test connections
Disconnect the Telco SmartJack from the Telco surge arrestor.
2.
Connect the T1 test set into the surge arrestor.
3.
If the Controller is not currently connected to the Telco demarcation
point, the T1 test set can be plugged directly into the Controller.
Configure the T1 test set to the settings indicated in Table 6-3.
4.
Table 6-3 Settings for the T1 test set
Function
Receive input
Transmit output
Timing
Test
Code
Print Event
Mode
Pattern
Results I
Results II
T1 test procedure
This test involves equipment looping using the loop [line #] and deloop
[line #] MMI commands.
