7.4.18 Logic Tool

This tool allows you to select different logical operation types and execute logic operation.
Select AND, OR, NOT, NAND or NOR as Logical Operation Type, and click
or enter data directly. You can also click
Note
If there is logic module in the solution, you can go to Solution → Others → Solution Result to link
the result of logic tool to the solution.

7.5 Communication Settings

The communication settings determine how the device outputs data, and you can go to Solution
→ Output to select different communication tools according to actual demands.

7.5.1 UDP

In basic parameter interface, set output information as Input Variable, and enter Local IP, Local
Port, Target IP and Target Port according to actual solution demands.
Note
Input Variable currently supports format result data only.
In display interface, enable Display Text to set text's color, front size, transparency, position X, and
position Y.
SC2000 Series Vision Sensor User Manual
to add multiple data.

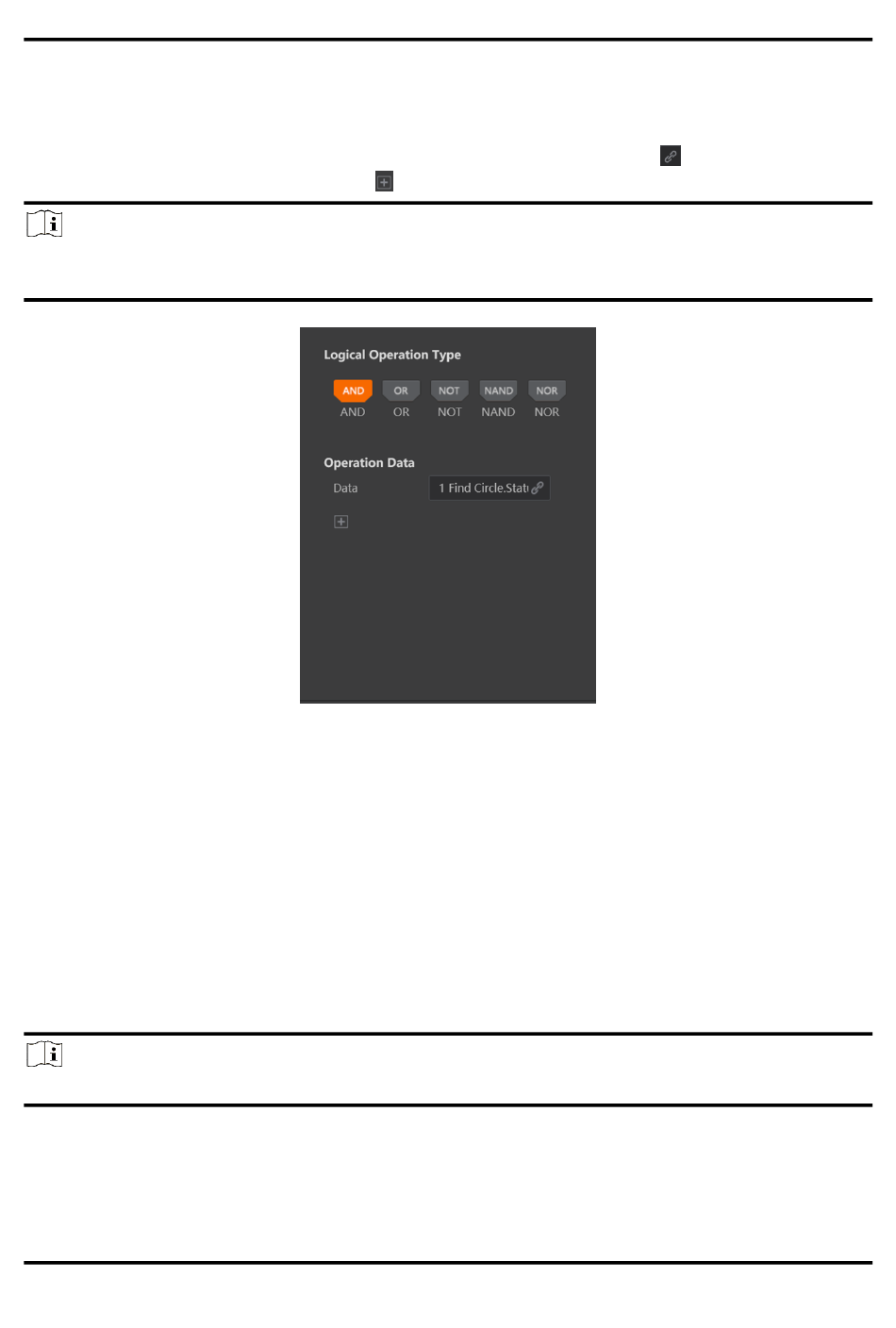

Figure 7-31 Logic Tool
49
to link data source
