4. Click to select the matching point location, and move the blue cross in the image to the
ideal location.
5. Click to create template.
6. Optional: Click
7. Set Scale Mode and Threshold Mode according to actual demands.
 Scale Mode refers to the fineness level of the feature, and it includes manual and auto modes.
Under auto mode, the device will automatically adjust fineness level of the feature. Under
manual mode, you can manual set its range between 1 and 20 in Roughly Adjust Scale. The
larger the feature scale, the sparser the extracted feature edge points are.
 Threshold Mode refers to the gray value difference between the feature point and the
surrounding background, and it includes manual and auto modes. Under auto mode, the
device will automatically adjust. Under manual mode, you can manual set its range between 0
and 255 in Contrast Threshold.
8. Click OK.
Parameter Settings
Min. Match Score
The match score refers to the similarity between feature template and targets in the searched
images. The min. match score refers to the similarity threshold. The searched target will be
searched when the similarity reaches this threshold. This parameter also affects the search
speed.
Max. Match Quantity
It is the max. target quantity that can be searched.
Match Polarity
SC2000 Series Vision Sensor User Manual
to download the current template to the PC.

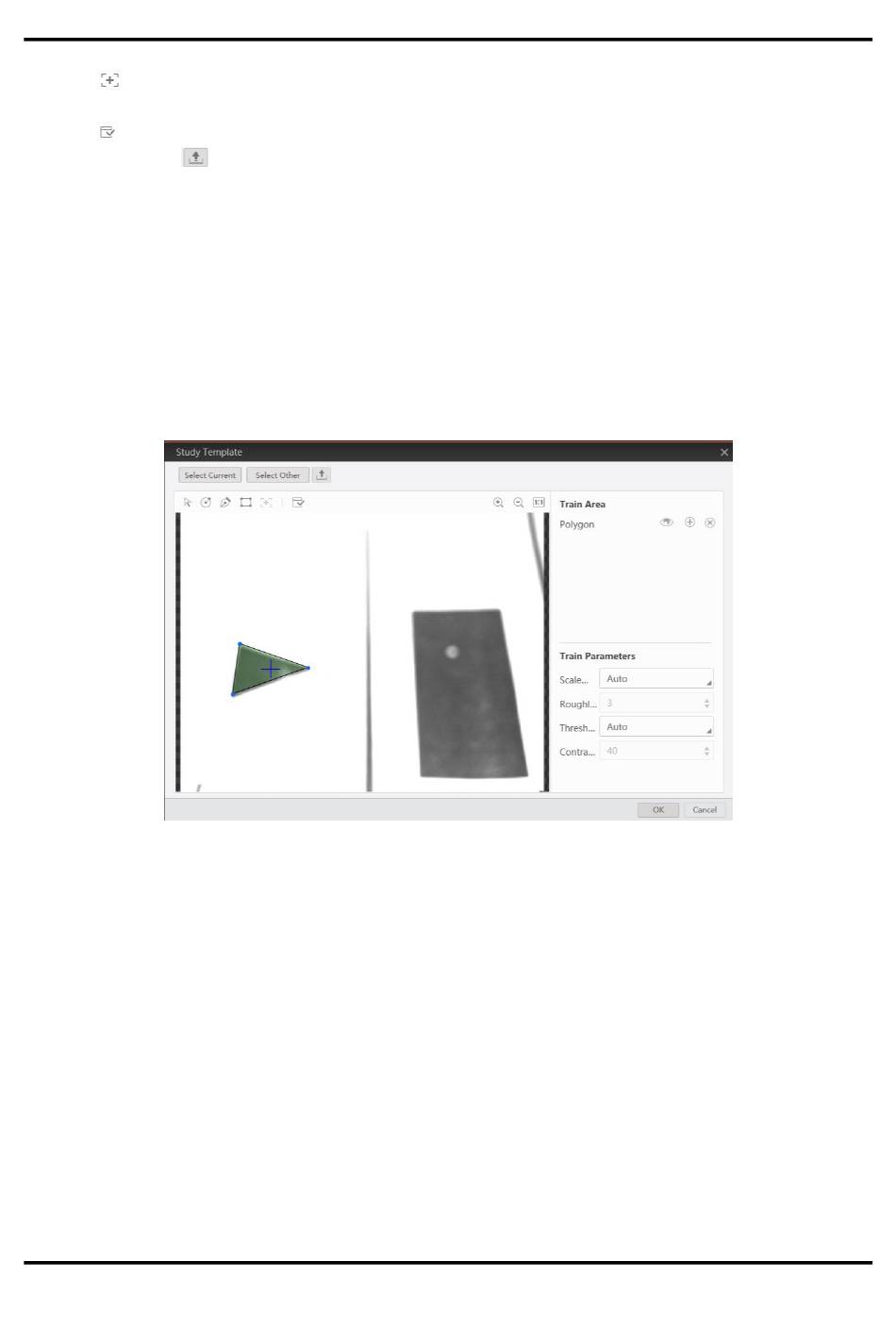

Figure 7-12 Create Feature Template
