7.4.9 P2L Measure

This tool is used to measure the distance between a pint and a line, and calculate the actual
distance between them. You need to enter the specific information like coordinates of the point
and line.
Result Display
In display area, you can set different judge methods of image detection result, including angle,
vertical distance, Perpendicular Foot, etc.
In Judge Method, enable Judge by Angle, Judge by Vertical Distance, Judge by Perpendicular Foot
X, etc, and enter corresponding range according to actual demands.
In Image Display, click
Click to edit OK color, NG color, and transparency.
In OSD, enable Display Text to set text's color, front size, transparency, position X, and position Y.

7.4.10 Image Savings

This tool is used to save image caches into the device, and saved images can be downloaded to the
local or be exported to the test library for the device debugging.
Image Source
By default, the image source is the images acquired by the device.
Input Status
Click to link the previous module status, and image saving is decided by the linked data
result.
SC2000 Series Vision Sensor User Manual

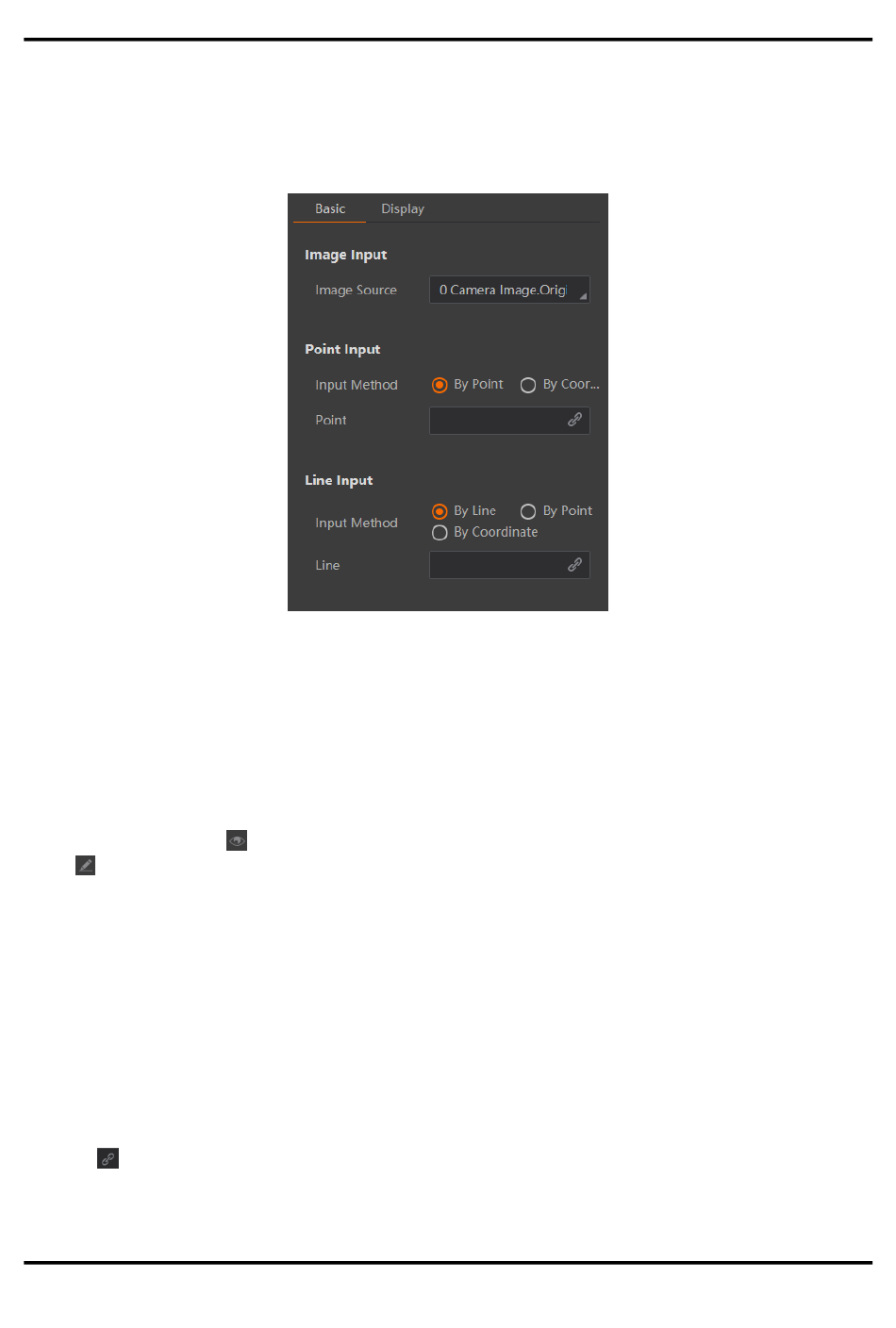

Figure 7-21 P2L Measure
to display or not display input line 1, input line 2 and intersection point.
