CCM Reset
Note
This parameter is only available for the color device and rgb is selected as pixel format.
CCM stands for Color Correction Matrix, and it is used to help improve inter-instrument
agreement in display and light sources measurements.
You can click Edit to adjust R, G and B value according to actual conditions, and their range is
from -15.99 to +15.99, and click Apply to apply. You can click CCM Reset to reset parameters.
AWB Mode
SC2000 Series Vision Sensor User Manual

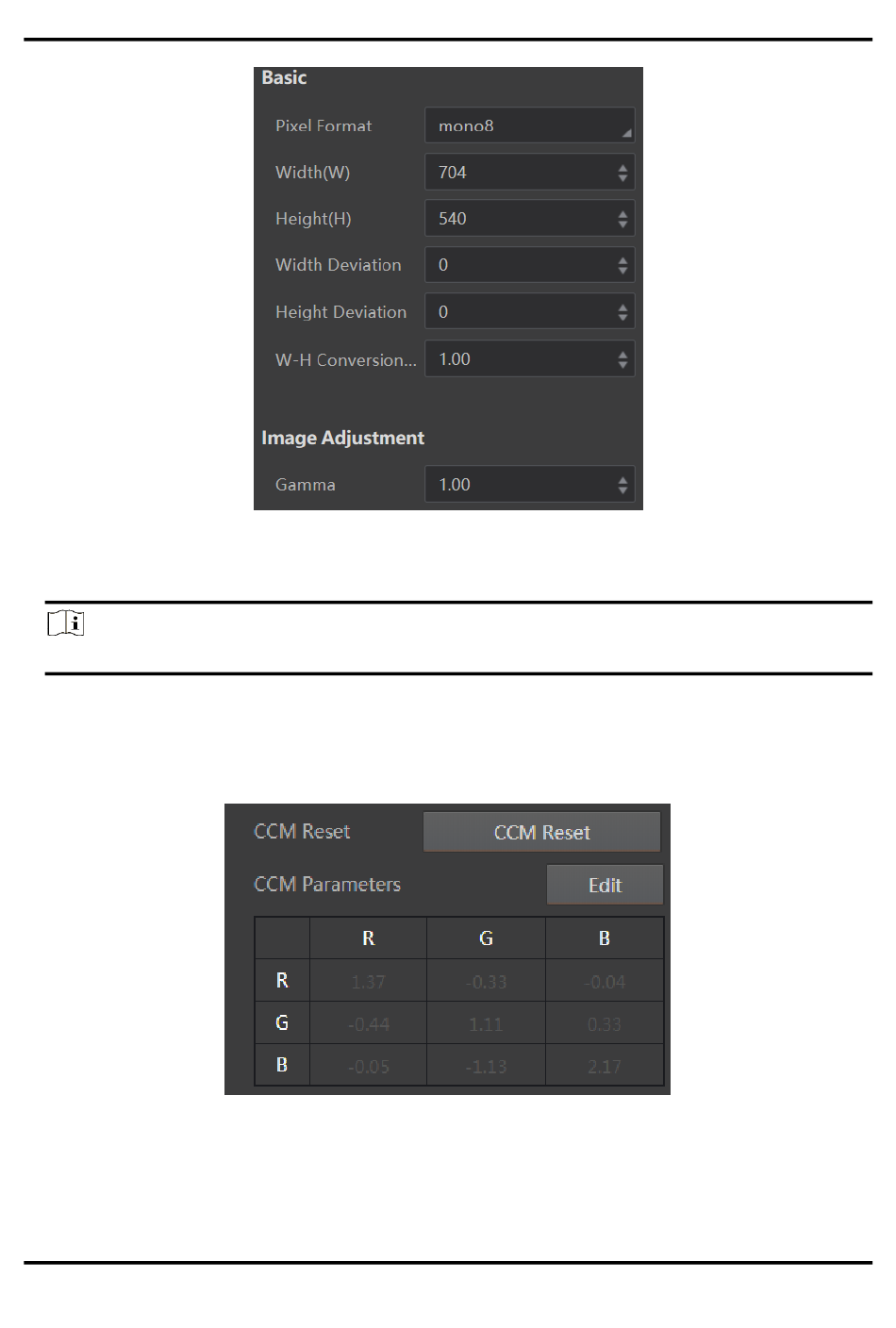

Figure 7-3 Set Image
Figure 7-4 Set CCM
20
