Chapter 4 I/O Wiring

4.1 Input

The device's Line 0/1 is input, and Line 2/3/4 are bi-directional I/O(s) that can be set as input. The
internal circuit of input signal is as follows.
Note
The maximum input current of input signal is 25 mA.

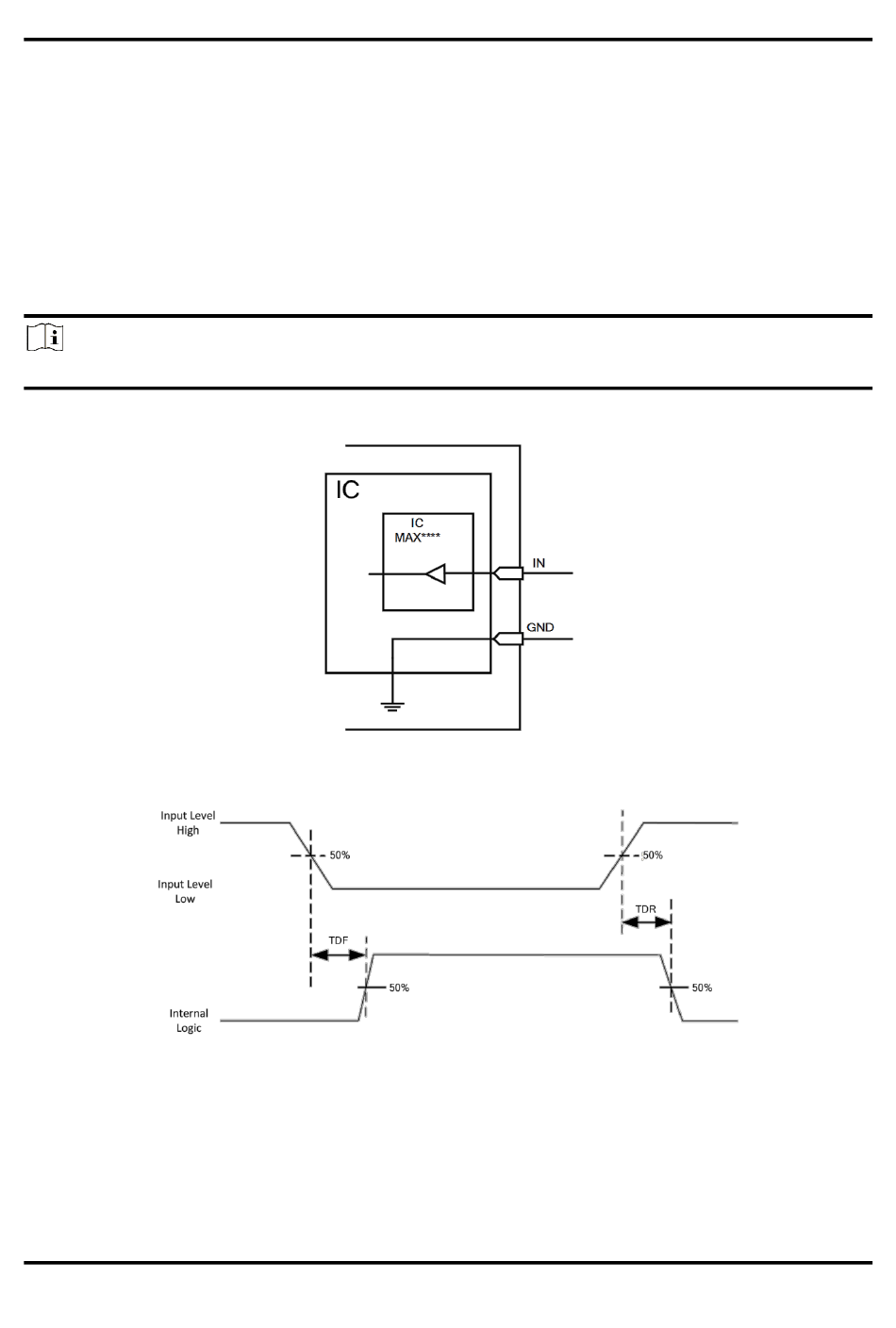

Figure 4-1 Internal Circuit of Input Signal
Figure 4-2 Input Logic Level
