Enable Communication Trigger Mode - HikRobot SC2000 Series User Manual

The level high of the trigger signal is valid. As long as the trigger signal is in level high, the device
is in image acquisition status.
Level Low
The level low of the trigger signal is valid. As long as the trigger signal is in level low, the device
is in image acquisition status.
Set Trigger Delay
The trigger delay function allows the device to add a delay between the receipt of trigger signal
and the moment the trigger becomes active.
Note
● This parameter is available only when selecting rising or falling edge as the trigger type. If level
high or level low is selected as the trigger type, you can set trigger start delay or end delay
according to actual demands.
Set Filter Time
The external trigger input signal of the device may have signal bounce that may cause false trigger.
Thus, it is necessary to set filter time.

7.2.5 Enable Communication Trigger Mode

The device also supports triggering by receiving communication string.
Select ON as Trigger Mode, select COMMUNICATION as Trigger Source, and enter String and
Delay according to actual demands.
SC2000 Series Vision Sensor User Manual

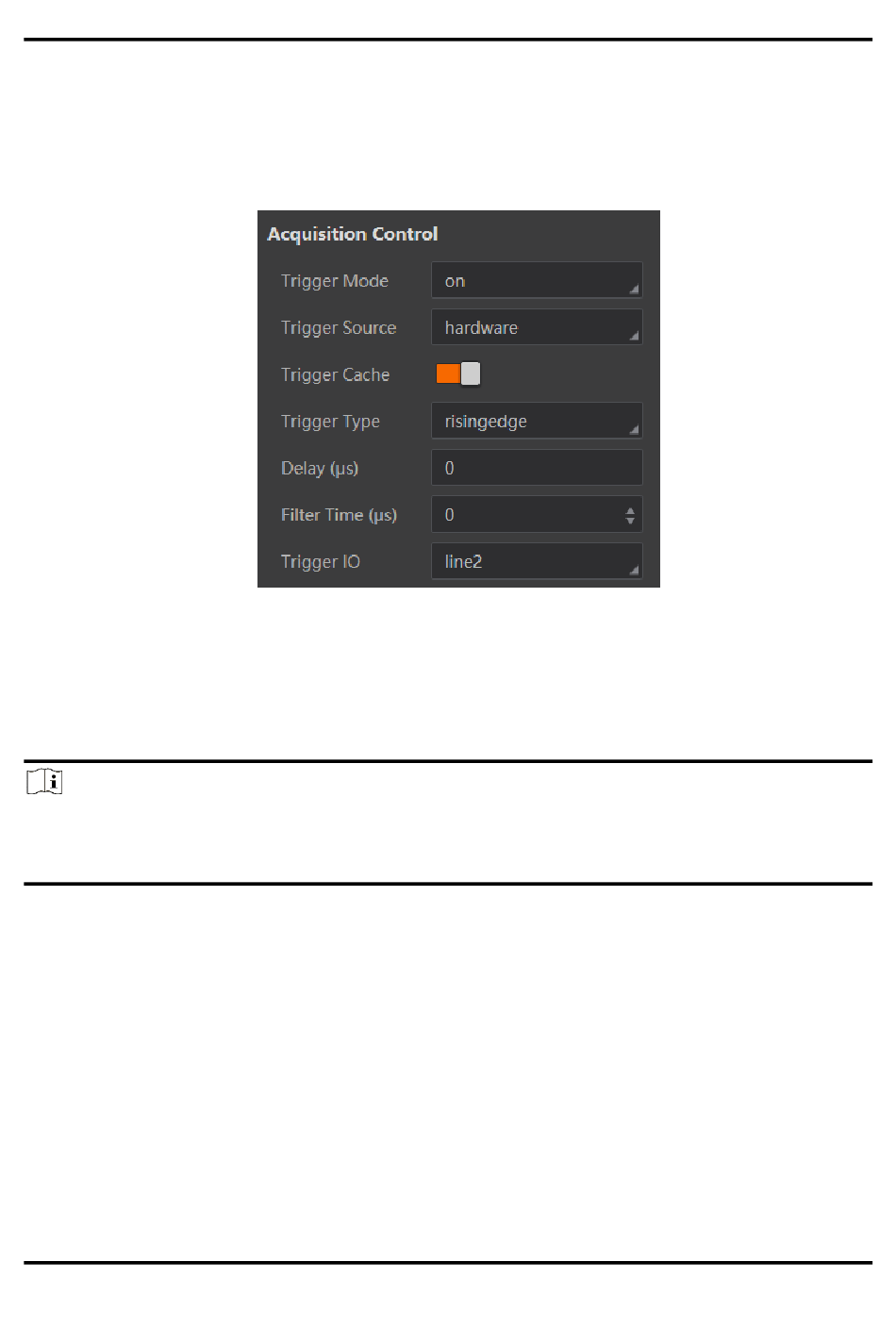

Figure 7-8 Set Trigger Type
