SC2000 Series Vision Sensor User Manual
ROI Settings
For most tools, you need to set image source and ROI area in basic parameter interface before
setting specific operating parameters.
Image source is the images acquired by the device by default. ROI area allows you to create or
reuse certain areas, you can select different shapes to draw directly, or select different reuse
methods to determine the ROI.

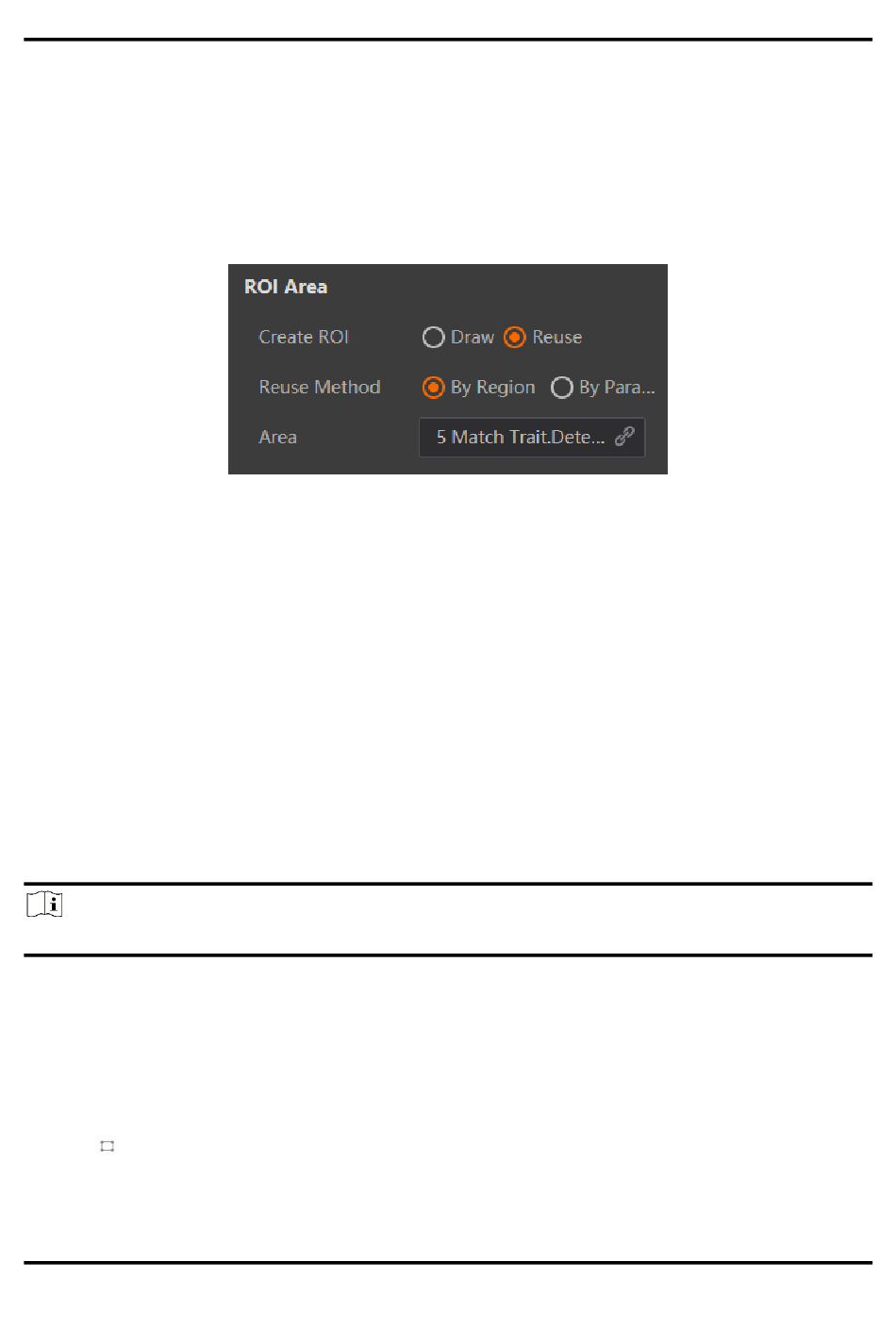

Figure 7-11 Set ROI Area
Regarding fixture, you can link the specific information of fixture tool after enabling it. See Fixture
Settings for details.

7.4.1 Feature Matching

This tool uses the edge feature of the image as a template to determine the search space in
accordance with the preset parameters, and to search targets that are similar to the template in
images.
Feature Template
There are 2 ways to create feature template for feature matching. Go to Template, and click
Upload to upload local template to create feature template. Or click Create to create feature
template.
Note
For new solution, it is recommended to click Create to create feature template.
Create Feature Template
Steps
1. Click Create to create template.
2. Click Select Current or Select Others as template.
3. Click to create rectangle mask.
