No.
Name
1
17-Pin Interface
2
Focus Knob
3
OK/NG Indicator
4
Lens Cap
SC2000 Series Vision Sensor User Manual
Chapter 2 Appearance

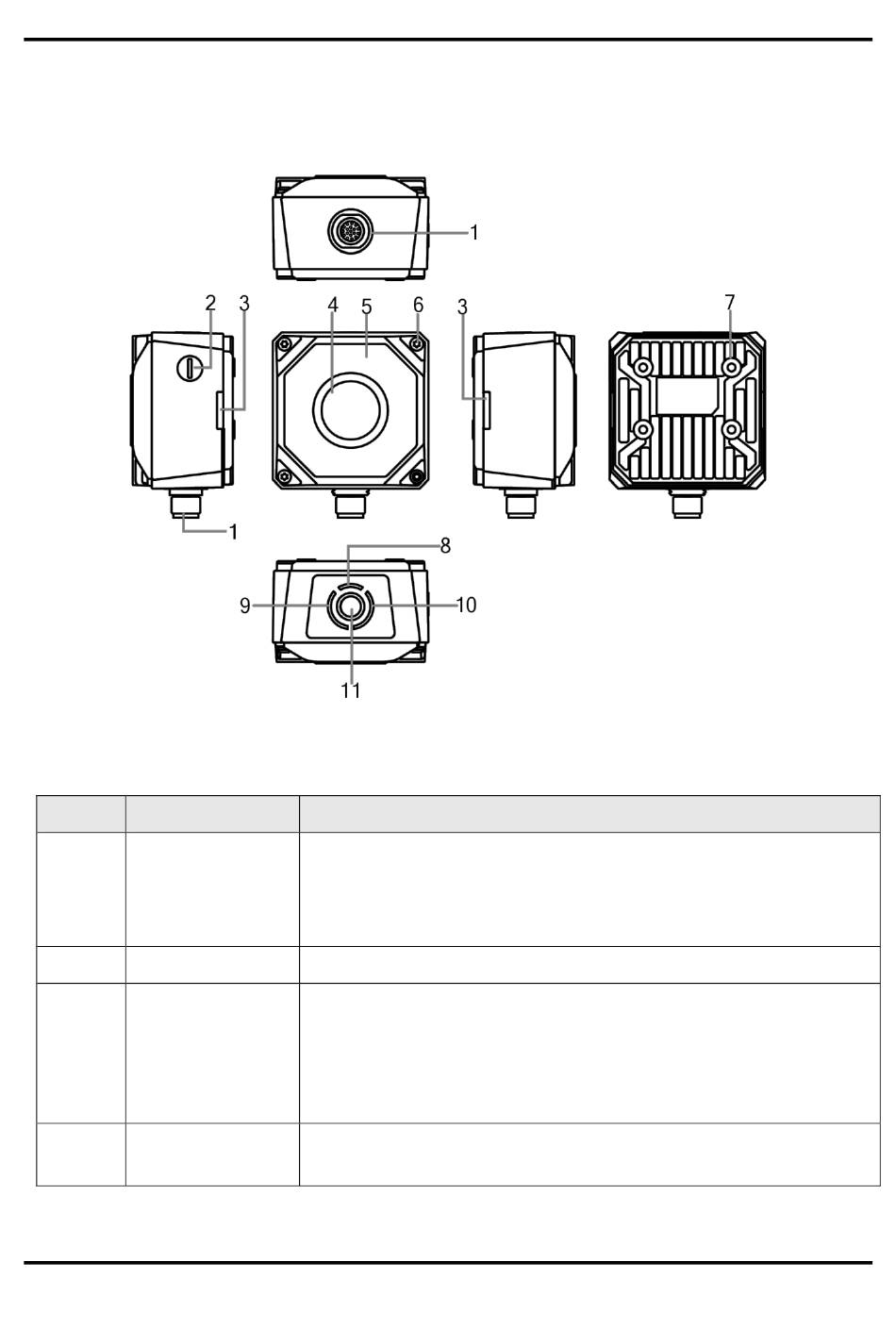

Figure 2-1 Appearance
Table 2-1 Description
It provides power, input/output, Ethernet, and serial port signal.
The interface is designed with screw threads to tighten
connection between the device and cable, and thus avoiding
influence caused by vibration.
It is used to adjust focal length manually.
It indicates the result of solution.
● The green indicator lights when the solution result is OK.
● The red indicator lights when the solution result is NG.
● When switching solutions, the indicators both light. After
switching, the indicators both are unlit.
It can be replaced with other lens cap. Polarization lens cap is
optional.
Description
2
