OFF refers to the internal trigger mode.
7.2.3 Enable External Trigger Mode
Go to Trigger Mode to select ON as Trigger Mode.
Note
ON refers to the external trigger mode.
Set and Execute Software Trigger Mode
Steps
1. Select ON as Trigger Mode.
2. Select SOFTWARE as Trigger Source.
3. Click Software Trigger to send trigger commands.
4. Enter Delay time according to actual demands.
Set and Execute Hardware Trigger Mode
Steps
1. Select ON as Trigger Mode.
2. Select Hardware as Trigger Source.
3. Select specific line as IO Control, and set Input as IO Mode.
4. Select specific line as Trigger IO.
SC2000 Series Vision Sensor User Manual

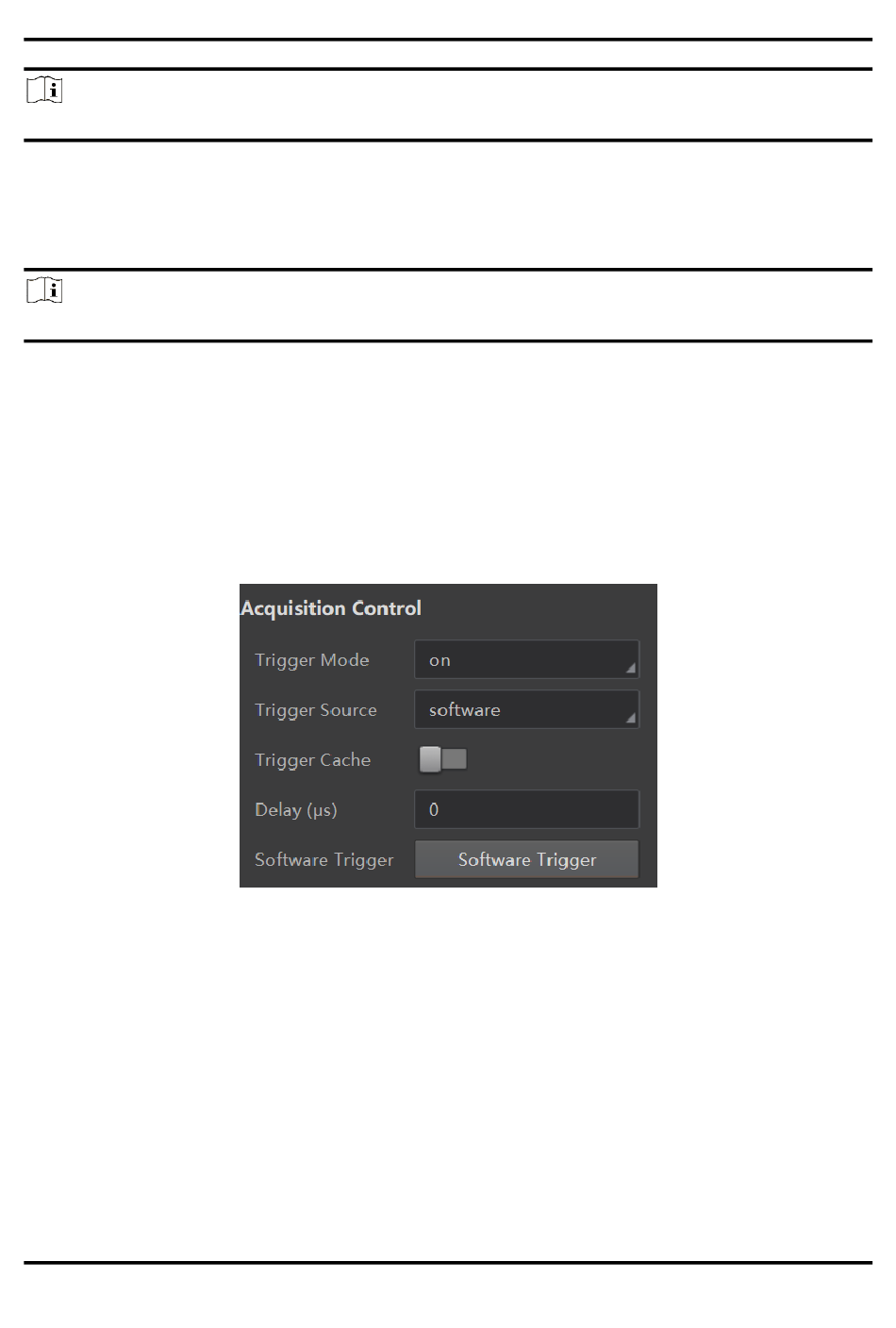

Figure 7-6 Set and Execute Software Trigger Mode
22
