SC2000 Series Vision Sensor User Manual

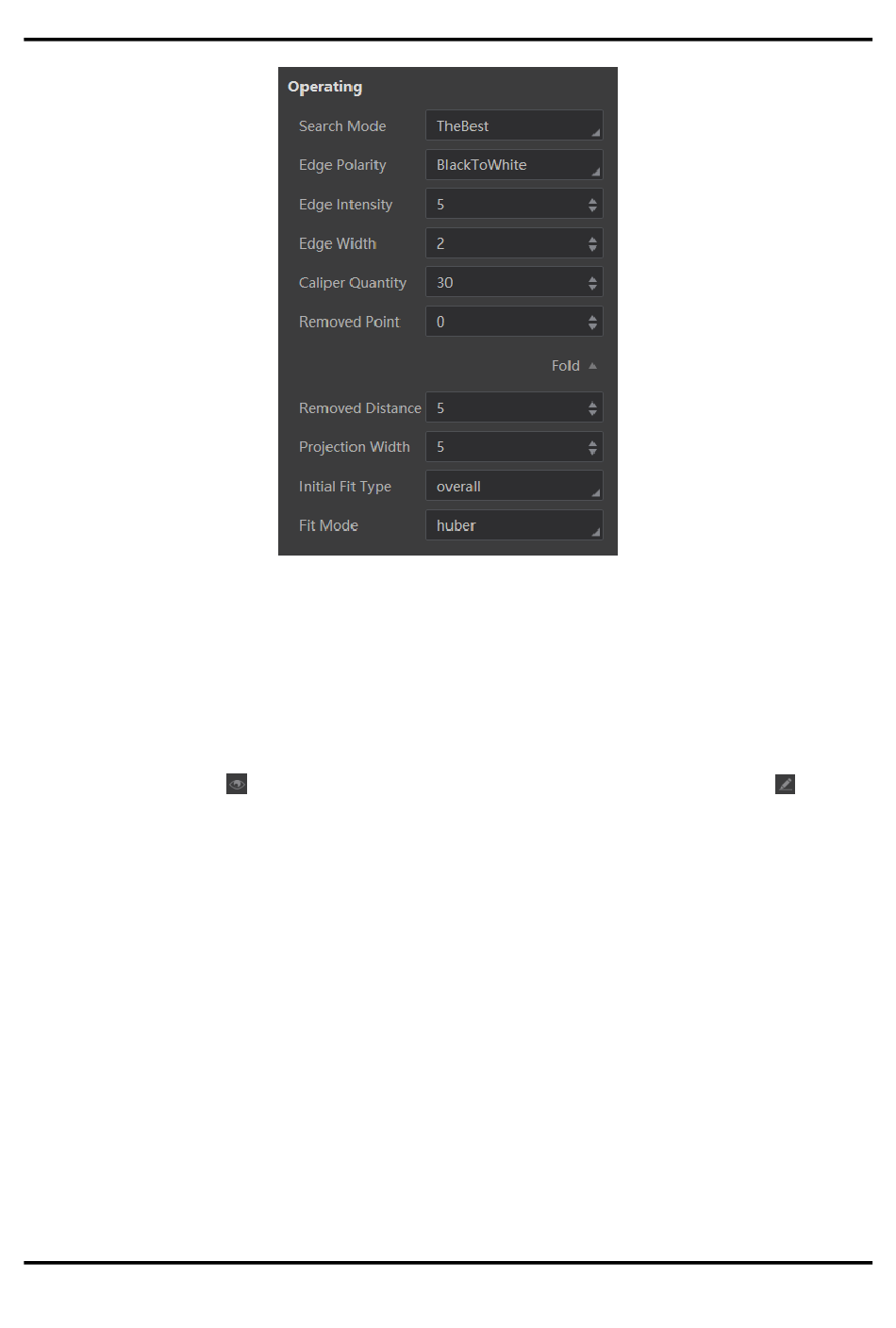

Figure 7-16 Set Operating Parameters
Result Display
In display area, you can set different judge methods of image detection result, including fit points
and angle.
In Judge Method, enable Judge by Fit Points, Judge by Angle, and enter corresponding range
according to actual demands.
In Image Display, click to display or not display line result and detection area. Click to edit
OK color, NG color, and transparency.
In OSD, enable Display Text to set text's color, front size, transparency, position X, and position Y.

7.4.5 Brightness Measure

This tool returns the gray mean value and the gray standard deviation of all the pixels in the ROI of
the object to be measured. When using, the ROI can be drawn at the ideal measurement position.
Result Display
In display area, you can set different judge methods of image detection result, including max.
value, min. value, mean value, standard deviation, etc.
In Judge Method, enable Judge by Max. Value, Judge by Min. Value, Judge by Mean. Value,
Judge by Standard Deviation, Judge by Contrast, and enter corresponding range according to
actual demands. You can also enable Reverse Result to reverse result.
34
