It includes No Polarity and Polarity.
Angle
It is the angle range of searched targets. The edited template is the reference.
Scale
Zoom in and zoom out with same scale. It is applied for the target and template with certain
percentage.
Max. Overlap Rate
The higher the overlap rate, the larger the overlap area that can be tolerated. The increase of
overlap rate may reduce the search speed, and introduce false detections.
Sort
You can specify the order in which the target is searched.
Overtime Control
When the time exceeds the time set by overtime control, the search will stop and no search
result will be returned. If it is set as 0, the overtime control function is disabled.
Threshold Type
It indicates contrast threshold mode in the matching stage, and it has 3 type, including Auto,
Model and Manual. Auto: It automatically determines the threshold parameter according to
the target image. Model: It uses the contrast threshold of the template as the contrast
threshold in matching phase .Manual: It uses the threshold set by the user as the threshold
parameter for searching.
SC2000 Series Vision Sensor User Manual

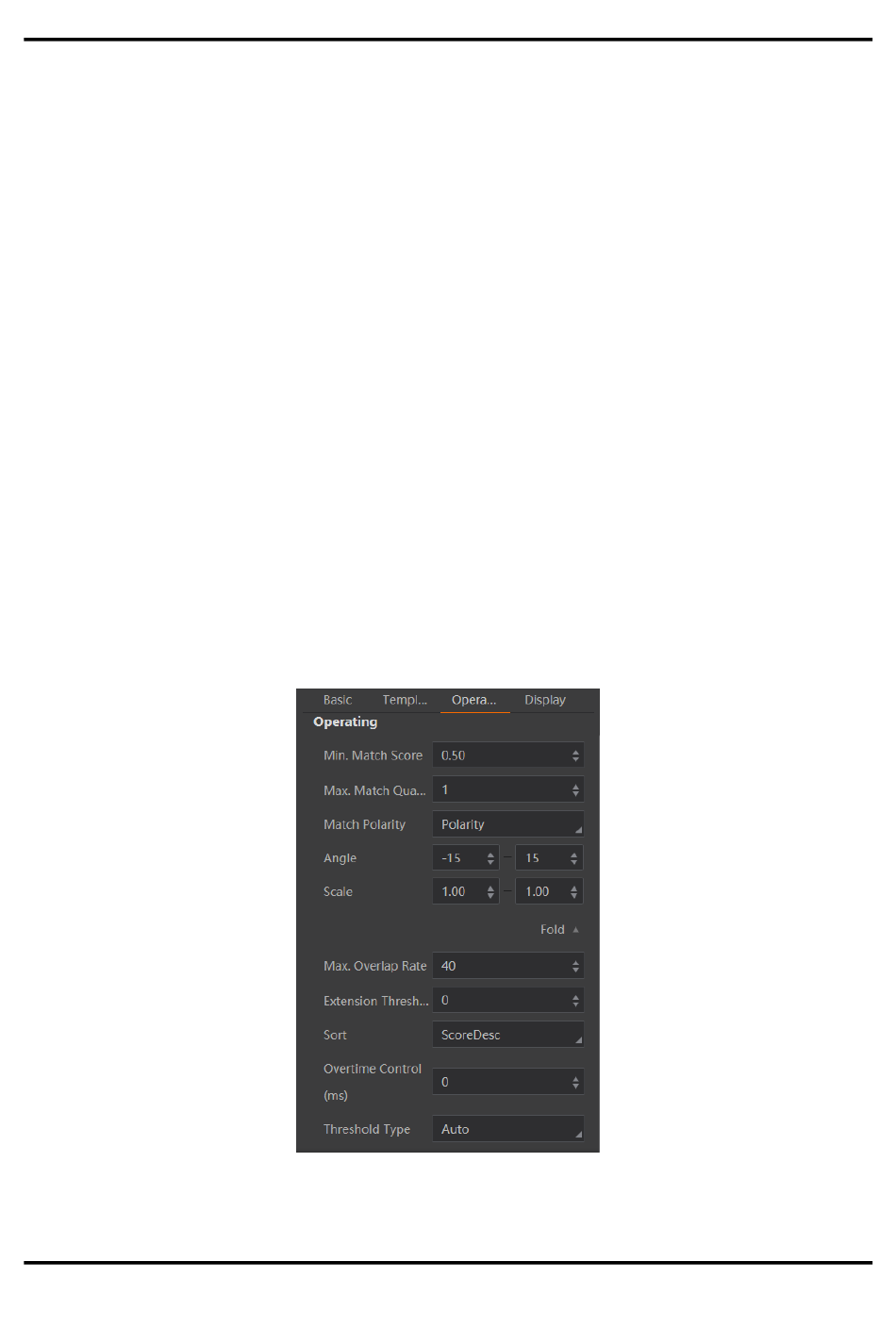

Figure 7-13 Set Operating Parameters
