SC2000 Series Vision Sensor User Manual

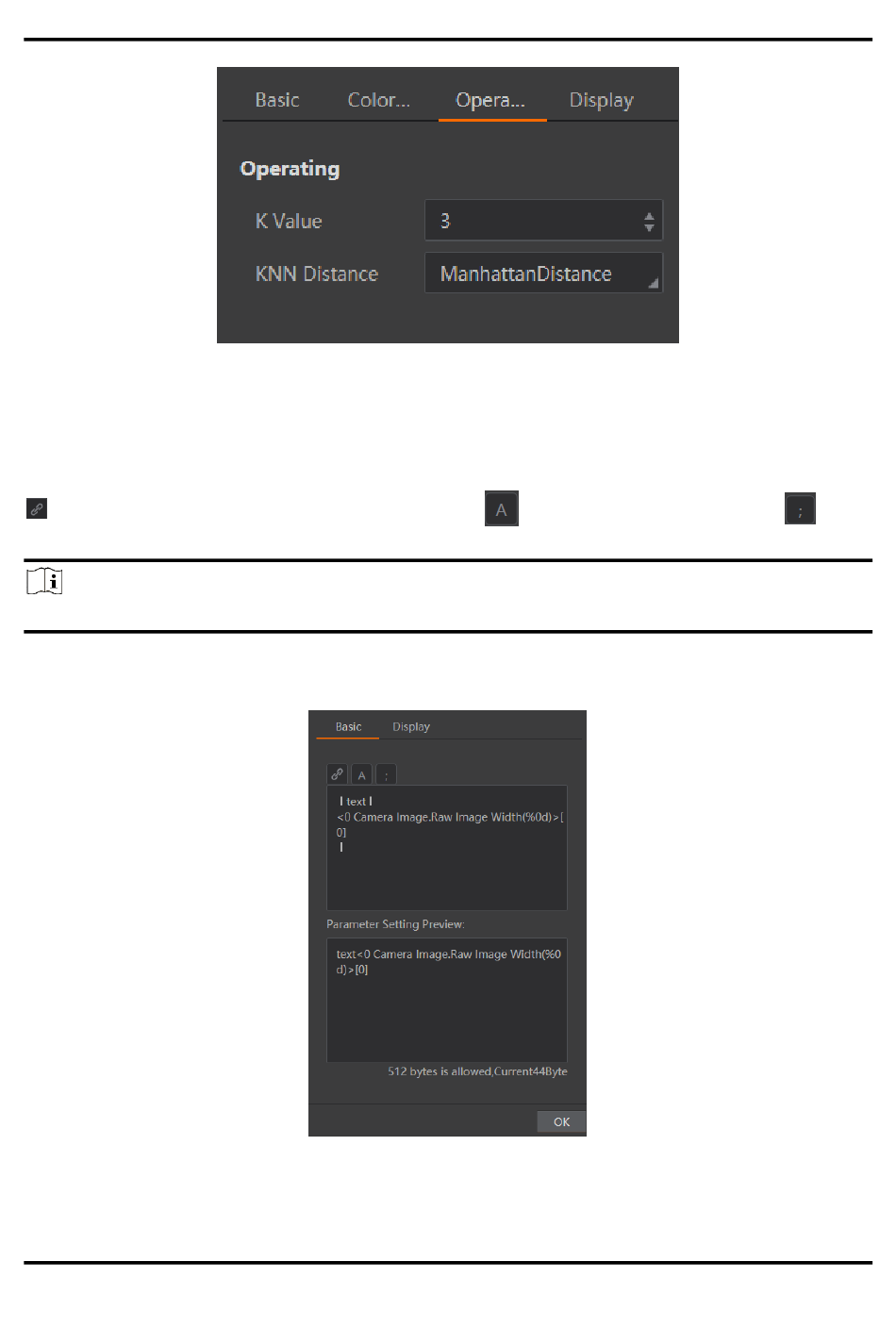

Figure 7-29 Set Operating Parameters
7.4.17 Format Tool
This tool is used to integrate and format data, and output string. In basic interface, you can click
to subscribe data that is needed formatting, click
to add text information, click
to
add semicolon, and then click OK.
Note
When configuring multiple data, if one of data cannot be obtained, format exception may occur.
In display interface, enable Display Text to set text's color, front size, transparency, position X, and
position Y.
Figure 7-30 Format Tool
48
