Parameter Name
Output Logic Level Low
Output Logic Level High
Output Falling Delay
Output Rising Delay
Output Falling Time
Output Rising Time
4.3 Input Wiring
The device can receive external input signal via I/O interface, and here we take one line as an
example to introduce input signal wiring.
Note
Input signal wiring may differ with different types of external devices.
PNP Device
Note
It is recommended to use 1 KΩ pull-down resistor.
NPN Device
Note
If the VCC of NPN device is 12 VDC or 24 VDC, and it is recommended to use 1 KΩ pull-up resistor.
SC2000 Series Vision Sensor User Manual
Table 4-2 Output Electrical Feature
Parameter Symbol
VL
VH
TDF
TDR
TF
TR

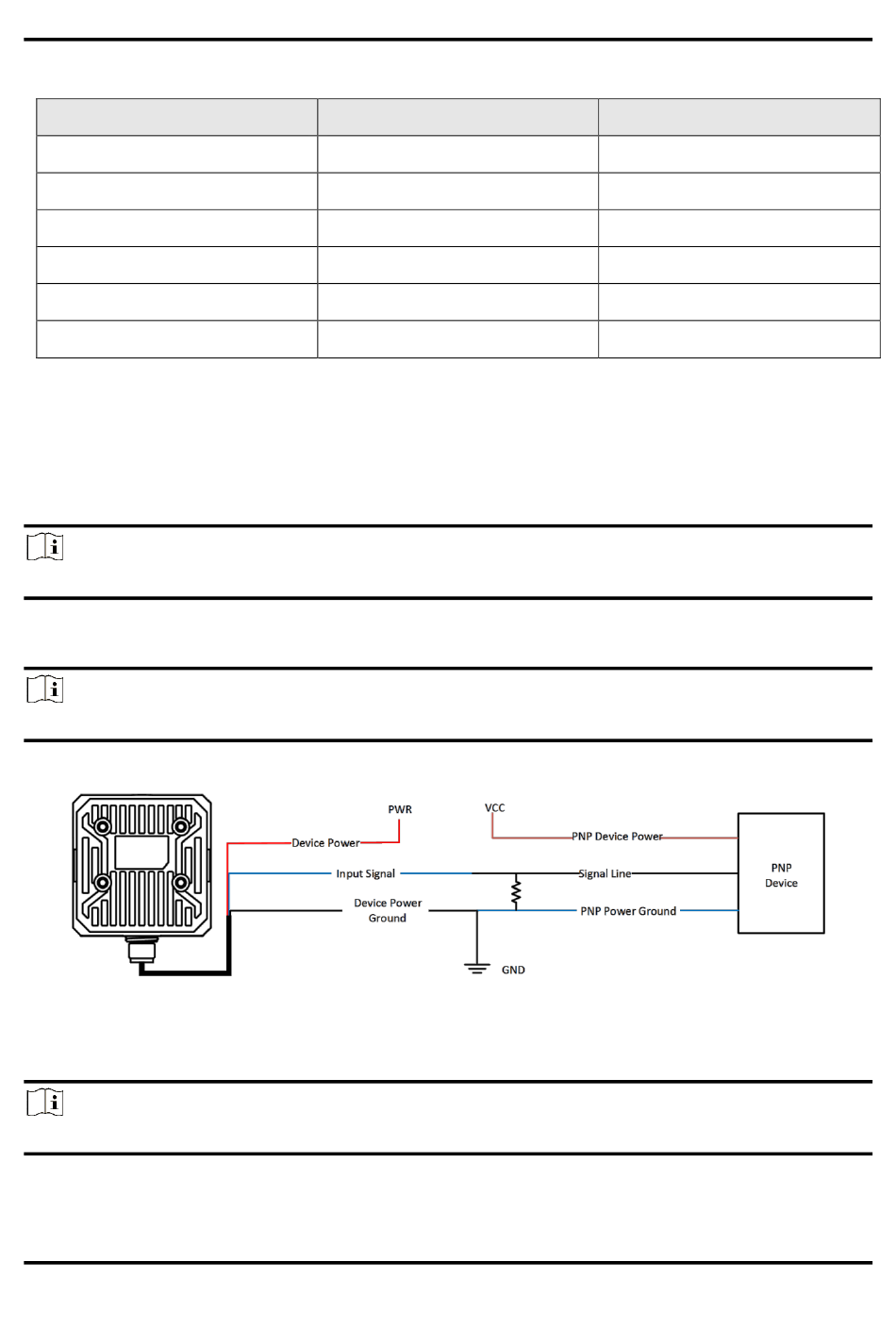

Figure 4-6 Input Signal Connecting to PNP Device
212 mV
11.8 VDC
0.4 μs
0.4 μs
0.4 μs
0.4 μs
9
Value
