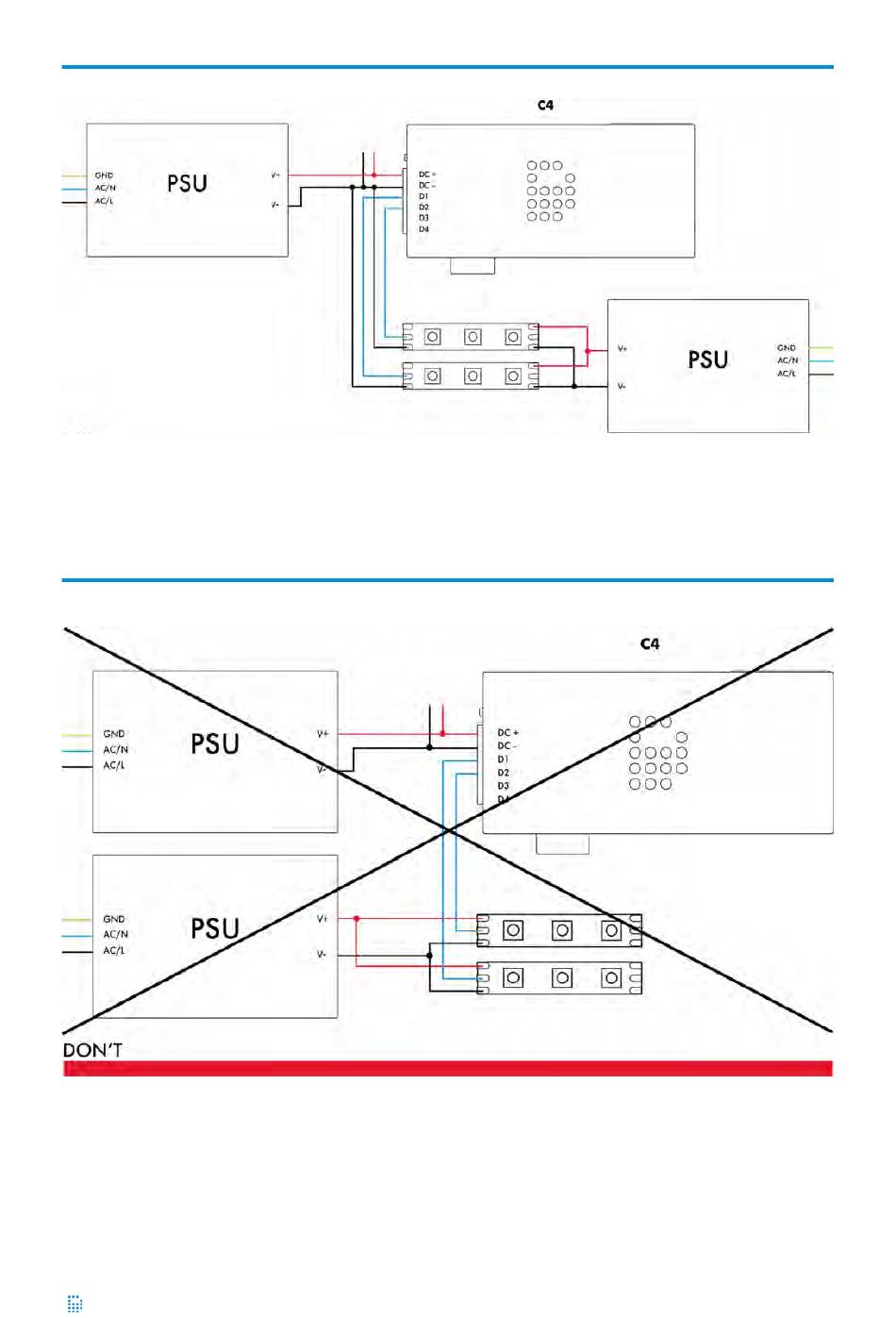

Wiring scheme 3
Each SPI Ground wire must be the same length as the Data wires per output, to prevent timing
issues. In this case the power supplies grounds do not need to be connected because they share the
ground through the LED product.
Wiring scheme 4
Grounds are not connected and not the same length as the data wires.
C4 Manual
Version 2.1.5
25 74
-
