DiGidot C4 Manual

Hide thumbs Also See for C4:

Advertisement

Quick Links

Download this manual
PUSHING CONTROL BOUNDARIES
C4 MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the C4 and is the answer not in the manual?

Questions and answers

Related Manuals for DiGidot C4

Summary of Contents for DiGidot C4

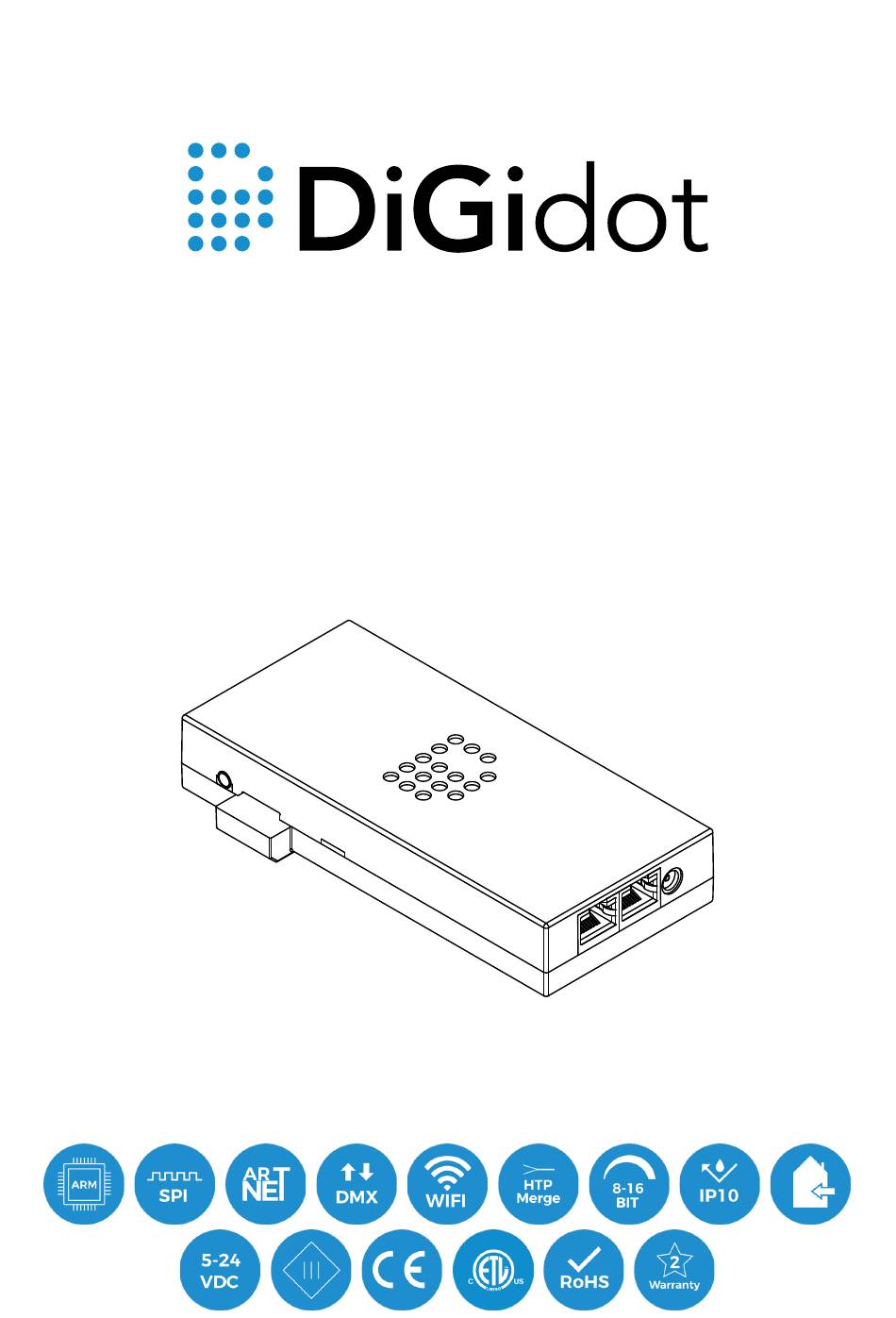

  • Page 1 PUSHING CONTROL BOUNDARIES C4 MANUAL...
  • Page 2 THANK YOU FOR CHOOSING DiGiDOT! The DiGidot C4 is the most powerful and versatile LED media controller of it’s kind. This multifunctional device enables you to create technically complex and creative pixel controlled light applications, whilst letting it look like child’s play.
  • Page 3 PRODUCT INFORMATION Box contents C4 Live version C4 Extended version Technical specifications Product drawings The DiGidot C4 explained Art-Net/DMX controller required Control software, DMX & Art-Net control platforms Supported ICs Key features explained 16 bit dimming output Configure LED color order...
  • Page 4 Some LED’s/colors are not responding correctly No MicroSD card Unknown error FAQ’s How many universes can be recorded? Can licenses be combined in a network? How does the DiGidot C4 know what time it is? ADDITIONAL INFORMATION Accessories Transmitting modules DiGidot Tx DiGidot TxRJ PCB...
  • Page 5 Receiving modules DiGidot Rx24 idot Rx48 DiGidot TRxB Accessories DiGidot TRRS Trigger Cable DiGidot RJ45 Network Cable DiGidot USB Power Cable DiGidot DIN-rail Clip DiGidot 8GB microSD Card Onlince resources Remarks Dictionary Compliances & EU declaration of Conformity Warranty Disposal and recycling...
  • Page 6 The DiGidot C4 has an enormous controlling capacity with up to 6,144 individual LEDs (depending on your licence). The DiGidot C4 has a built in web based user interface which allows the controller to be configured by computer and even wirelessly by smartphone or tablet.
  • Page 7 C4 Extended version DiGidot C4 Extended Output terminal connector Quick start guide DiGidot 8 GB microSD card USB power cable RJ45 network cable NOTE: We put great care in our products and have a high quality control standard. Nonetheless we advise to double check for missing or damaged items.
  • Page 8 DiGidot-C4 IOS/Google Play app Programming & control DiGidot C4 web based user interface DiGidot-C4 IOS/Google Play app Any type of Art-Net Software/Device (see page XX or visit our website: www.digidot.eu for a complete list of supported software) C4 Manual Version 1.0...
  • Page 9 CE, listed under No. 2016/119-1 cETL US, listed under No. 5010008 RoHs Applied standards EN60950-1:2006 +A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC60950-1 / EN60950-1, EN61006-6-3, EN55032 HS Code 8537109090 Product drawings 152.90 140.86 74.37 65.17 C4 Manual Version 1.0...
  • Page 10 Button Art-Net/DMX controller required In order for the DiGidot C4 to work in a system setup you will require a third party Art-Net/DMX software or console. The DiGidot C4 controllers are known to be work- ing with various professional grade softwares and consoles, such as: MADRIX, Pharos, ArKaos, Resolume, MadMapper, POET, grandMA and many more.
  • Page 11 DMX outputs when a DiGidot Tx Transmitter module is connected to the DiGi- dot C4. Art-Net IP address filter With this feature you can configure the DiGidot C4 to only listen to a specific IP Ad- dress as input. Signals from other IP Addresses will be ignored. Art-Net routing You can route any of the incoming Art-Net universes to the DMX or Art-Net outputs.
  • Page 12 The amount of input universes is not limited. Daisy chainable The two port ethernet switch with RJ45 bus allow the DiGidot C4 to be daisy chained. Daisy chaining more than 5 devices can cause network delays. Therefore we recom- mend to use a high-end switch to split the network load.
  • Page 13 Use the download link to get the file. You can upload the new firmware at http://10.254.254.254/fwupdate.htm. You can also change the ‘10.254.254.254’ in the URL into the IP Address of your DiGidot C4 device. It is also possible to upgrade or downgrade multiple devices simultaneously.
  • Page 14 The DiGidot C4 is not POE ready (Power Over Ethernet)! Applying POE will cause fatal damage to the DiGidot C4. Make sure that POE is turned off in your access point, router or network switch settings, before connecting the DiGidot C4 to your network.
  • Page 15 QR code, using a webcam or smart device cam. To register your product, you will require a DiGidot account. If you have created or signed into your DiGidot account with the User Interface of your DiGidot C4, your product may already be registered. To verify your registration, please log in and check your profile.
  • Page 16 If you have any doubts regarding the environmental circumstances of your application, please contact DiGidot prior to installation for further consultation Wall mounting Use the mounting holes on the underside of the housing to mount the C4 to install the device vertically or horizontally. (screws not included) Mounting examples: C4 Manual Version 1.0...
  • Page 17 DIN-rail mounting For 35 mm DIN-rail mounting use the DiGidot DIN-rail clip, art. No. 20902 (not includ- ed). Place the DIN-rail clip against the DIN-rail alignment marker on the DiGidot C4 housing and align the both mounting holes(see picture). Install the clip with the included 3 x 12 mm screw. When the DIN-rail clip is secured properly, you can install the device easily on a DIN-rail (see picture).
  • Page 18 Warning! Do not cover this device by any insulating material (fire hazard). The DiGidot C4 should not be placed in a hot environment or subjected to di- rect or indirect fire (explosion risk)! The DiGidot C4 should not be subjected to higher temperatures than their...
  • Page 19 INSTALLATION & WIRING The DiGidot C4 is not designed to power the LED lights but only to transmit signal/data to the LED lights/control IC’s. Aside of the DiGidot C4, a seperate power supply with properly rated output is required to power the LED lights. This is an example of how the DiGidot C4 is connected to a LED strip and a power supply.
  • Page 20 This option shows a combined output of SPI and DMX in or out. Please note that the SPI type (Data only or Data + Clock) determines how you need to connect the SPI signal(s). A Data + Clock signal always requires two outputs of the C4. 2 x DMX IN/OUT Max.
  • Page 21 Ethernet connection The DiGidot C4 has a built-in two port ethernet switch that allows multiple units to be daisy chained. Due to syncing, latency and performance reliability, we advise to keep the amount of daisy chained devices to a minimum. Depending on the overall net- work data load, the amount of daisy chainable devices might range from 3-8 devices.
  • Page 22 IMPORTANT: When using different power supplies. When you’re using different power supplies to power the DiGidot C4 and the LEDs, it is of utmost importance to equalize the ground potentials. Always connect grounds (DC-) of every power supply, connected to every product that is controlled by a single DiGiDot C4 controller, to each other.
  • Page 23 Each SPI Ground wire must be the same length as the Data wires per output, to prevent timing issues. Schema 3 Each SPI Ground wire must be the same length as the Data wires per output, to prevent timing issues. C4 Manual Version 1.0...
  • Page 24 Schema 5 Example of two SPI controlled LED strips with Tx and Rx modules, with one power supply. Each SPI Ground wire must be the same length as the Data wires per output, to prevent timing issues. C4 Manual Version 1.0...
  • Page 25 Schema 6 If DC Jack is connected than ground wire between PSU and C4 needs to be connected. C4 Manual Version 1.0...
  • Page 26 The DiGidot C4 Trigger input has following pinout: 1. Analogue trigger 3 2. Analogue trigger 2 3. Analogue trigger 1 4. Ground The optional DiGidot C4 Mini Jack cable has the following corresponding wires: 1. Red 2. White 3. Green 4. Black...
  • Page 27 To setup a wired computer connection, power up the DiGidot C4 and use a CAT5 RJ45 network cable to connect your DiGidot C4 to a computer. Plug the network cable in one of the RJ45 network ports of the DiGidot C4 and into the computers Ethernet/UTP port.
  • Page 28 Open your web browser and go to http://10.254.254.254. Configuring for DiGidot app access You can get wireless access to the DiGidot C4 fast and easy by following these 5 steps. There’s no special configuration required for your mobile device, this option works straight out of the box.
  • Page 29 Settings Network. You can change the device name optionally. Then change the IP Address and subnet mask of the DiGidot C4. The IP Address needs to be unique in your network to avoid IP conflicts. Network Settings Example Settings Device name (maximum 18 characters):...
  • Page 30 The DiGidot C4 has a built in web interface for configuration and triggering options. The interface can be accessed through a web browser by using a wired ether- net or Wi-Fi connection using the IP Address of the DiGidot C4 (default IP Address: http://10.252.252.254).
  • Page 31 Home Getting started In order get started quickly (Of in order to start using your DiGidot C4 controller(s) quickly...), and if you’re new to using the DiGiDot C4, we recommend using the Getting Started wizard from the Home menu. This wizard will guide you through all essential steps to get the DiGidot C4 up and running.
  • Page 32 Output action In case that there are multiple DiGidot C4 devices present in your network, you can as- sign which devices have to play a specific scene. Repeat The number of times that a scene is played.
  • Page 33 Triggers select ‘+’ to add a trigger select ‘Analog’ The Digidot C4 features three analog inputs that can be used to control various func- tions. There are four different ways to use the analog inputs: Push button or switch 0-10V dimmer*...
  • Page 34 The DiGidot C4 has a build-in clock to trigger various time based actions. Every time the interface loads, the browser/app time will be used to synchronise the DiGidot C4 time and date. Once the time and date are set, the on-board battery will keep the internal clock running.
  • Page 35 New triggers can be generated but you should create less triggers then before. Groups Home Groups This function allows you to create specific groups of DiGidot C4 controllers. This makes the configuration, identification, testing, restarting and organizing specific parts of your project or installation a lot easier. Add a group...
  • Page 36 Port This shows which ports have been configured as an output. If you click on a port, it will highlight the DiGidot C4 output until you click again. Actions Restart: will restart all devices that are currently selected and displayed on the Monitor page.
  • Page 37 To edit the output options, click the universe item. The DiGidot C4 is able to output one SPI protocol type simultaneously. If you select a SPI protocol for one port, this protocol will be used for all other output ports.
  • Page 38 100 skipped channels. Create segments This option allows to combine multiple channels or LEDs in order to become one pixel/ segment. It’s recommended to use this option only if the amount of control channels needs to be reduced. C4 Manual Version 1.0...
  • Page 39 Rearrange the LED color order, for example from RGB to BGR. You can select a few standard conversion profiles or create your own Custom profile. This might be re- quired for some LED products. The DiGidot C4 uses the default color order from the technical documentation of a selected IC/SPI protocol.
  • Page 40 Network broadcast range of your device In case you’ve changed any ethernet settings, click the ‘SAVE’ button to store them. Wi-Fi configuration The DiGidot C4 has a build-in Wi-Fi module which is able to make different types of wireless connections. Wi-Fi mode There are three options for Wi-Fi mode.
  • Page 41 This is the starting IP Address of the IP Address range that the DiGidot C4 can assign to other devices in the network. DHCP end IP Address This is the last IP Address of the IP Address range that the DiGidot C4 can assign to other devices in the network. Enable BSSID...
  • Page 42 Another option quick option to upgrade a DiGidot C4 is to use your smart device cam- era, scan the QR code on the DiGidot C4 device label and follow the the link to our website.
  • Page 43 Offline upgrade The DiGidot C4 can be upgraded at any time, even when it doesn’t have internet con- nection. In order to upgrade your device(s) follow these steps: Write down the MAC Addresses and serial number, listed on the product label.
  • Page 44 Make sure that the correct IC/SPI protocol is configured. Make sure that input and output matches the system setup. 7. Is your ground (DC-) from the DiGidot C4 output terminal connected to the ground of the LED product(s) power supply?
  • Page 45 In case your data cable between the DiGidot C4 and your first LED/IC is longer than 2 meters (6.5 ft), please reduce this length to an absolute minimum and check if this solves the problem.
  • Page 46 DiGidot C4 powered and properly connected to the Art-Net console/ computer. in order for the DiGidot C4 to be discoverable for any software, you need make sure that the network and one or more output(‘s) have been configured properly.
  • Page 47 If you can’t connect to the DiGidot C4 User Interface try to open the user interface by opening Google Chrome and typing 10.254.254.254 in the address bar and press enter.
  • Page 48 Can’t find your IC? The DiGidot C4 supports the most SPI protocols of all Art-Net to SPI controllers on the market. However technology is evolving rapidly and we’re not always the first to know when there’s new product IC chip with a new protocol on the market.
  • Page 49 Tip: Do not use excessive wire gauges to transfer data from the DiGidot C4 to the LED- products, this will only increase the risk of failures. Typically we recommend to use wire gauges for the data signal of 0.3-0.5 mm2 (20-22 AWG).
  • Page 50 How does the DiGidot C4 know what time it is? As soon as you load the DiGidot C4 interface, the browser time of your computer or mobile device is copied. The internal battery will keep track of time, until you load the interface again to synchronise time.
  • Page 51 ADDITIONAL INFORMATION Accessories DiGidot offers various accessories for your installation. Please contact your DiGidot reseller to order other following DiGidot products. Transmitting modules DiGidot Tx Art. no.: 20303 Operating voltage: 12-24 Vdc Converts four DMX TTL signals to four balanced DMX outputs...
  • Page 52 NOTE: Please note that this manual covers information for the DiGidot C4 Live and Extended controllers. In case of C4 Live controllers, some of the features may not be displayed in the user interface because they are limited to the Extended version only (refer to appropriate symbols in this manual).
  • Page 53 Compliances & EU declaration of Conformity This product is designed and produced by DiGidot BV, Amsterdam, The Netherlands. Hereby, DiGidot BV declares that the DiGidot C4 device complies with and was tested according to essential requirements of all relevant CE directives.
  • Page 54 Warranty conditions of DiGidot Technologies B.V. apply. Warranty claims have to be issued by email: support@digidot.eu. The RMA procedure can be found on our website. Disposal and recycling This product should not be disposed with other household waste.
  • Page 55 B.V. from liability and warranty obligations. Manual version This manual version may pre date the firmware version of your DiGidot C4 controller. Some functions may be different and new features may have been added. Please make sure that you’re using the manual that matches your firmware version: This manual is based on firmware Version Vxxxxxx, dating October 29th, 2018.
